Operation
Controls
Boiler Unit Controls
Controls on the boiler unit will usually not be needed during daily use of the machine.
Power Switch: Power for the entire machine is controlled by the switch on the left side of the
Boiler Unit. Caution: while this removes power from the unit power is still supplied to the
boiler unit from the main panel. Before working on or opening up the unit ensure power is
removed from the main panel before beginning.
Boiler Unit Controller: This is the main controller for temperature of all elements, steam
pressure, steam hoses, fill, and internal sensing. Note: For operation of the BCU refer to the
manual titled “BOILER UNIT CONTROLLER USE AND SETUP”.
User Interface
There are two main components of the User Interface used for operation, actuators, and UI
display. Display is discussed in detail in the section “UI DISPLAY”.
Actuators

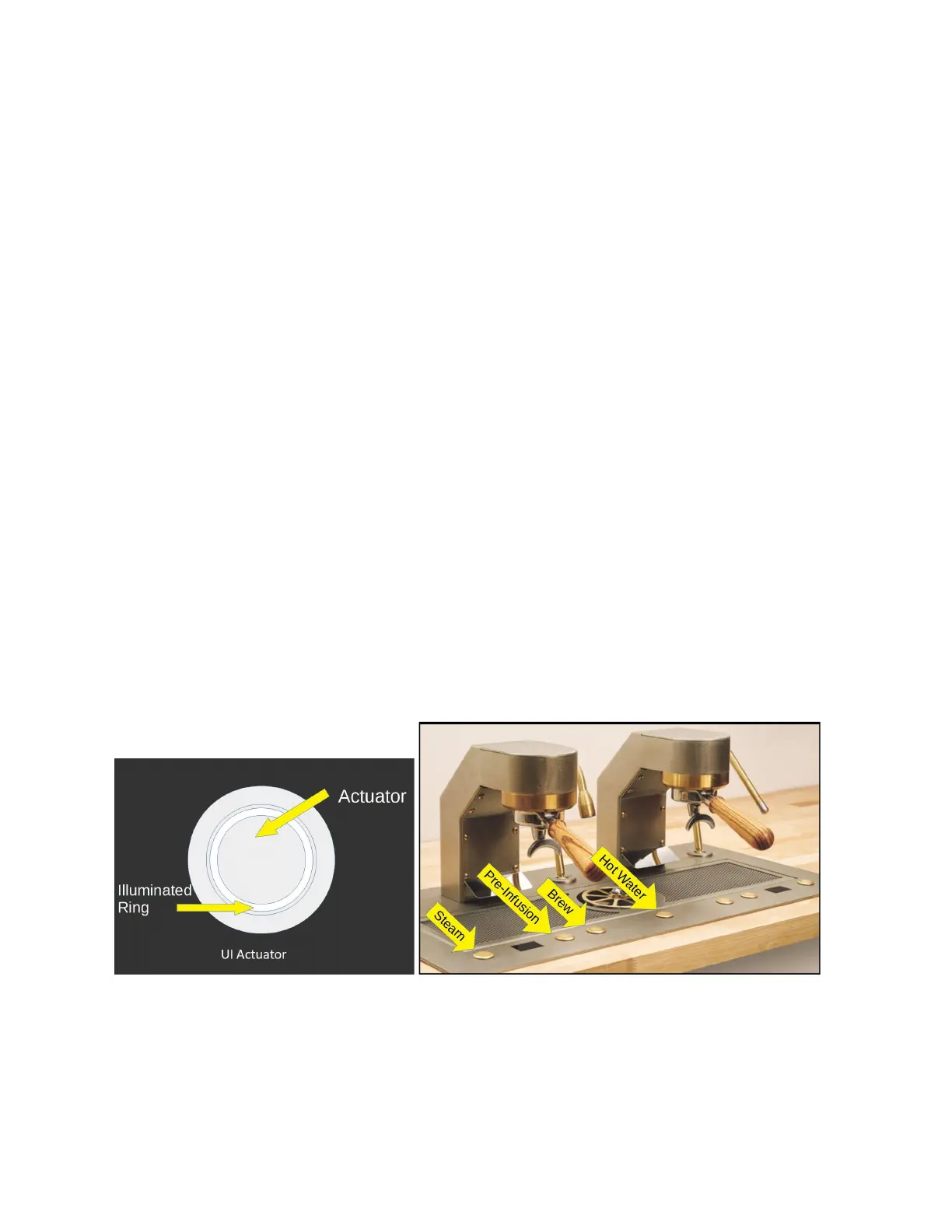

Actuator Placement on User Interface
UI Actuators control all the functions of the UI. They consist of an actuator, (the part you
push), and an illuminated ring that indicates mode of operation.
2023 Mavam User Manual V4.53 UC/F Page 10 of 28
