CD 30 ÷ 520
19

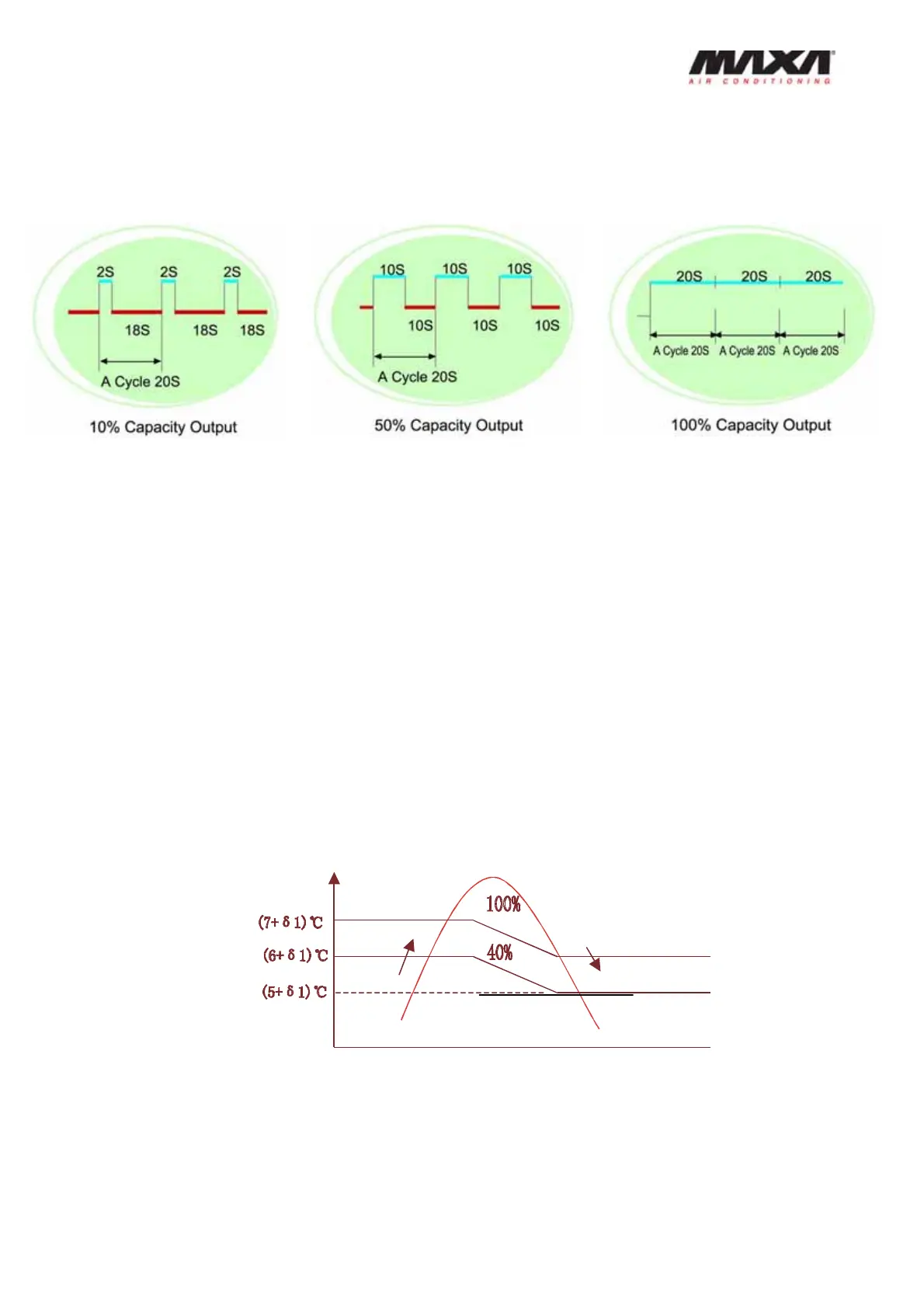

unloading state time is 16 sec.the rest can be deduced by analogy. The following is schematic
diagram when output capacity is respectively 10%, 50% and 100%.
8. The capacity control of the new modular chiller
(1) Capacity adjustment of the system.
Only the main unit can control the capacity output according to the temperature of total output
water (Ts).
1. Cooling capacity adjustment
Please preset Ts (Ts=7ˈ8ˈ9ˈ10ˈ11ˈ12ć). Ts is 7ć in default.
At first, the main unit will calculate¥1 (¥1=Ts-7), then adjust the capacity output
according to T˄T=5ˈ6ˈ7ć˅+¥1(T means the real temperature of total outlet water). The
detail of cooling capacity adjustment is as following chart:
OFF
Ts
Cooling capacity adustment
2. Heating capacity adjustment
Please preset Ts (Ts=45ˈ46ˈ47ˈ48ˈ49ˈ50ć), Ts is 45ć in default.˗At first, the main
T
Regolazione della potenza di raffreddamento
