MAXA R407C - Page 25

CD 30 ÷ 520
25

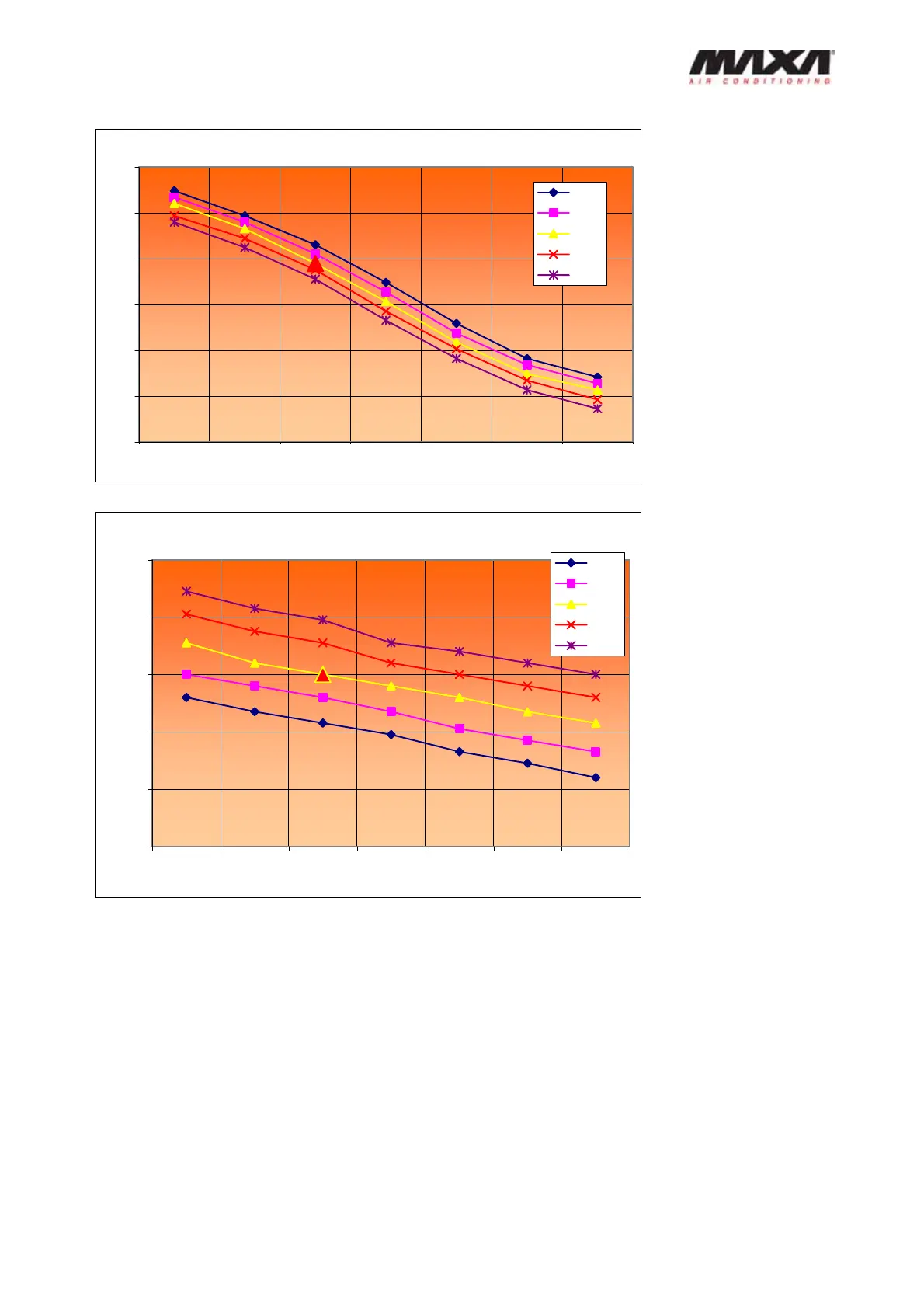

Heating capacity
30
40
50
60
70
80
90
13ºC 10ºC 7ºC 2ºC -2ºC -6ºC -10ºC
Ambient temperature
Kw
39ºC
42ºC
45ºC
48ºC
50ºC
Power input
15
17
19
21
23
25
13ºC 10ºC 7ºC 2ºC -2ºC -6ºC -10ºC
Ambient temperature
Kw
39ºC
42ºC
45ºC
48ºC
50ºC
8.3 Principle of Digital Scroll Compressor
Scroll system controls refrigerant output by the ratio of loading and unloading time of compressor,
and adjustment of loading time could be “stepless”. Furthermore, no need to change speed, and no
need to worry about lubrication failures, which realizes the wide-range capacity adjustment of
compressor. This can save the transformer cost and consumption, decrease the interference of
higher harmonic wave upon power transmission system, enlarge the work condition range of
compressor.
Summuruzing:
The diagram shows the capacity
progress among ambient
temperature and outlet water
temperature of 39°C, 42°C,
45°C, 48°C, 50°C
The diagram shows the power
input progress among ambient
temperature and outlet water
temperature of 39°C, 42°C,
45°C, 48°C, 50°C
