CD 30 ÷ 520
56
Wire controller

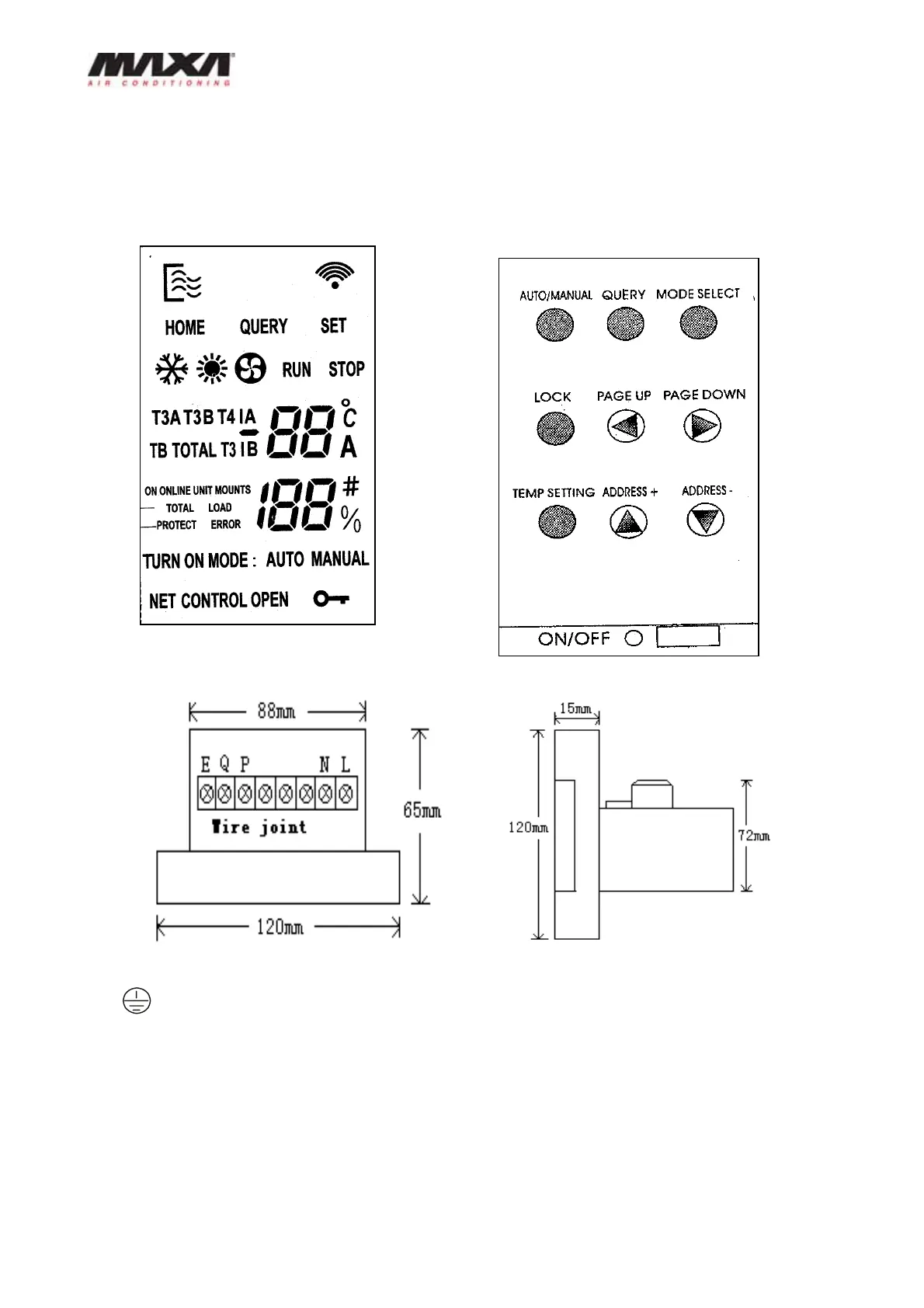

1. Outlook view
Figure of display (front view) Figure of buttons arrangement (front view)
Dimension:
Notice:
Wire controller earthing mark on the rear of the controller.
The P, Q, E terminals of main unit and wire controller are connected one-to-one.
Three-core wire is used as the electric wire, and the model is RVV-300/500 3×1.5mm
2
.
Dual-core shield wire is used as the communication wire, and the model is RVVP-300/300
2×0.5mm
2
.
Connect a 120ȍ resistance between P, Q port of 15
th
auxiliary unit.
Install the wire controller referring to the “dimension” above.
