CD 30 ÷ 520
7

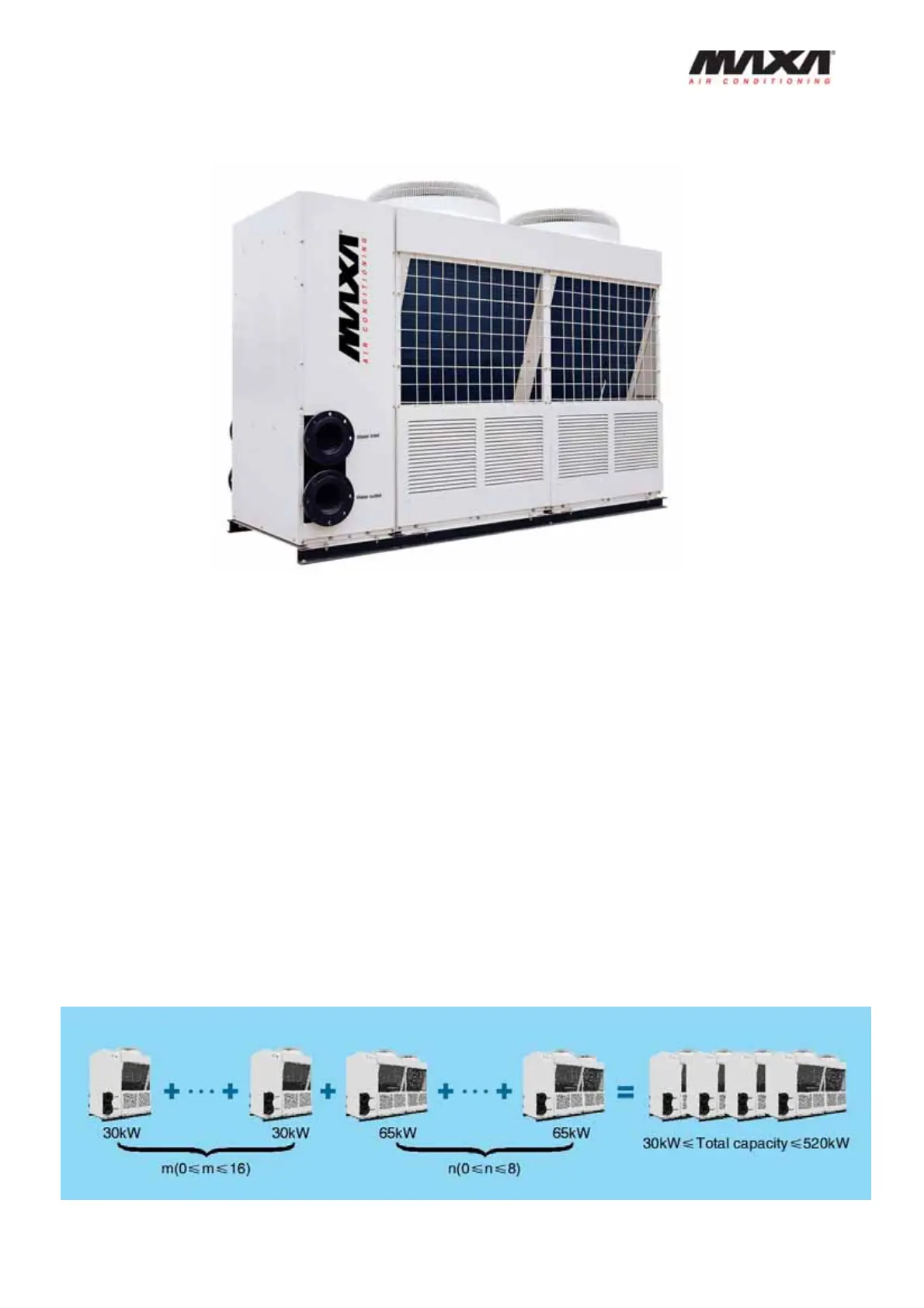

View of 65kW module (composed by two basic unit)
4. Principle of system
Basic unit “Main and Auxiliary” from 30kW of cooling capacity is equipped with two independent
refrigerant circuits, with two compressors (1 digital, 1 fixed), just one plate heat exchanger and just
one control main board.
Basic unit “Main” from 65kw is the melt of two basic units of 30kW, so it is composed by 4
independent refrigerant circuits, 4 compressors (1 digital, 3 fixed), 2 plate heat exchanger and 2
control main boards.
Basic unit “Auxiliary” from 65kw is the melt of two basic units of 30kW, so it is composed by 4
independent refrigerant circuits, 4 fixed compressors, 2 plate heat exchanger and 2 control main
boards.
