MAXA R407C - Page 8

CD 30 ÷ 520
8

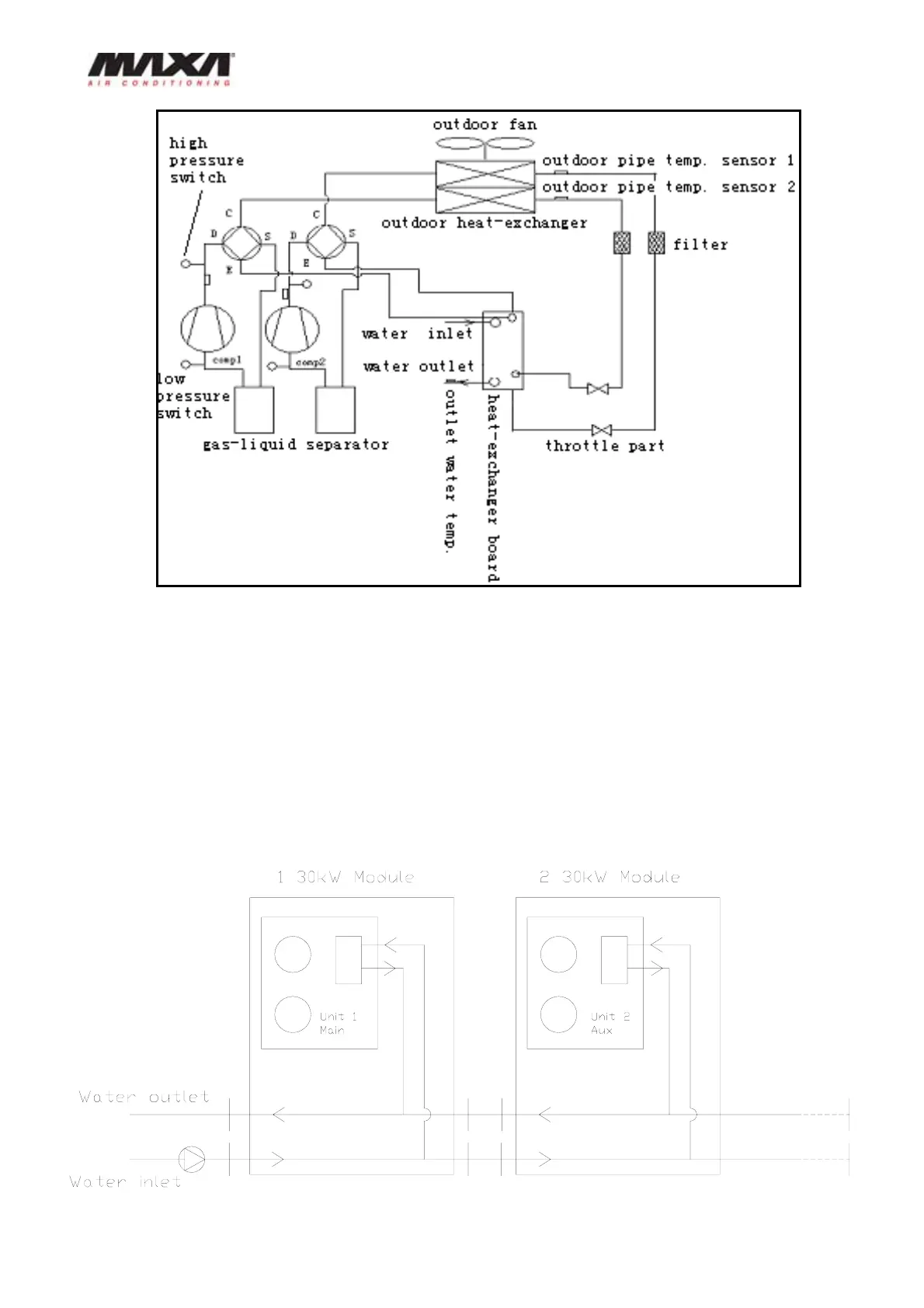

Numbers of modules can be assembled together into a large unit by connecting each own inlet &
outlet pipeline in series; can be connected together modules from 30kW and from 65kW of cooling
capacity until 16 units and 520kW of cooling capacity; here below you can see the connection
principle:
Two modules 30kW connected in series
