7. Use the ARROW keys to adjust the Servo-
Center Polarity to the opposite setting, as
indicated on line 4.
8. Press the ENTER key to store the change.
The system will exit the setup menus, and
return to the Operator Level.
3X.5.4, Hardlock Control
This procedure is used to set the Hardlock Control to ON or OFF. When the
Hardlock Control is set to ON, Hardlock is active in Manual mode, only.
Hardlock remains active while in the Manual Setup Menus.

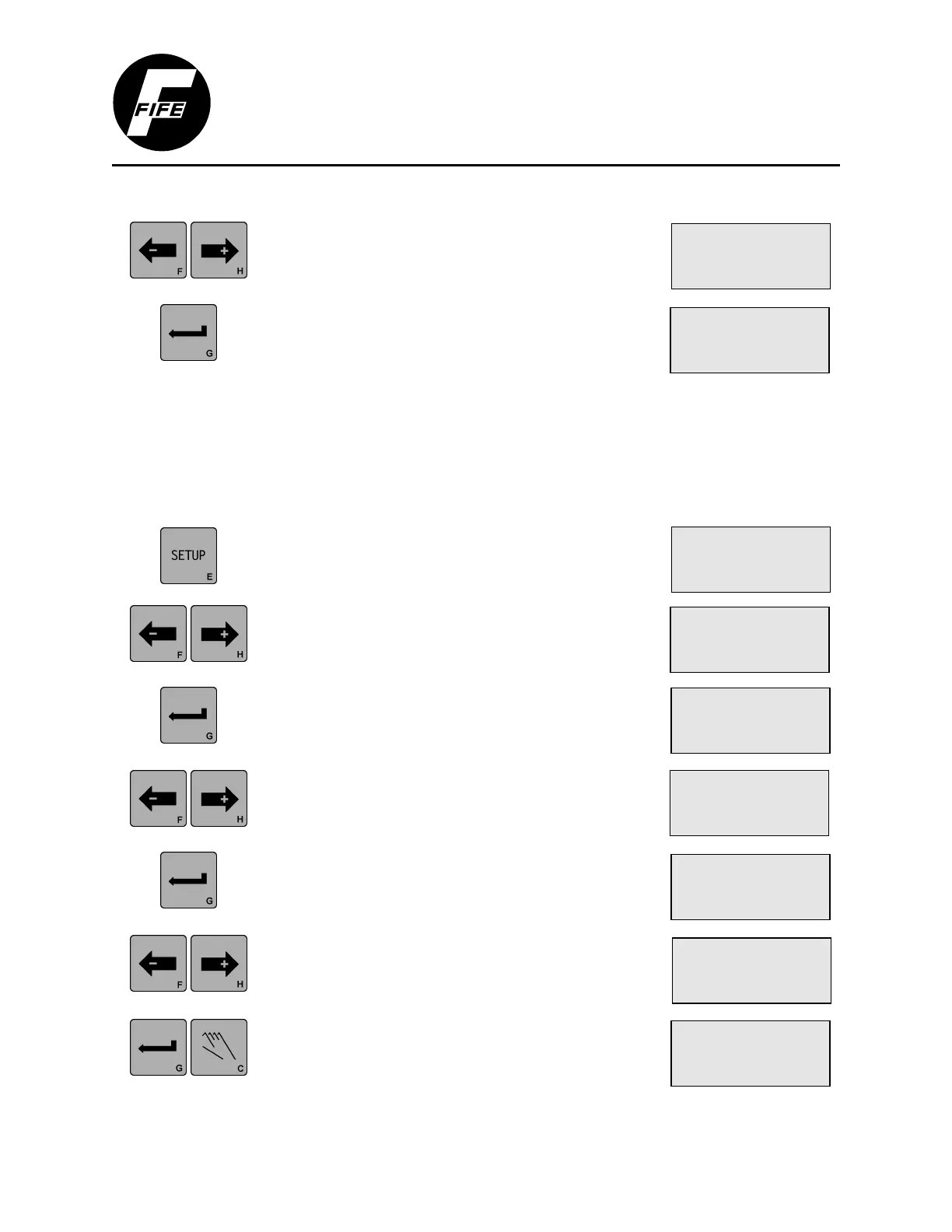

1. Press the SETUP key to enter the Setup
Menus. The SELECT MENU screen will be
displayed on the LCD Panel.
2. Use the ARROW keys to scroll until CUSTOM
is displayed on line 4.
3. Press the ENTER key to enter the Custom
Menus. The ASC CONTROL menu will be
displayed.
4. Use the ARROW keys to scroll until
HARDLOCK CONTROL is displayed on line 3.
The current setting is displayed on line 4.
5. Press the ENTER key to enter the
HARDLOCK CONTROL menu. The current
setting will begin flashing.
6. Use the ARROW keys to select the desired
setting.
7. Press the ENTER key to store the new
HARDLOCK setting, or press the MANUAL
key to abort the change. The system will exit
the setup menus, and return to the Operator
Level.
× 3A.1.7.1
SETUP (MAN)
~ƒ POLARITY
-
3A
MANUAL
× -ãããããáÜÜÜÜ+
× 3A.5.4
SETUP (MAN)
HARDLOCK CONTROL
OFF
× 3A.5.4.1
SETUP (MAN)
HARDLOCK CONTROL
OFF
3A
MANUAL
× -ãããããáÜÜÜÜ+
× 3A.5.4.1
SETUP (MAN)
HARDLOCK CONTROL
ON
× 3A.5.1
SETUP (MAN)
ASC CONTROL
OFF
× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.5
SETUP (MAN)
SELECT MENU
CUSTOM
