DP-20 WEB GUIDE CONTROLLER ADDITIONAL USER MANUAL INSTRUCTIONS
05-14-2004 DP-20 WEB GUIDE CONTROLLER Figure Sheet 1-875
2
2-4

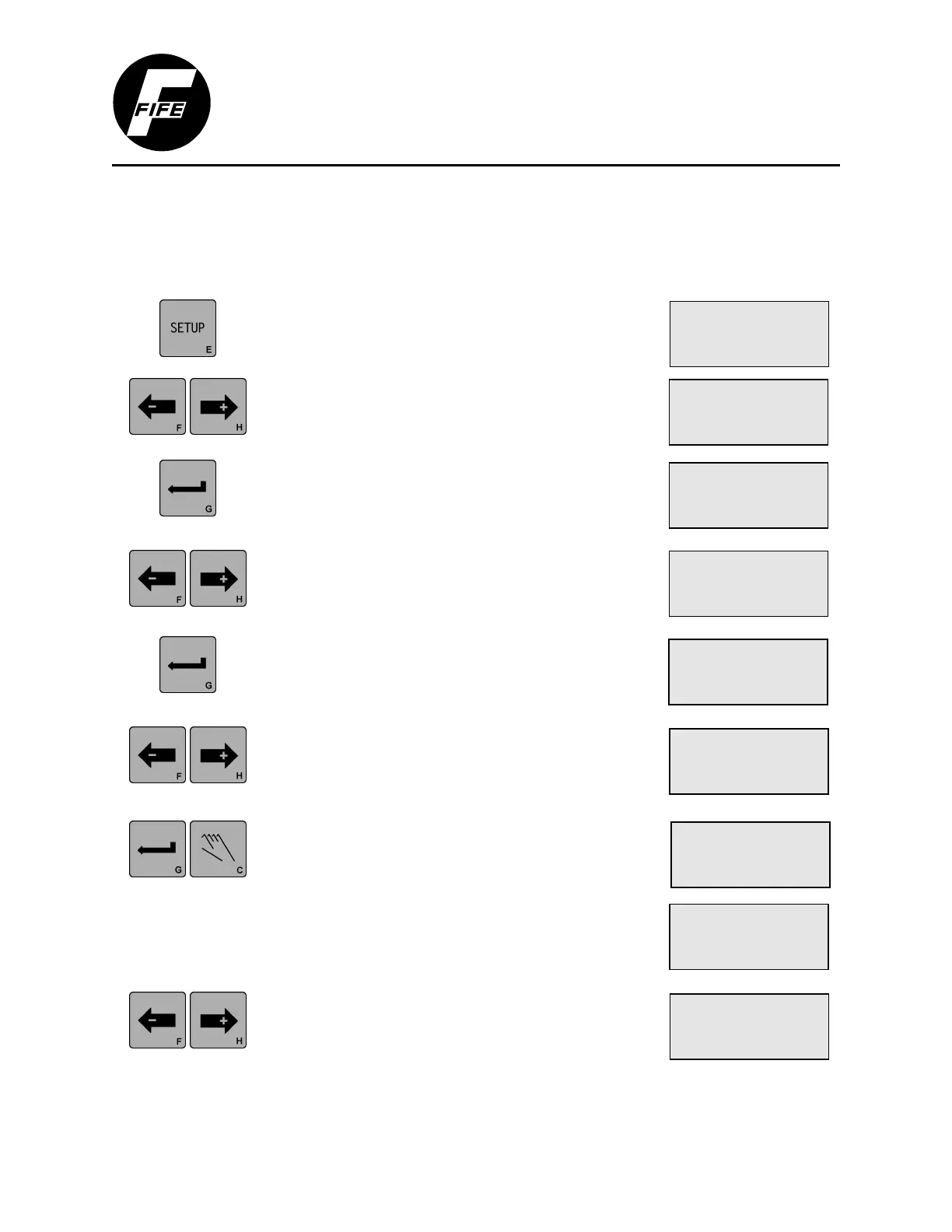

3X.5.6, Set Stroke Limits
This procedure is used to set the Stroke Limits. If the Stroke Limits are set to
ON in the Stroke Limits menu, these limits are active in all modes.
1. Press the SETUP key to enter the Setup
Menus. The SELECT MENU screen will be
displayed on the LCD Panel.
2. Use the ARROW keys to scroll until CUSTOM
is displayed on line 4.
3. Press the ENTER key to enter the Custom
Menus. The ASC CONTROL menu will be
displayed.
4. Use the ARROW keys to scroll until SET
STROKE LIMIT is displayed on line 3. The
current Stroke Limit values are displayed on
line 4.
5. Press the ENTER key to enter the SET
STROKE LIMIT menu. Depending on the
current position of the guide, one of the Stroke
Limit values will begin flashing.
6. Use the ARROW keys to move the guide to
the desired location for one of the Stroke
Limits. The corresponding limit value will follow
the guide movement.
7. Press the ENTER key to switch to the
opposite Stroke Limit value (this value is
automatically set symmetrical to the first
value), or press the MANUAL key to abort the
procedure. If the MANUAL key is pressed, any
changes to the Stroke Limit values will be
discarded and the system will exit the setup
menus, and return to the Operator Level.
8. If the ENTER key was pressed in the previous
step and symmetrical values are desired, skip
this step and continue with the next step.
Otherwise, use the ARROW keys to move the
guide to the desired position on the opposite
side.
× 3A.5.6
SETUP (MAN)
SET STROKE LIMIT
-100% +100%
× 3A.5.6.1
SETUP (MAN)
SET STROKE LIMIT
-100%ãããããã+100%
× 3A.5.6.1
SETUP (MAN)
SET STROKE LIMIT
-80%ãããããã+100%
× 3A.5.1
SETUP (MAN)
ASC CONTROL
OFF
3A
MANUAL
× -ãããããáÜÜÜÜ+
× 3A.5.6.1
SETUP (MAN)
SET STROKE LIMIT
-80%ãããããã +80%
× 3A.5.6.1
SETUP (MAN)
SET STROKE LIMIT
-80%ãããããã +90%
× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.5
SETUP (MAN)
SELECT MENU
CUSTOM
To Next Page
