05-14-2004 DP-20 WEB GUIDE CONTROLLER Figure Sheet 1-875
2
2-5
9. Press the ENTER key to store the new
STROKE LIMITS, or press the MANUAL key
to abort the changes. The system will exit the
setup menus, and return to the Operator
Level.
3X.5.5, Stroke Limits
This procedure is used to set the Stroke Limits to ON or OFF. When the
Stroke Limits are set to ON, they are active in all modes.
1. Press the SETUP key to enter the Setup
Menus. The SELECT MENU screen will be
displayed on the LCD Panel.
2. Use the ARROW keys to scroll until CUSTOM
is displayed on line 4.
3. Press the ENTER key to enter the Custom
Menus. The ASC CONTROL menu will be
displayed.
4. Use the ARROW keys to scroll until STROKE
LIMITS is displayed on line 3. The current
setting is displayed on line 4.
5. Press the ENTER key to enter the STROKE
LIMITS menu. The current setting will begin
flashing.
6. Use the ARROW keys to select the desired
setting.
7. Press the ENTER key to store the new
STROKE LIMITS setting, or press the
MANUAL key to abort the change. The system
will exit the setup menus, and return to the
Operator Level.

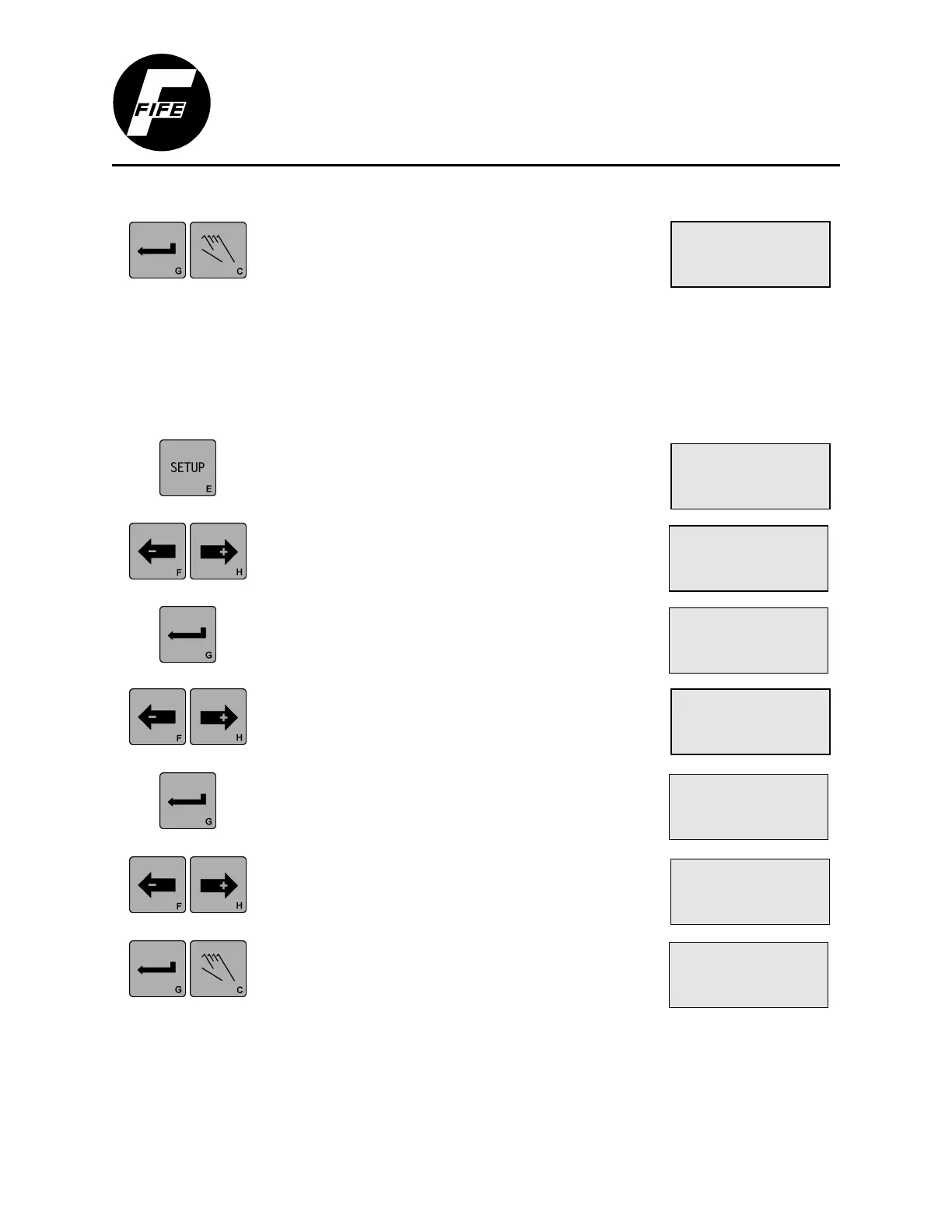

3A
MANUAL
× -ãããããáÜÜÜÜ+
× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.5
SETUP (MAN)
SELECT MENU
CUSTOM
× 3A.5.1
SETUP (MAN)
ASC CONTROL
OFF
× 3A.5.5
SETUP (MAN)
STROKE LIMITS
OFF
× 3A.5.5.1
SETUP (MAN)
STROKE LIMITS
OFF
× 3A.5.5.1
SETUP (MAN)
STROKE LIMITS
ON
3A
MANUAL
× -ãããããáÜÜÜÜ+
