DP-20 WEB GUIDE CONTROLLER ADDITIONAL USER MANUAL INSTRUCTIONS
05-14-2004 DP-20 WEB GUIDE CONTROLLER Figure Sheet 1-875
2
2-1
2 SYSTEM SETUP
Setup Procedures for Servo Center, Hardlock, and Stroke Limits
When setting up the system, both Hardlock and Stroke Limits must be turned OFF. To verify
that they are turned off, use the “3X.5.4, Hardlock Control” procedure and the “3X.5.5, Stroke
Limits” procedure, which are located in this document. Once it has been verified that the
Hardlock and Stroke Limits are both turned off, perform the following procedures in the order
listed to setup the system. Verify that the DP-20 is in Manual mode before beginning each of
the following procedures.
3X.1.4, Calibration, Servo-Center Sensor
This procedure must be performed before Hardlock and Stroke Limits
can be used.

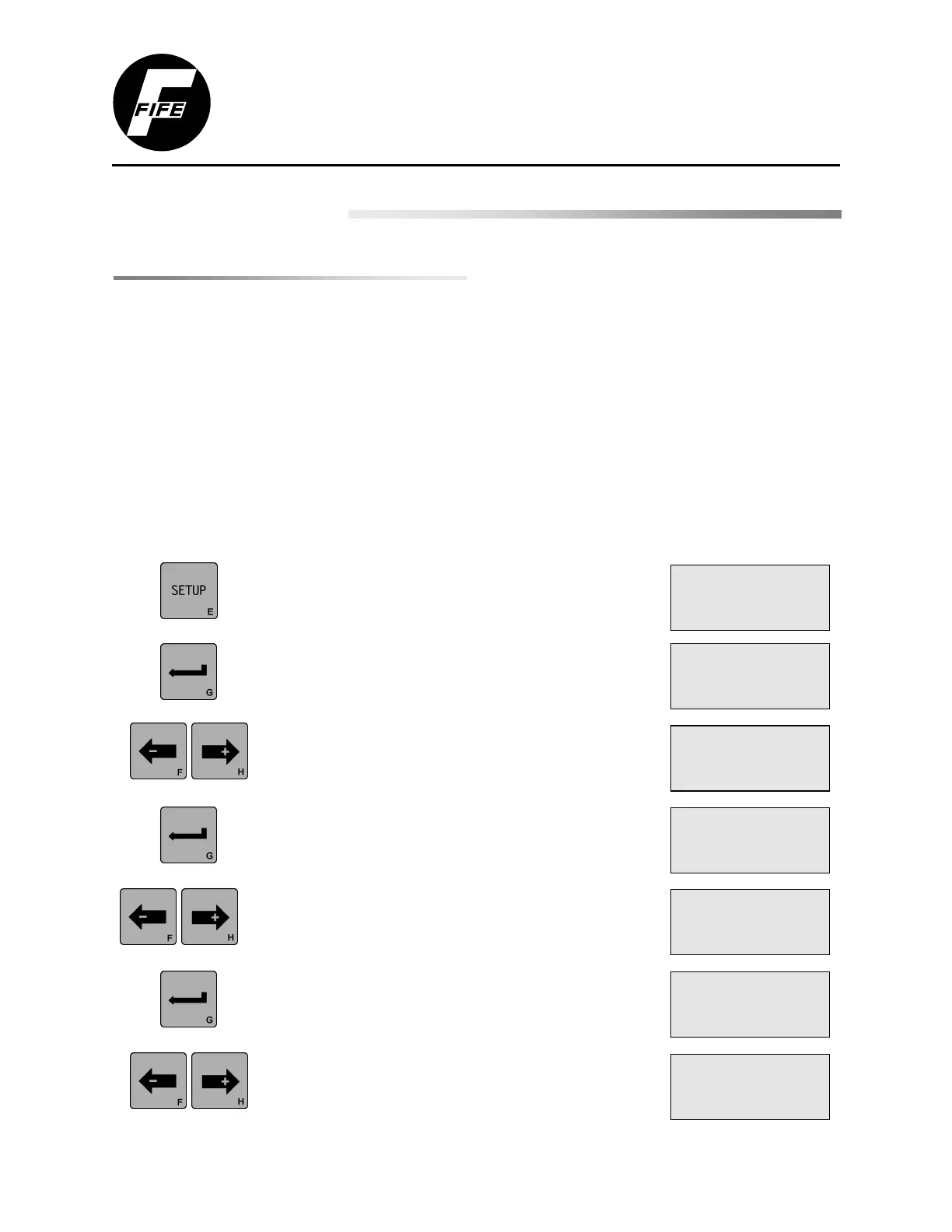

1. Press the SETUP key to enter the Setup
Menus. The SELECT MENU screen will be
displayed on the LCD Panel.
2. Press the ENTER key to enter the BASIC
Menus. The GAIN menu will be displayed.
3. Use the ARROW keys to scroll until
CALIBRATION is displayed on line 3.
4. Press the ENTER key to enter the
CALIBRATION menu. SELECT SENSOR will
be displayed on line 3.
5. Use the ARROW keys to select the Servo-
Center Sensor (X2).
6. Press the ENTER key to begin the calibration.
UNCOVER SENSOR will be displayed on line
2.
7. Use the ARROW keys to move the guide to
one of its mechanical stops. The sensor signal
is displayed on line 3.
× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.1.1
SETUP (MAN)
GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
× 3A.1.4
SETUP (MAN)
CALIBRATION
× 3A.1.4.1
SETUP (MAN)
SELECT SENSOR
(X5)
~ƒ 3F.1.4.1
SETUP (MAN)
SELECT SENSOR
(X2)
~ƒ 3F.1.4.2
UNCOVER SENSOR
-ÜÜÜÜÜÜÜÜÜÜ+ 0%
~ƒ 3F.1.4.2
UNCOVER SENSOR
-ÜÜÜÜÜÜÜÜÜÜ+ 0%
