Connector and Header Locations

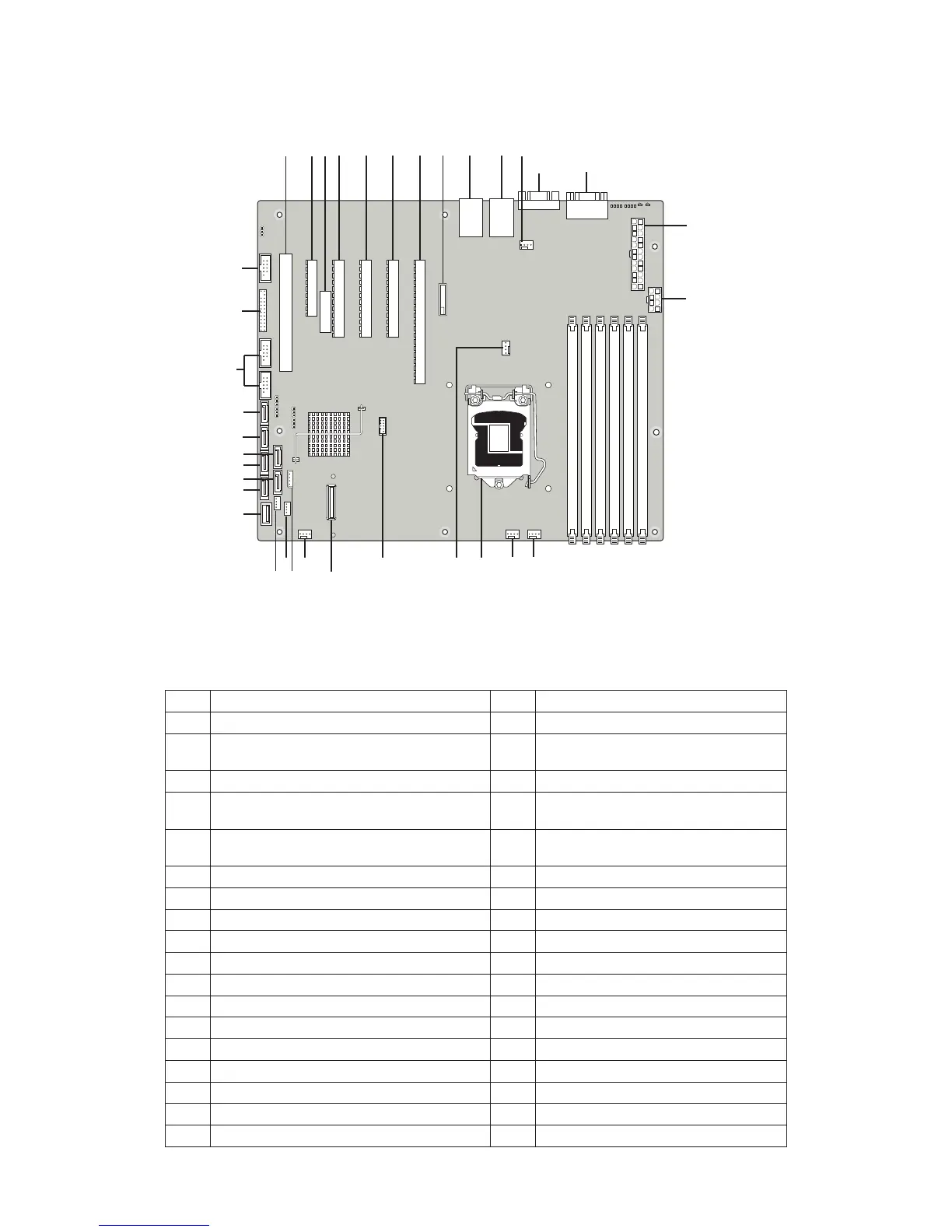

Figure 3 shows the approximate location of the major components on board.
Figure 3. Board Connector and Component Locations
Table 3. Board Connectors and Components
Label Description Label Description
A. Slot 1, 32 Mbit/33 MHz PCI S. CPU fan connector
B.
Slot 2, PCI Express Gen1 x1
(x4 connector, optional)
T. USB SSD connector
C. Intel RMM3 connector (optional) U. SAS module connector (optional)
D. Slot 3, PCI Express Gen1 x4
(PCI Express Gen2 compliant)
V. System fan 1
E.
Slot 4, PCI Express Gen2 x4
(x8 connector, optional)
W. IPMB
F.
Slot 5, PCI Express Gen2 x8 (x8 connector)
X. SATA_SGPIO
G.
Slot 6, PCI Express Gen2 x8 (x16 connector)
Y. HSBP
H. CMOS battery Z. Type A USB port
I. Ethernet and dual USB combo AA. SATA port 0
J. Ethernet and dual USB combo BB. SATA port 3
K. System fan 4 CC. SATA port 1
L. Video port DD. SATA port 4
M. External serial port EE. SATA port 2
N. Main power connector FF. SATA port 5
O. CPU power connector GG. USB connectors
P. System fan 3 HH. Front panel connector
Q. System fan 2 II. Internal serial port
R. CPU socket
