Maxview MXL020HD - LNB Cable Installation Diagram; Coaxial Cable Preparation Visuals

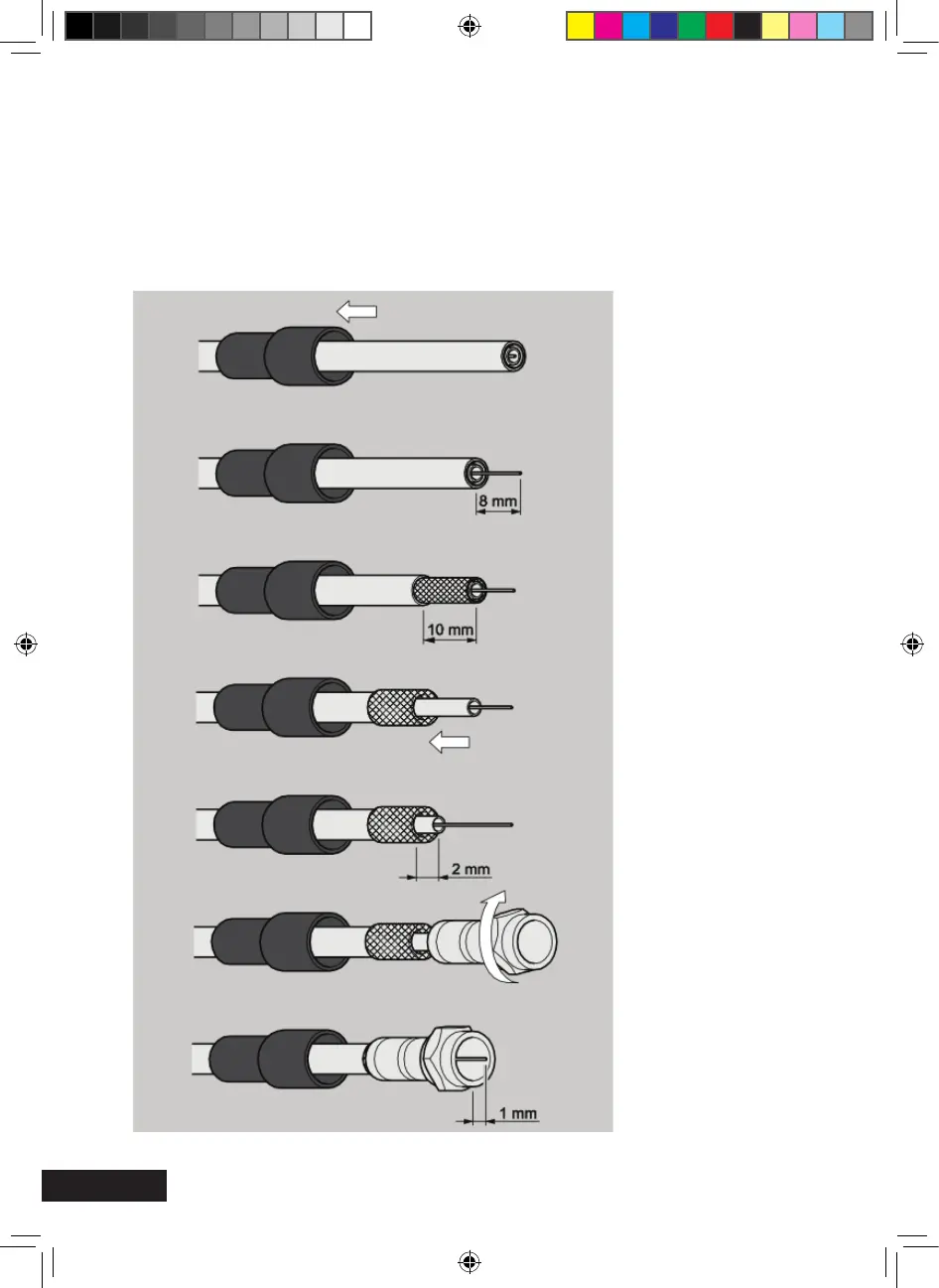

LNB cable installation diagram
Page 8
CAUTION!
The wire netting must not protrude from the back of the connector end.
> Cut the inner core with a cable cutter in such a manner that it projects maximum
1mm from the connector.
