MAYEKAWA 8M - List of Tools for Disassembly

2202G1JE-DA-M-N_2010.01.
7 Related Document
Reciprocating Compressor M Series 7.3 List of Tools for Disassembly
7-13
7.3 List of Tools for Disassembly

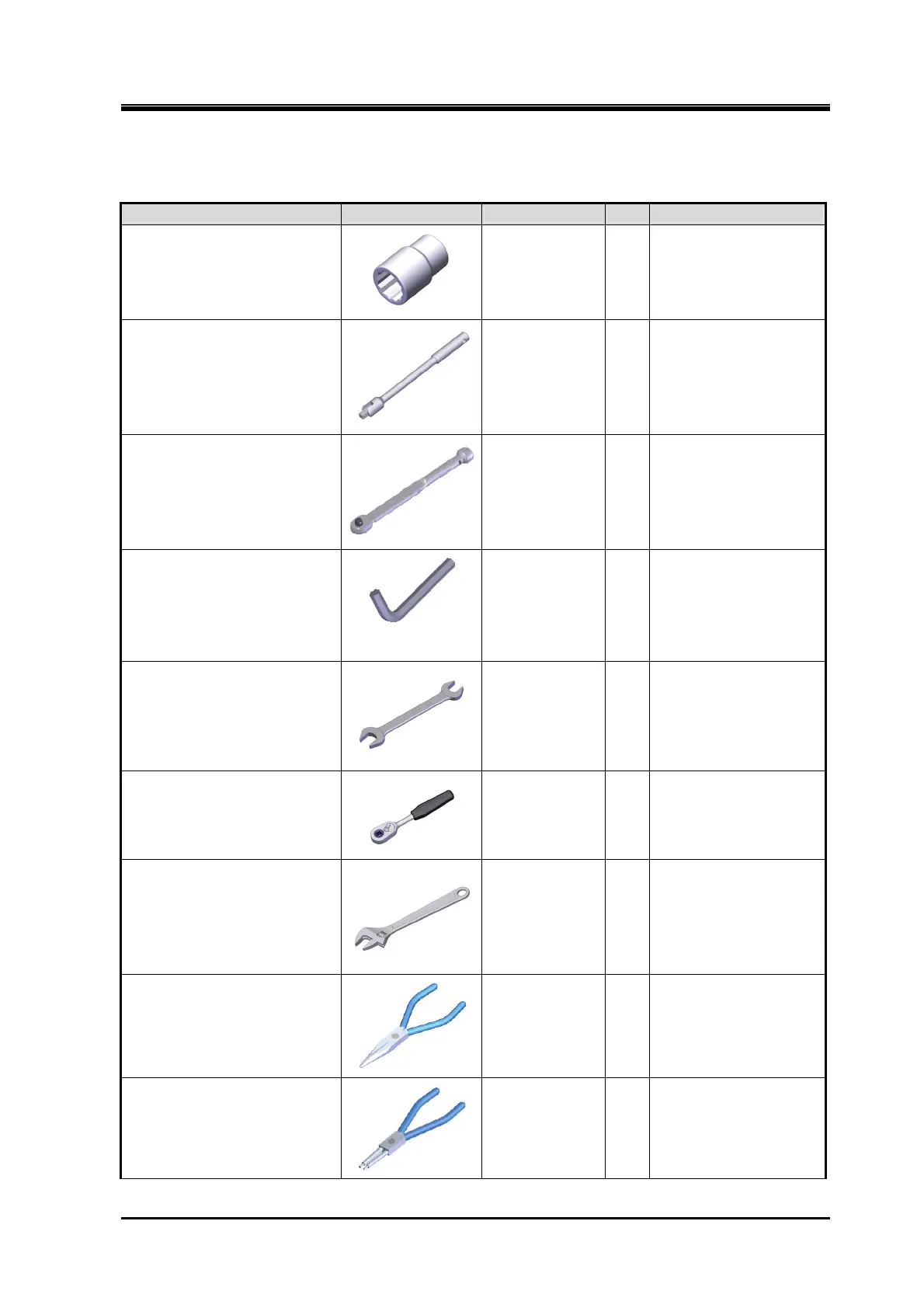

Table 7-3 List of Tools for Disassembly
Tool name Simplified diagram Specification/Size Qty. Remarks
Socket wrench*1 10 mm
13 mm
17 mm
19 mm
24 mm
1
1
1
1
1
12.7 square drive
Spinner handle
*1
300 mm
1
12.7 square drive
Torque wrench
*1
50 N•m
100 N•m
200 N•m
1
1
1
12.7 square drive
Hexagon wrench
*1
3 mm
5 mm
6 mm
8 mm
10 mm
14 mm
1
1
1
1
1
1
Spanner
*1
10/13 mm
17/19 mm
1
1
Ratchet handle
*1
1/4” 1
Adjustable wrench
*1
250 mm
1
Needle-nose pliers
*1
165 mm For E-ring
External snap ring pliers
*2
200 mm
1
For snap ring H45
