5 Maintenance
Reciprocating Compressor M Series 5.5 Disassembly/Assembly
5-13
5.5.2 Suction/Discharge Area
Steps Description
Part
No.
Steps Description
Part
No.
1
Shut–off valve, suction side
173 6
Thermometer, discharge side
198
7
Discharge manifold
168
(Refer to "Attentions for Removing the
Suction/Discharge Shut–off Valve".)
(Refer to "Attentions for Removing the
Discharge Manifolds".)
(Refer to "Attentions for Attaching the
Suction/Discharge Shut–off Valve".)
2
Gasket, shut-off valve, suction flange
174
(Refer to "Attentions for Attaching the
Discharge Manifolds".)
3
Shut–off valve, discharge side
182 8
Gasket, discharge manifold
169
9
Suction filter cover
161
(Refer to "Attentions for Removing the
Suction/Discharge Shut–off Valve".)
10
Gasket, suction filter cover
162
11
Suction filter
154
(Refer to "Attentions for Attaching the
Suction/Discharge Shut–off Valve".)
12
"O"ring, suction filter
154-1
13
Thermometer, Suction side
2004
Gasket, shut-off valve, discharge
flange
183
5
Safety valve
213

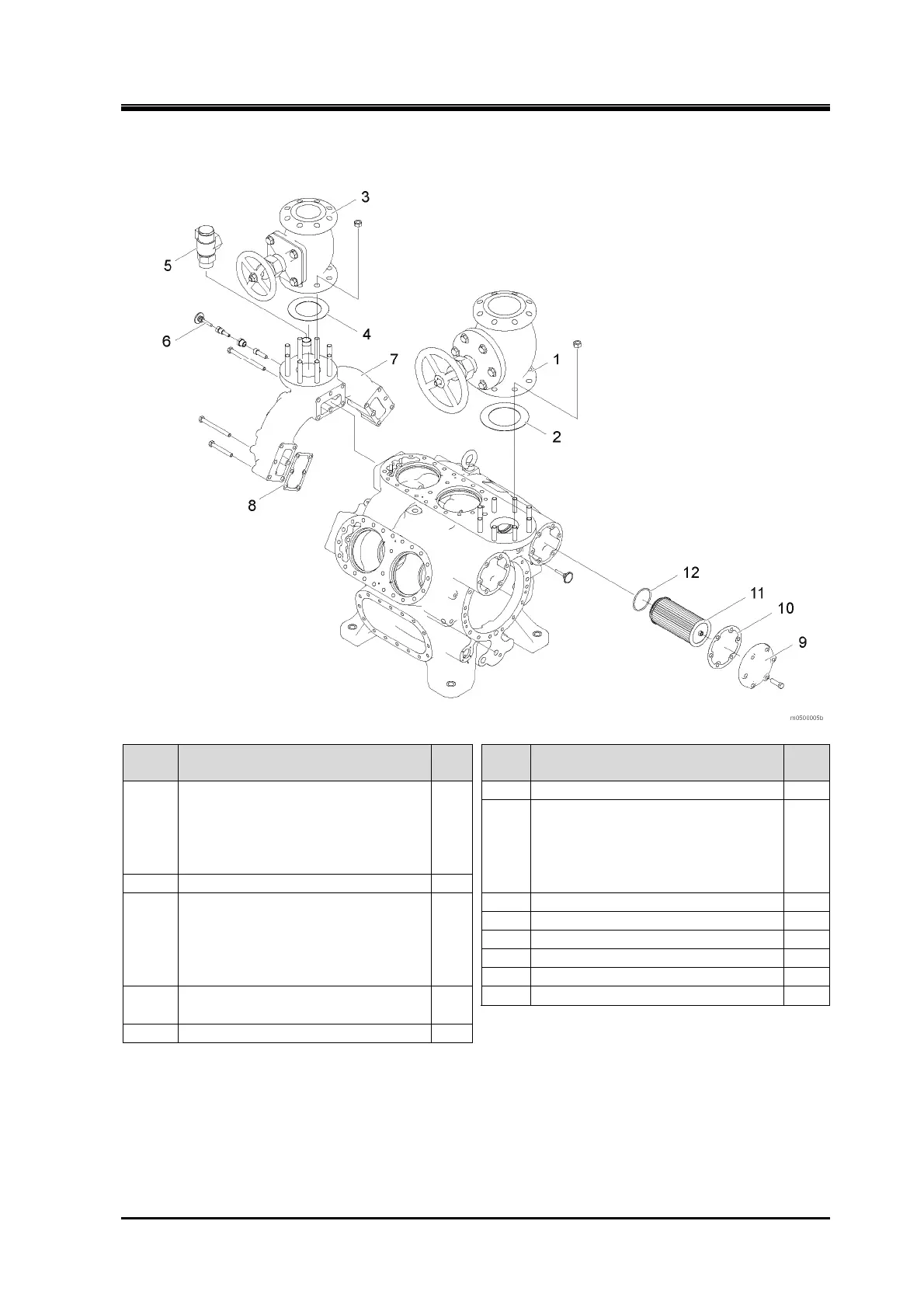

1. Remove the parts in the order shown in the figure.
2. Attach the parts in the reverse order of removal.
