5 Maintenance
Reciprocating Compressor M Series 5.5 Disassembly/Assembly
5-14
5.5.2.1 Attentions for Removing the Suction/Discharge Shut–off Valve
The suction/discharge shut–off valve weighs 46 kg/31 kg. Handling them
inappropriately may cause injury. Remove the suction/discharge shut–off valve
in an appropriate manner with at least one other person.
5.5.2.2 Attentions for Attaching the Suction/Discharge Shut–off Valve
The suction/discharge shut–off valve weighs 46 kg/31 kg. Handling them
inappropriately may cause injury. Attach the suction/discharge shut–off valve in
an appropriate manner with at least one other person.
5.5.2.3 Attentions for Removing the Discharge Manifolds
The discharge manifolds weigh 73 kg (8M/62M)/62 kg (6M)/50 kg (4M). Handling
them inappropriately may cause injury. Remove the discharge manifolds in an
appropriate manner with at least one other person.

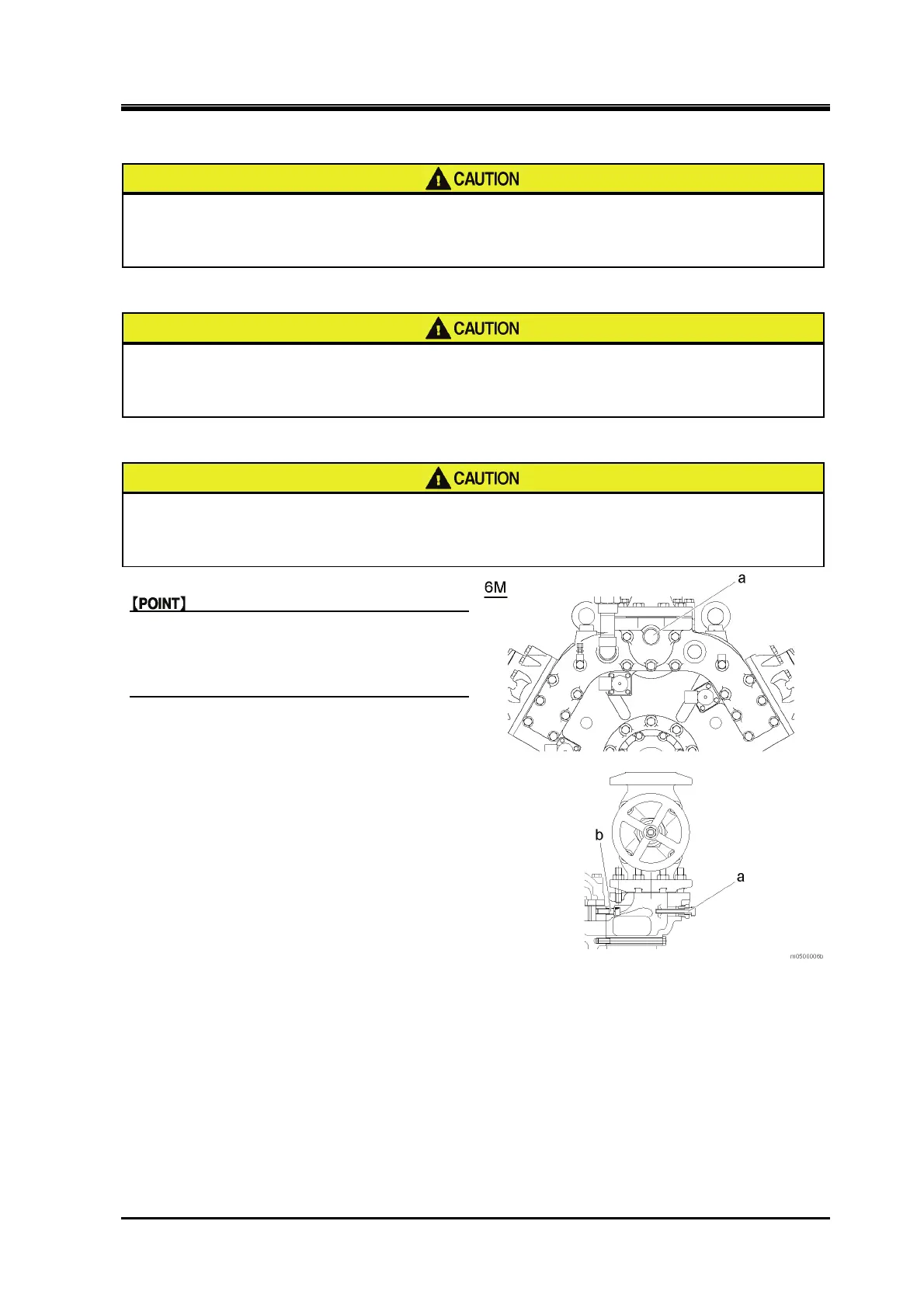

For 6M, the discharge manifold hexagon
head screw (b) is attached also to the back
of the discharge side thermometer (a)
attachment hole.
