2202G1JE-DA-M-N_2010.01.
5 Maintenance
Reciprocating Compressor M Series 5.5 Disassembly/Assembly
5-15
5.5.2.4 Attentions for Attaching the Discharge Manifolds
The discharge manifolds weigh 73 kg (8M/62M)/62 kg (6M)/50 kg (4M). Handling
them inappropriately may cause injury. Attach the discharge manifolds in an
appropriate manner with at least one other person.

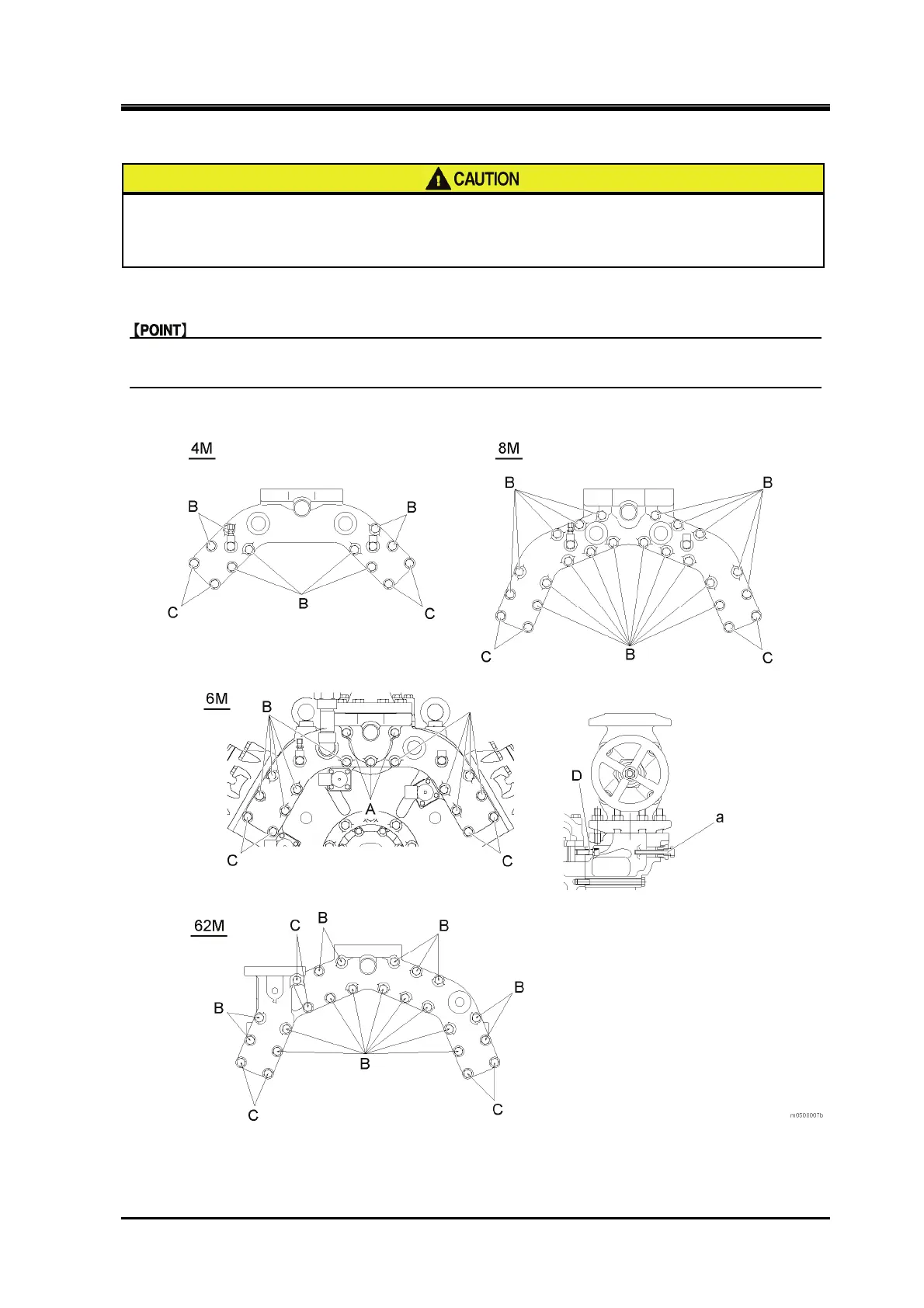

1. There are four types of the discharge manifold hexagon head screw. The attachment positions for each type
are as shown in the figure.
For 6M, attach the discharge manifold hexagon head screw D by passing it through the
discharge side thermometer (a) attachment hole.
