MAYEKAWA 8M - Centering of the Compressor;Driving Machine and Attachment of the Direct Coupling

2202G1JE-DA-M-N_2010.01.
3 Installation
Reciprocating Compressor M Series 3.2 Installation Works
3-10
3.2.5.5 Centering of the Compressor/Driving Machine and Attachment of the
Direct Coupling

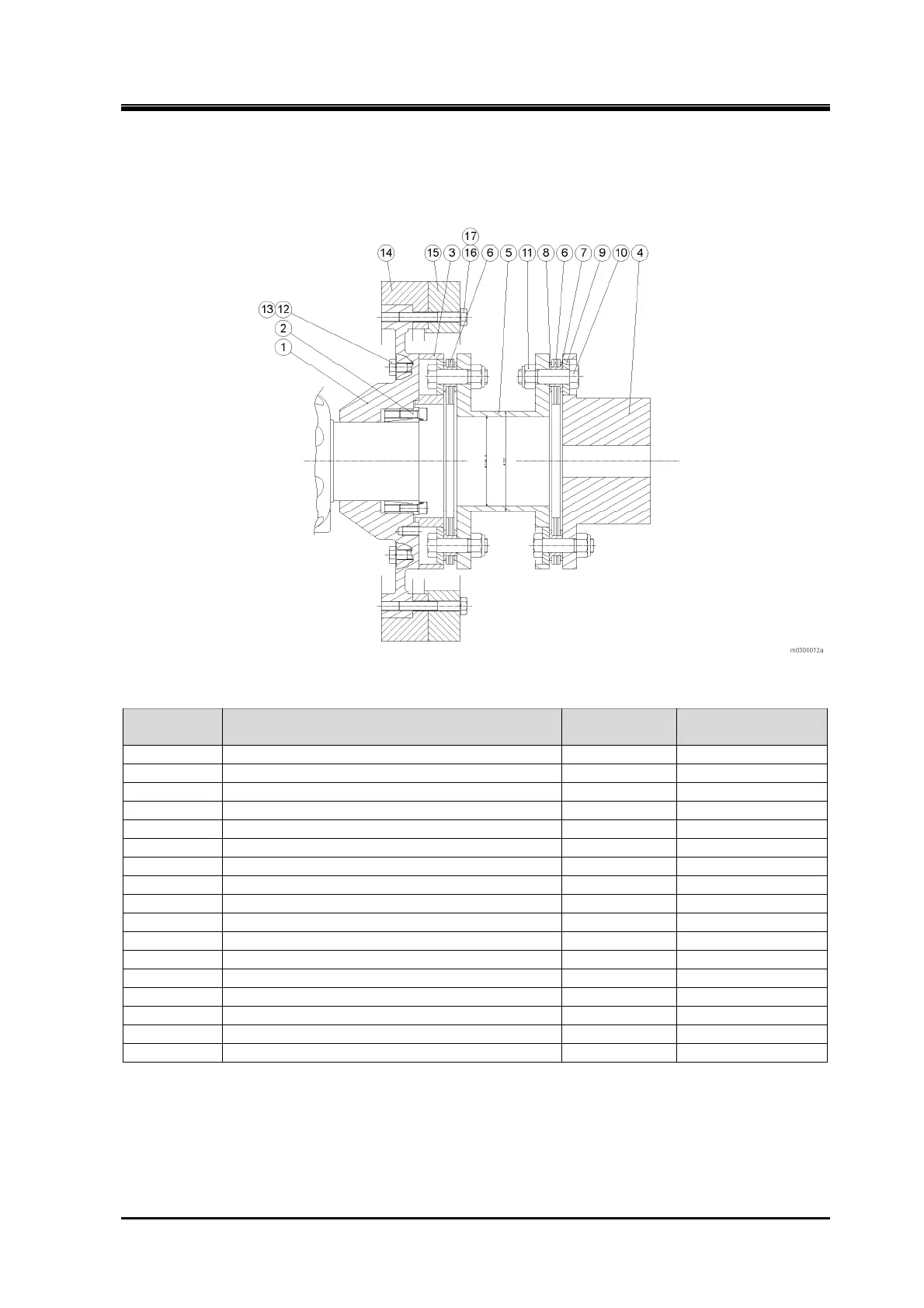

 Section view for the direct coupling
Fig. 3-5 Section view for the direct coupling
Part Number Part name Material Remarks
1 Flywheel
2 Mechlock
3 Hub (compressor side)
4 Hub (motor side)
5 Spacer
6 Coupling/insert
7 Bushing
8 Washer
9 Overload washer
10 Bolt M18 × 1.5
11 Hexagon nut M18 × 1.5
12 Bolt M12 × P1.25 × L60
13 Spring washer For M12
14 Sub ring 1 Common to B type
15 Sub ring 2 Common to B type
16 Sub ring fastening bolt M12 × L80 – 8 8
17 Spring washer For M12
