5 Maintenance
Reciprocating Compressor M Series 5.5 Disassembly/Assembly
5-27
5.5.4.7 Attentions for Attaching the Suction Plate Valve/Suction Valve Spring

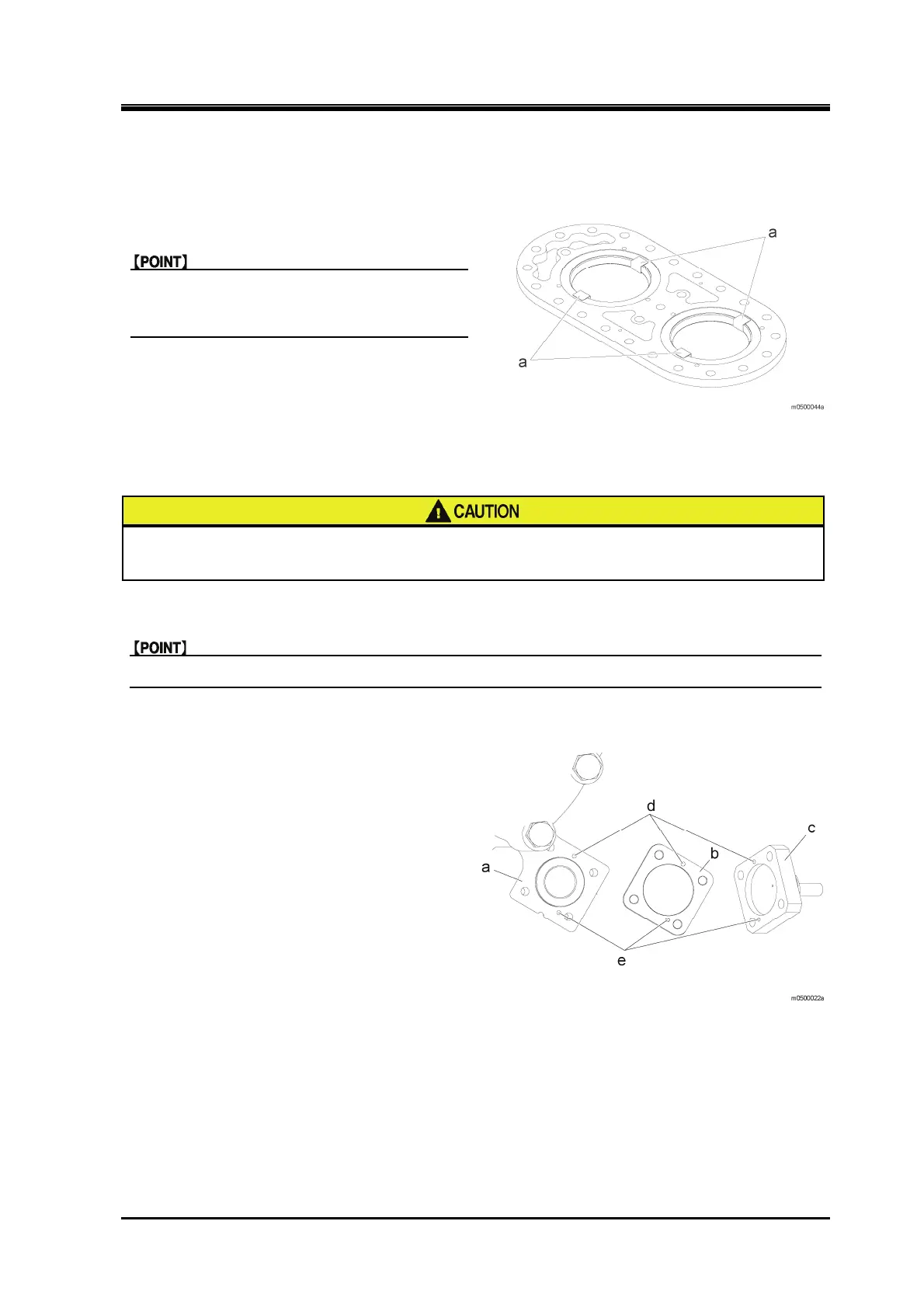

1. Retain the suction plate valve and suction valve
spring to the valve plate using clips (a).
Align the suction valve spring (b) with the
valve plate (c) in the direction shown in the
figure.
2. After attaching the valve plate, remove the clips.
5.5.4.8 Attentions for Attaching the Valve Plate
Dropping of the valve plate may cause injury or damage to the compressor.
Always attach the stud bolts before performing the work.
1. After attaching the stud bolts into the head cover screw holes for two sections at the top, attach the valve
plate.
After attaching the head cover, remove the stud bolts.
5.5.4.9 Removal of the Spacer (4M/6M/8M/62M)
1. Loosen the unloader cover hexagon head screw,
and remove the unloader cover.
2. Remove the spacer.
3. Press the unloader piston with your hand to check
that the unloader push rod moves.
4. Align the crankcase (a) with the gasket (b), and
drain hole (d) of the unloader cover (c) with the
filler opening (e), then attach the gasket (b) and
unloader cover (c).
5. Attach the coil of the solenoid valve unloader
cover integrated.
