MAYEKAWA 8M - Operation Order of the Unloader

2202G1JE-DA-M-N_2010.01.
4 Operation of the Compressor and the System
Reciprocating Compressor M Series 4.3 Operation Order of the Unloader
4-5

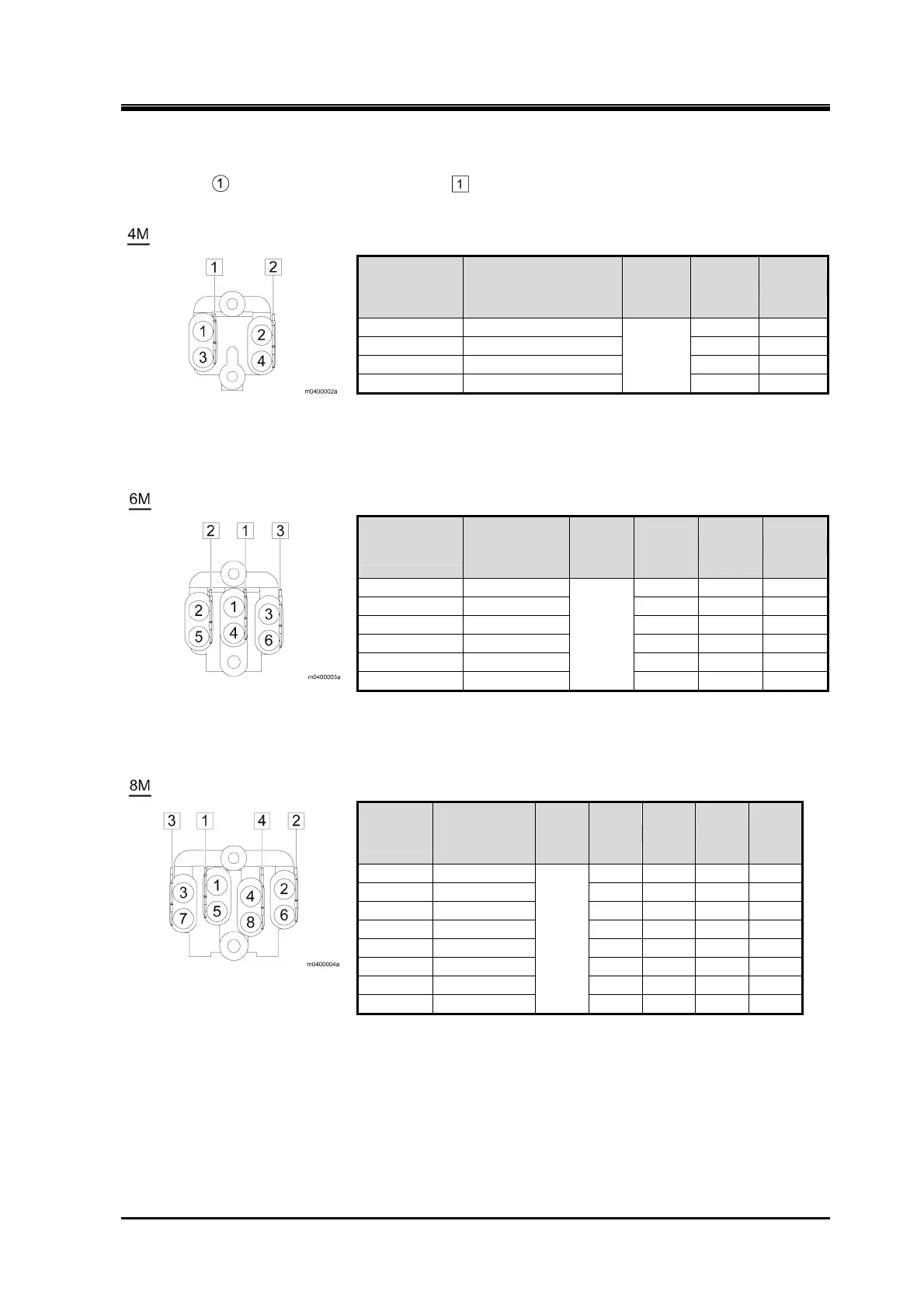

4.3 Operation Order of the Unloader
In the figure, indicate the cylinder number, and indicate the unloader piston number.
"ON" in the table indicates loading (energized), and "OFF" indicates unloading (not energized).
Fig. 4-1 Operation order of the
capacity control (4M)
Table 4-2 Loading rate (4M)
Cylinder No.
Unloader piston
number
0% 50% 100%
1 1 ON ON
2 2 OFF ON
3 1 ON ON
4 2
Stop
OFF ON
Fig. 4-2 Operation order of the
capacity control (6M)
Table 4-3 Loading rate (6M)
Cylinder No.
Unloader
piston
number
0% 33% 66% 100%
1 1 ON ON ON
2 2 OFF ON ON
3 3 OFF OFF ON
4 1 ON ON ON
5 2 OFF ON ON
6 3
Stop
OFF OFF ON
Fig. 4-3 Operation order of the
capacity control (8M)
Table 4-4 Loading rate (8M)
Cylinder
No.
Unloader
piston
number
0% 25% 50% 75% 100%
1 1 ON ON ON ON
2 2 OFF ON ON ON
3 3 OFF OFF ON ON
4 4 OFF OFF OFF ON
5 1 ON ON ON ON
6 2 OFF ON ON ON
7 3 OFF OFF ON ON
8 4
Stop
OFF OFF OFF ON
