4 Operation of the Compressor and the System
Reciprocating Compressor M Series 4.3 Operation Order of the Unloader
4-6

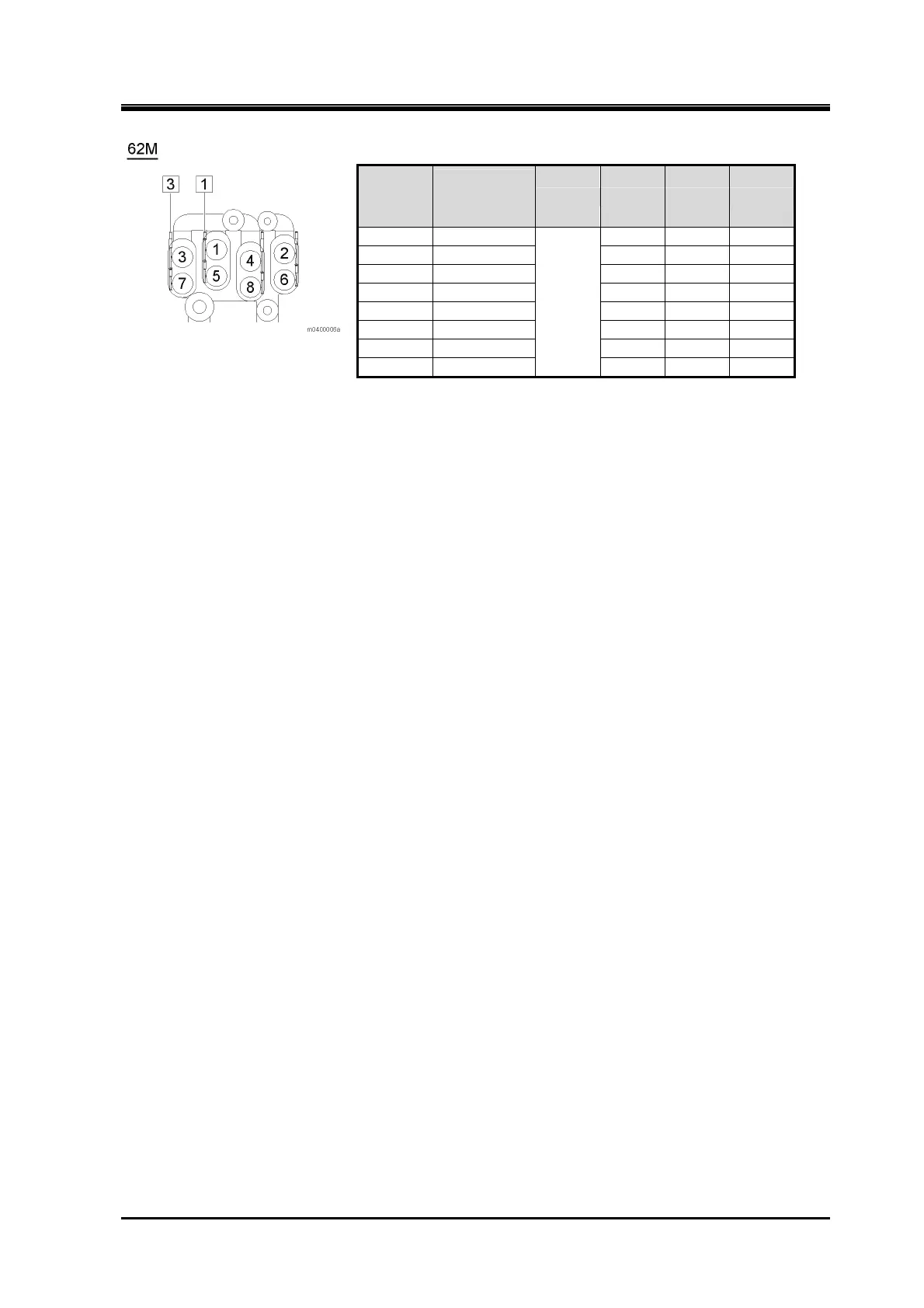

Fig. 4-4 Operation order of the
capacity control (62M)
Table 4-5 Loading rate (62M)
Cylinder
No.
Unloader
piston
number
0% 33% 66% 100%
1 1 OFF OFF ON
2 — ON ON ON
3 3 OFF ON ON
4 — ON ON ON
5 1 OFF OFF ON
6 — ON ON ON
7 3 OFF ON ON
8 —
Stop
ON ON ON
