3 Installation
Reciprocating Compressor M Series 3.2 Installation Works
3-4
3.2.4 Preparation for Installation
Installation Space

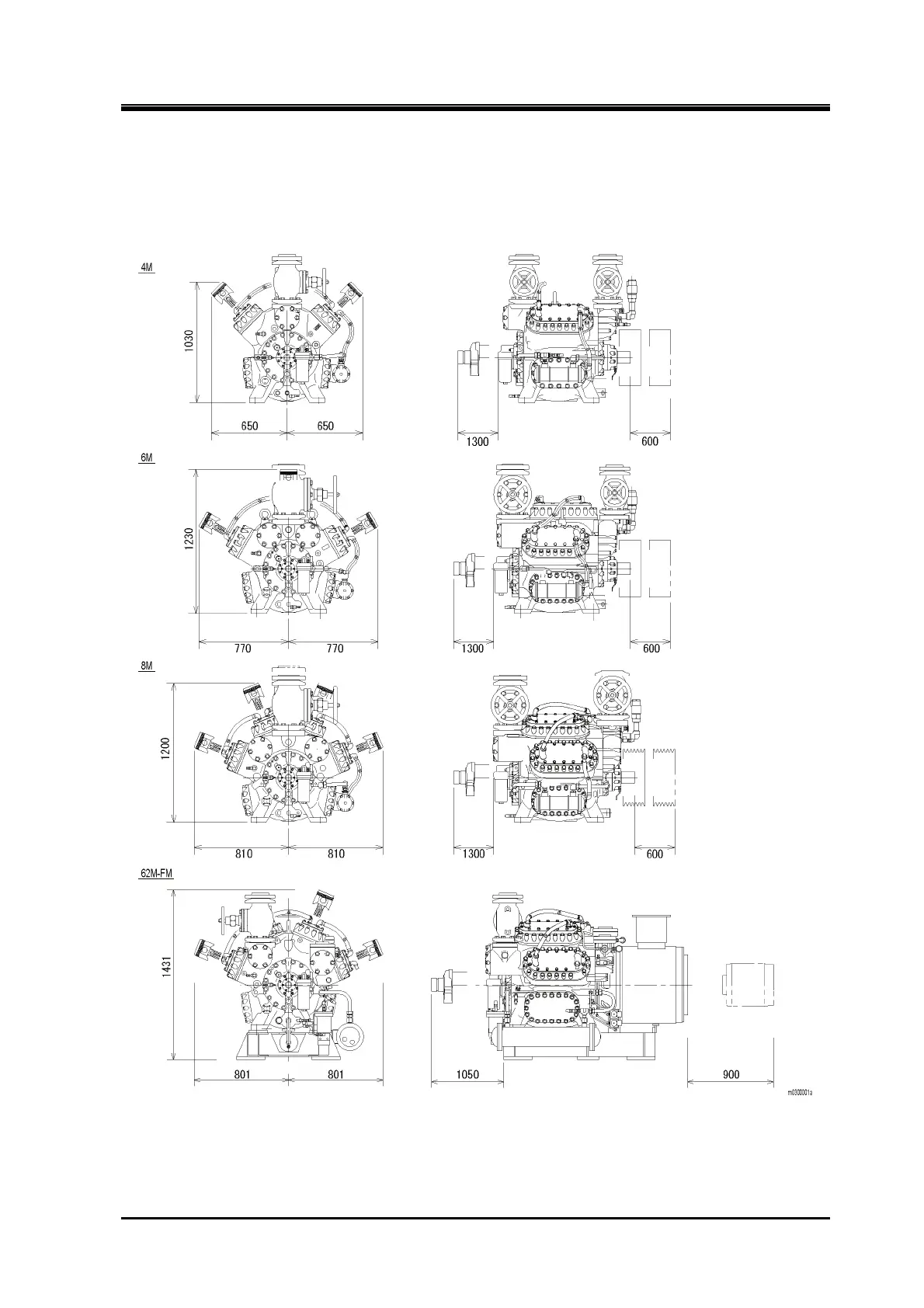

The figures below show the minimum necessary space for disassemble and reassemble of the compressor.
Referring to these figures, secure space which allows easy operation, cleaning, maintenance, and inspection.
Fig. 3-1 Installation space
