1 Safety
Reciprocating Compressor M Series 1.2 Warnings
1-5
Affixing Positions of Safety Labels
The figure below shows the affixing positions of safety labels.
The numbers in the figure correspond to the ones in Table 1-1 Safety label.

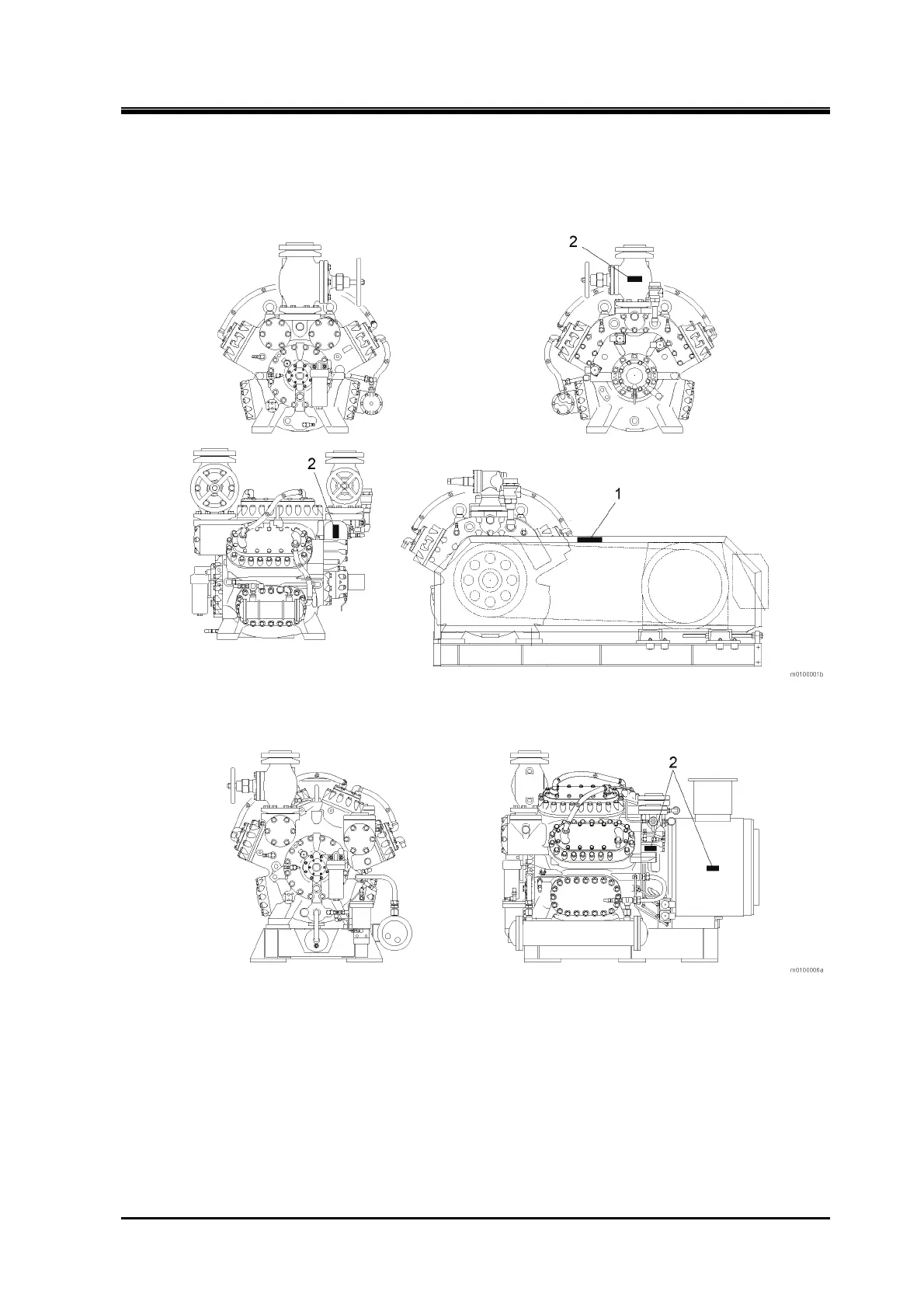

Fig. 1-1 Affixing positions of safety labels (Ex: 6M)
Fig. 1-2 Affixing positions of safety labels (Ex:
62M-FM)
