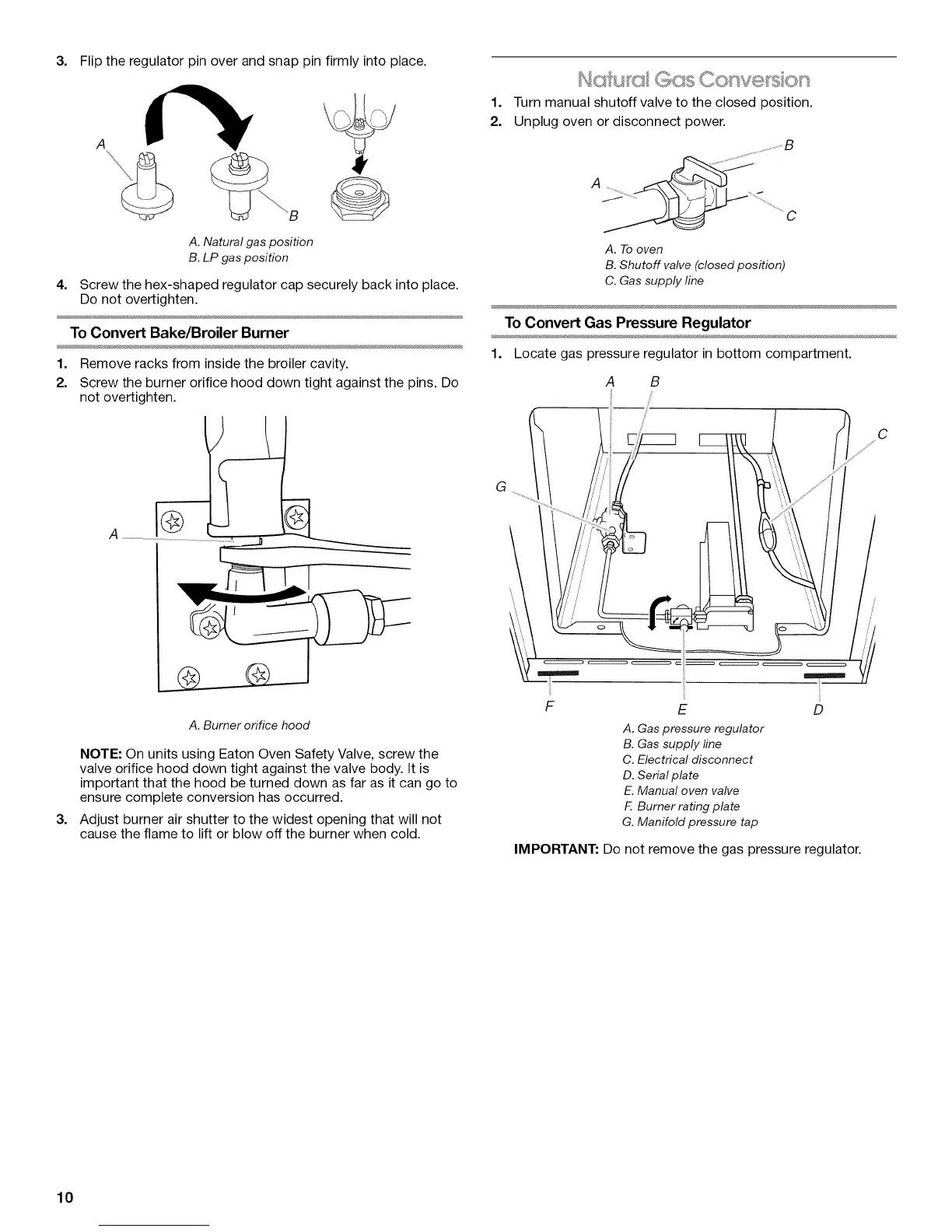

3. Flip the regulator pin over and snap pin firmly into place.
A. Natural gas position
B. LP gas position
4. Screw the hex-shaped regulator cap securely back into place.
Do not overtighten.
To Convert Bake/Broiler Burner
1. Remove racks from inside the broiler cavity.
2. Screw the burner orifice hood down tight against the pins. Do
not overtighten.
1=
2.
Gcs Conveys on
Turn manual shutoff valve to the closed position.
Unplug oven or disconnect power.
J ............... ......................C
A. Tooven
B. Shutoff valve (closedposition)
C. Gassupply line
To Convert Gas Pressure Regulator
1. Locate gas pressure regulator in bottom compartment.
A B
i _iI_
C
G
3=
A
A. Burner orifice hood
NOTE: On units using Eaton Oven Safety Valve, screw the
valve orifice hood down tight against the valve body. It is
important that the hood be turned down as far as it can go to
ensure complete conversion has occurred.
Adjust burner air shutter to the widest opening that will not
cause the flame to lift or blow off the burner when cold.
_::::::::::::::::__ _ i!_ _======_ _:::::::::::::::::=_=====
F E D
A. Gas pressure regulator
B. Gas supply line
C.Electrical disconnect
D.Serial plate
E. Manual oven valve
F.Burner rating plate
G. Manifold pressure tap
IMPORTANT: Do not remove the gas pressure regulator.
10
