DIMENSIONS
22

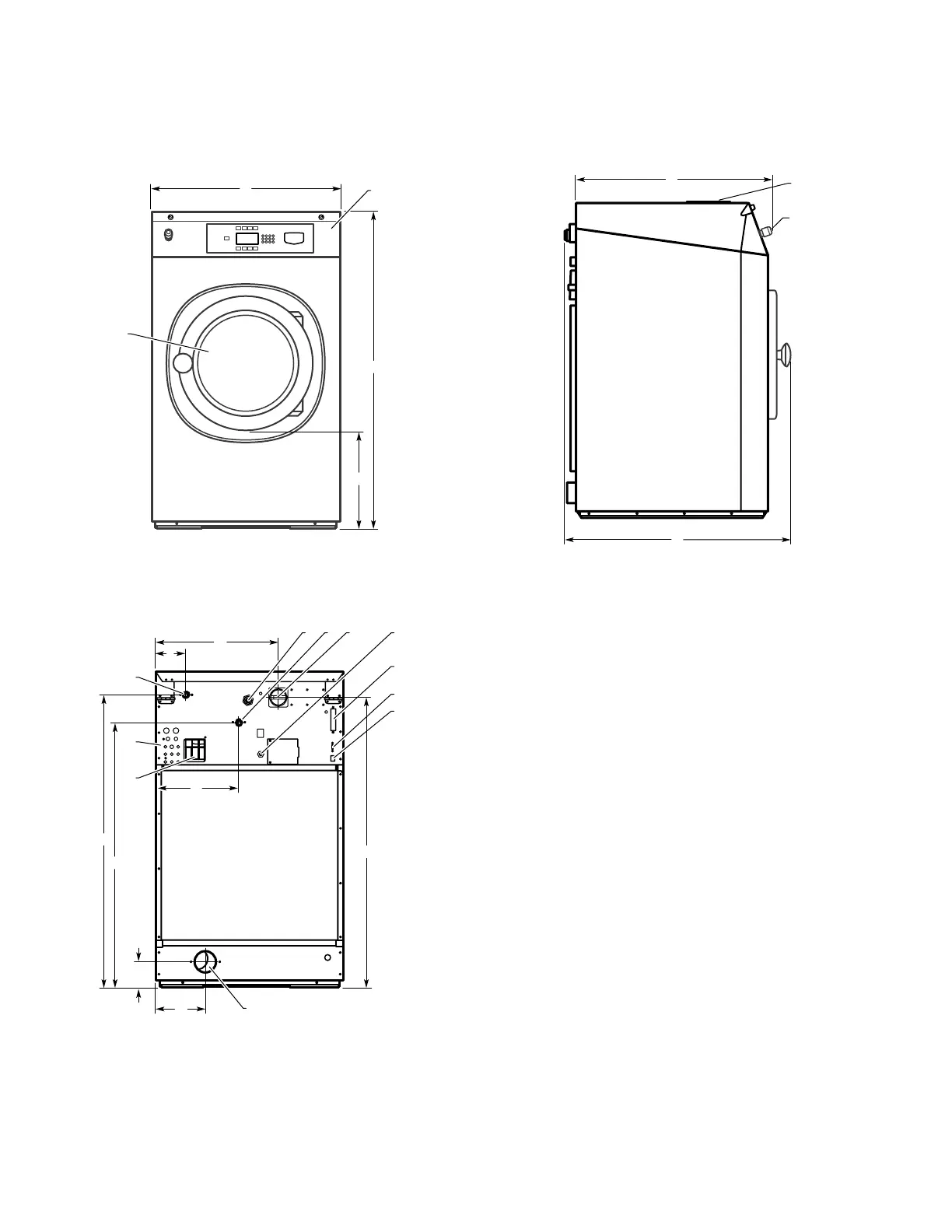

DIMENSIONS
(Rigid-Mount Models)
Side View
Rear View
A
10
8
C
E
D
7
9
B
I
K
N
F 6
J
G
1
H
2 4
11
12
14
3
5
15
13
L
Front View
1. Electrical connection
2. Hot water
3. Cold water
4. Main switch
5. Connection liquid soap
6. Drain (valve)
7. Soap dispenser
8. Control panel
9. Button CENTRAL STOP
10. Door opening:
20 lb/9 kg: ø 12.99"
(330 mm), 25-30 lb/
11-14 kg: ø 16.14"
(410 mm), 40-55-65 lb/
18-24-28 kg: ø 18.11"
(460 mm)
11. Fuses
12. USB port
13. Electrical connection
to liquid soap pumps
14. Trace-Tech connection
(RS485)
15. Air relieve/vent
