3-28

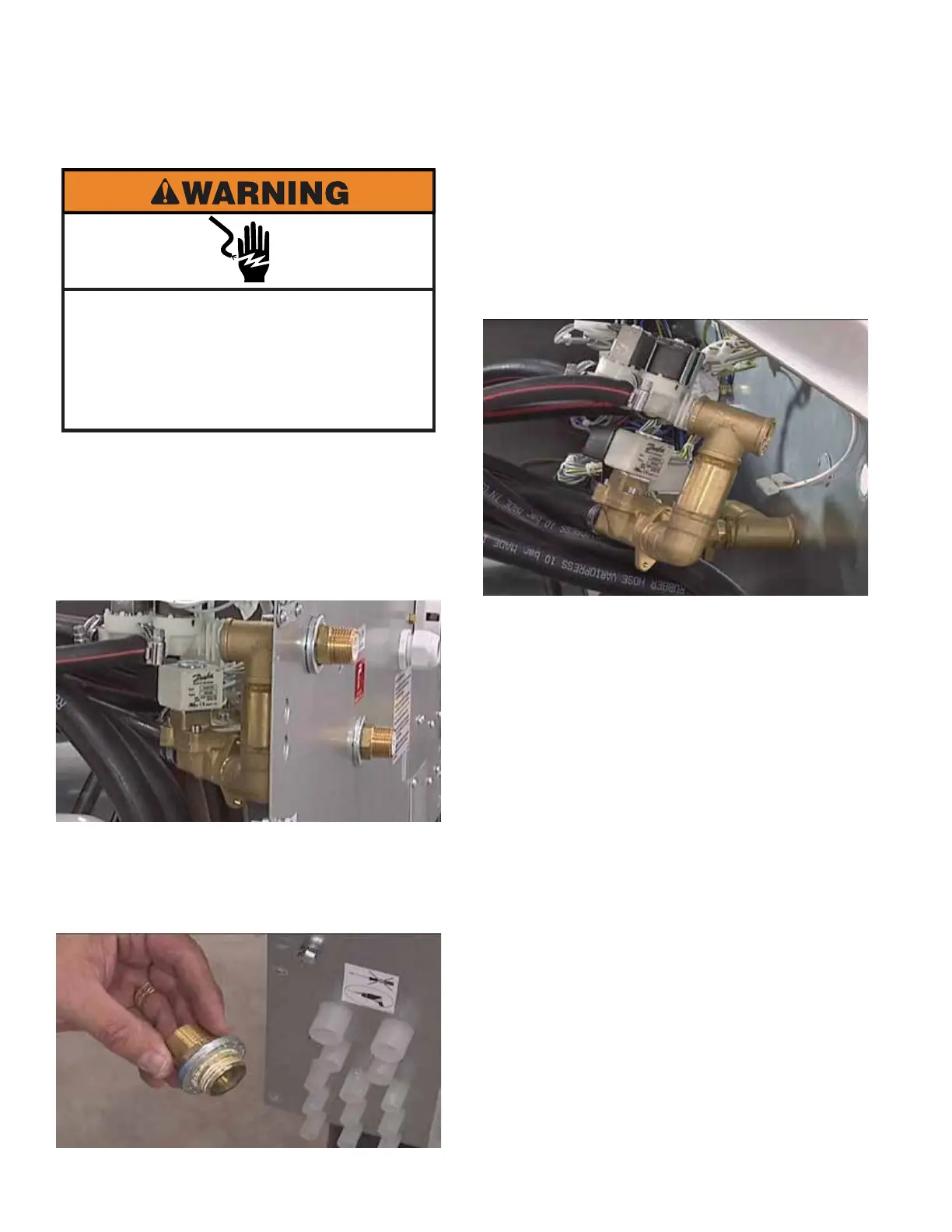

1. Open the top panel. (See page 3-1)
2. On 55 & 65 pound washers, remove the
27mm brass fitting securing the manifold to
the upper back panel. Use a pipe wrench
inside washer cabinet to secure manifold
while loosening the fitting on the back.
3. Remove brass fitting from the back panel.
4. Use pipe dope to seal the threads of the
fitting during reinstallation.
5. The manifold, inside the cabinet, can now
be moved away from the back panel.
6. The manifold consists of a valve at the
bottom, an elbow, a coupling and a T-fitting.
The hot water manifold is removed the
same way.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
WATER INLET MANIFOLDS - MXR55 - 65 ONLY
