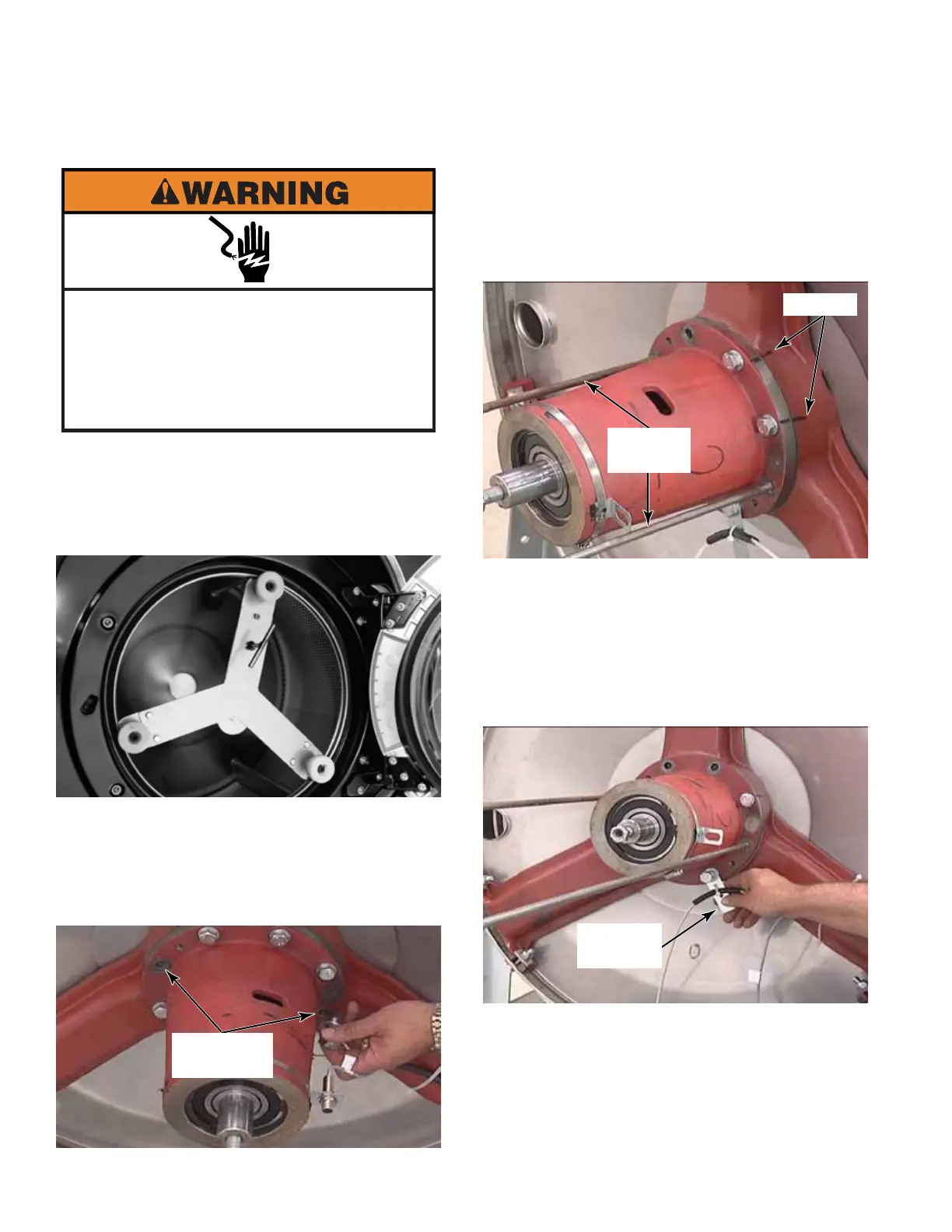

3-60
1. To access and service the bearing house
without removing the basket, install basket
centering tool from tool kit into door opening
of washer. This will keep basket shaft
centered when bearing house is removed.
2. Remove the basket pulley. (See page 3-59)
3. Remove two 19mm bolts, on opposite sides,
that secure the bearing house to the support
on the back of the outer tub.
4. Install two support rods into the holes of the
bolts just removed.
5. Mark the bearing house, and support, for
proper alignment during reinstallation.
6. Remove the remaining 19mm bolts from the
bearing house. These bolts each have a flat
washer.
7. There is a wire bracket on the bottom bolt.
The washer is positioned under the bracket,
against the bearing house.
8. The support rods will hold the bearing
house once all the bolts have been
removed.
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
BEARING HOUSE
Two 19mm
Bolts
Marks
Support
Rods
Wire
Bracket
To Next Page
