PAGE 2
FOR SERVICE TECHNICIAN’S USE ONLY
DO NOT REMOVE OR DESTROY
MAYTAG CONTROL PANEL (features and appearances may vary between models)
When the knob is rotated, the on-screen representations of the knob positions
(small circles) turn green. When rotated through all of its positions, the knob representation
(large circle) turns green. (Features and appearances vary between models).
“power/cancel” button: press
once to turn off indicator.
“start/pause” button:
begin or continue test. Press
once to turn off indicator.
“steam boost” button:
press once to turn off indicator.
“reduce static” button: press
once to turn off indicator.
Recommended buttons to
access Diagnostic Mode.

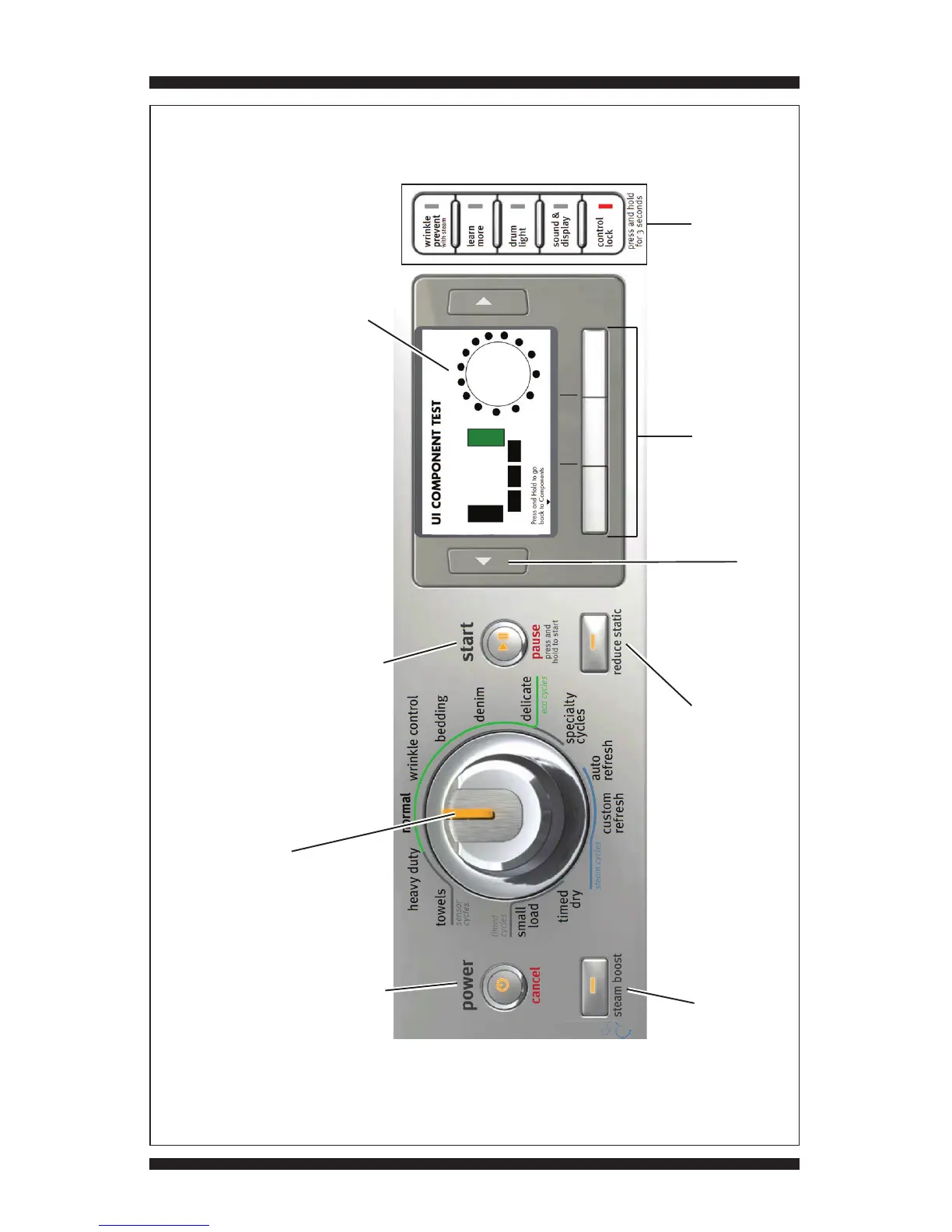

Figure 1 - UI Component Test
Color LCD Screen – pressing the buttons and turning the cycle
selector knob changes their on-screen representations from
black to green. UI Component Test, Error Codes, Diagnostics,
and System Information are accessed via Service Menus.
“Back/Left” button: press one or more
times to exit Diagnostic Mode.
Option buttons: press each
button once to turn off its
respective indicator.
