PAGE 26
FOR SERVICE TECHNICIAN’S USE ONLY
DO NOT REMOVE OR DESTROY
IMPORTANT: Electrostatic discharge may cause damage to machine control electronics. See page 1 for ESD information.
MAYTAG DRYER WIRING DIAGRAM – ELECTRIC
MYST VALVE
510-590 Ω
MOISTURE
SENSOR
3.3-3.6 Ω
2.7-3.0 Ω
10 Ω

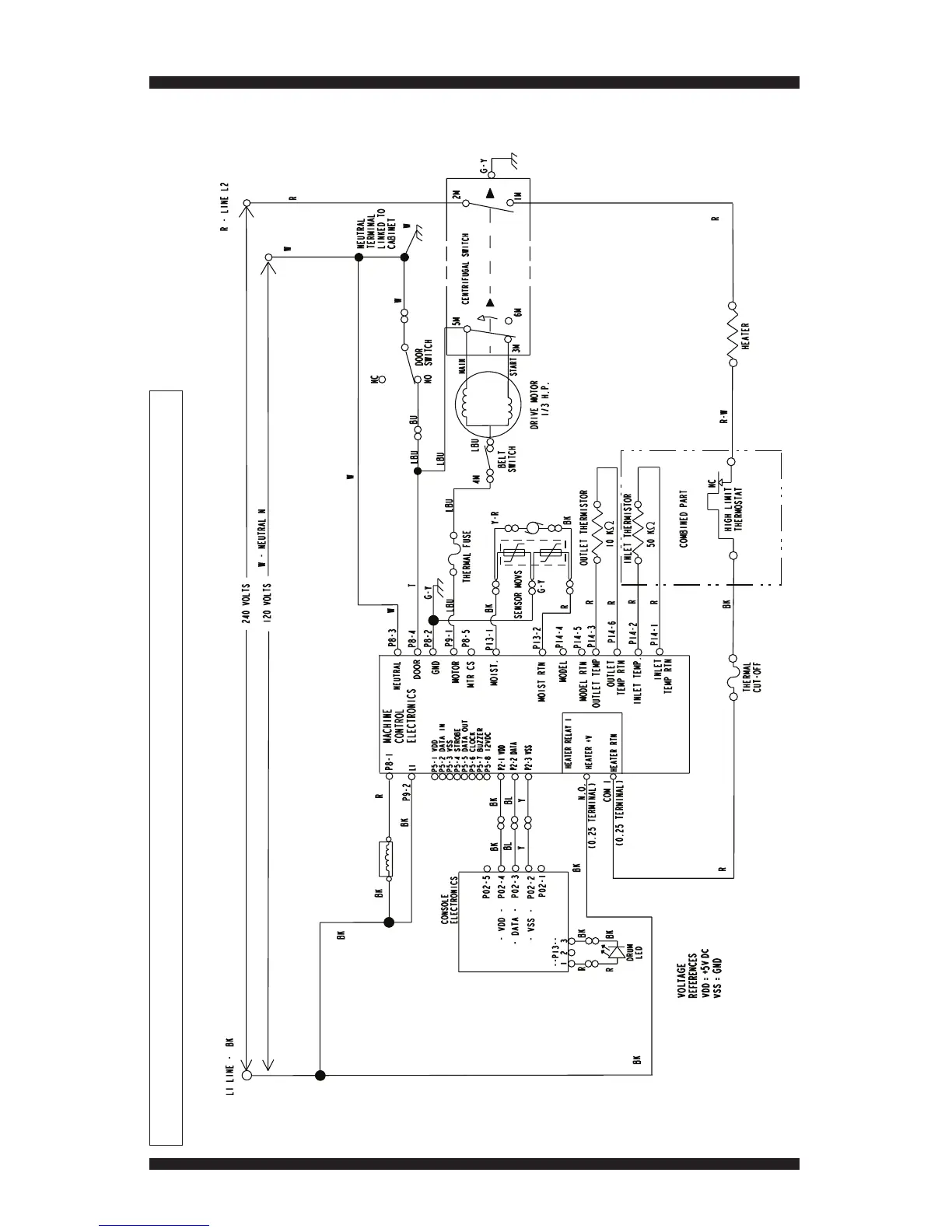

Figure 30 - Electric Wiring Diagram.
