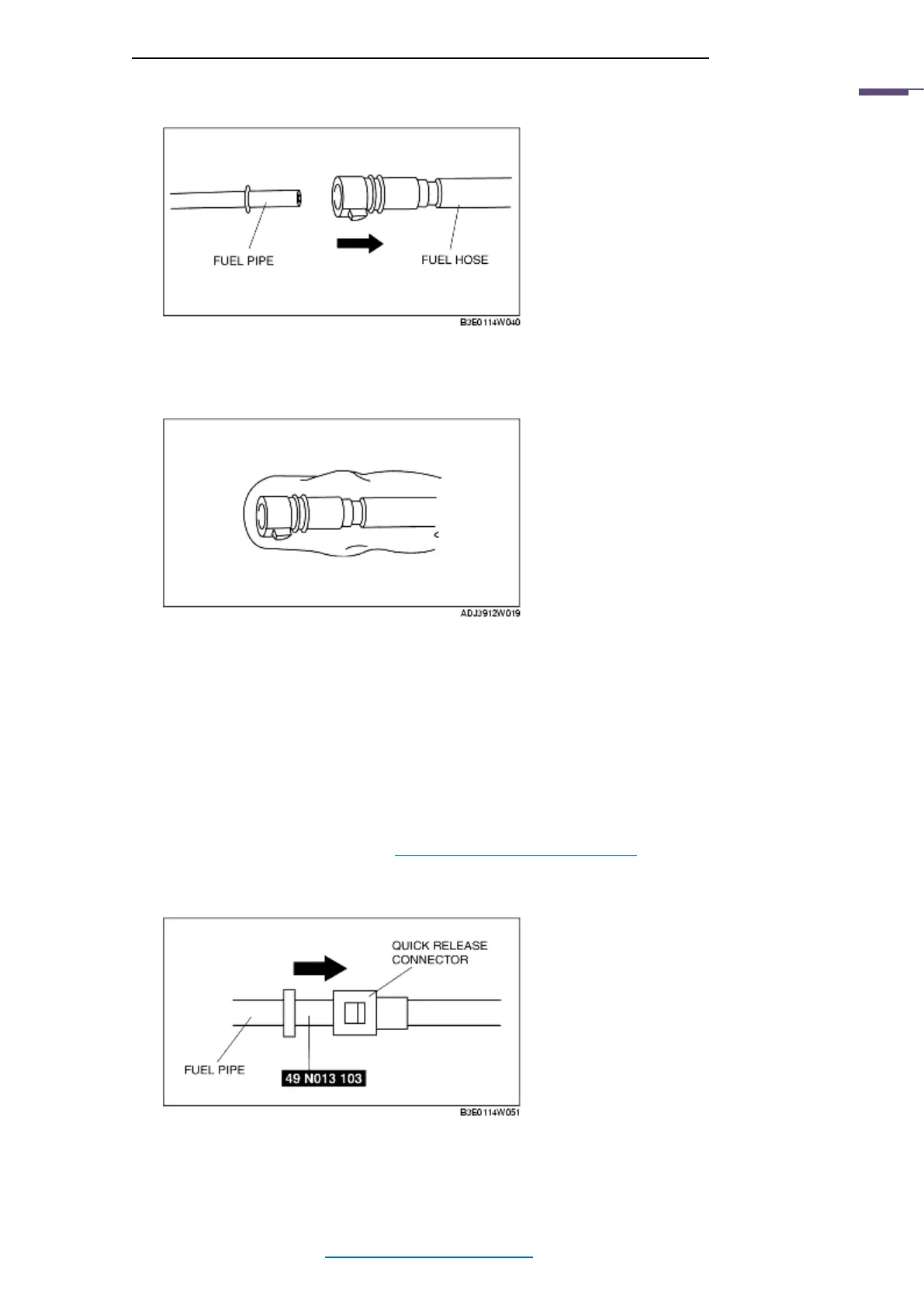

3. Pull out the fuel hose straight from the fuel pipe and disconnect it.
4. Cover the disconnected quick release connector and fuel pipe with vinyl sheeting or a similar material
to prevent it from scratches or dirt.
Type B Removal
Note
• Use the SST.
• For the purge solenoid valve-side of the charcoal canister, do not use the SSTbecause it cannot
be accessed easily.
Using the SST
1. Follow " BEFORE SERVICE PRECAUTION" and remove dirt from the connecting surfaces before
performing any work operations. (See BEFORE SERVICE PRECAUTION.)
2. Insert the SST into the quick release connector.
3. Pull out the fuel hose straight from the fuel pipe and disconnect it.
