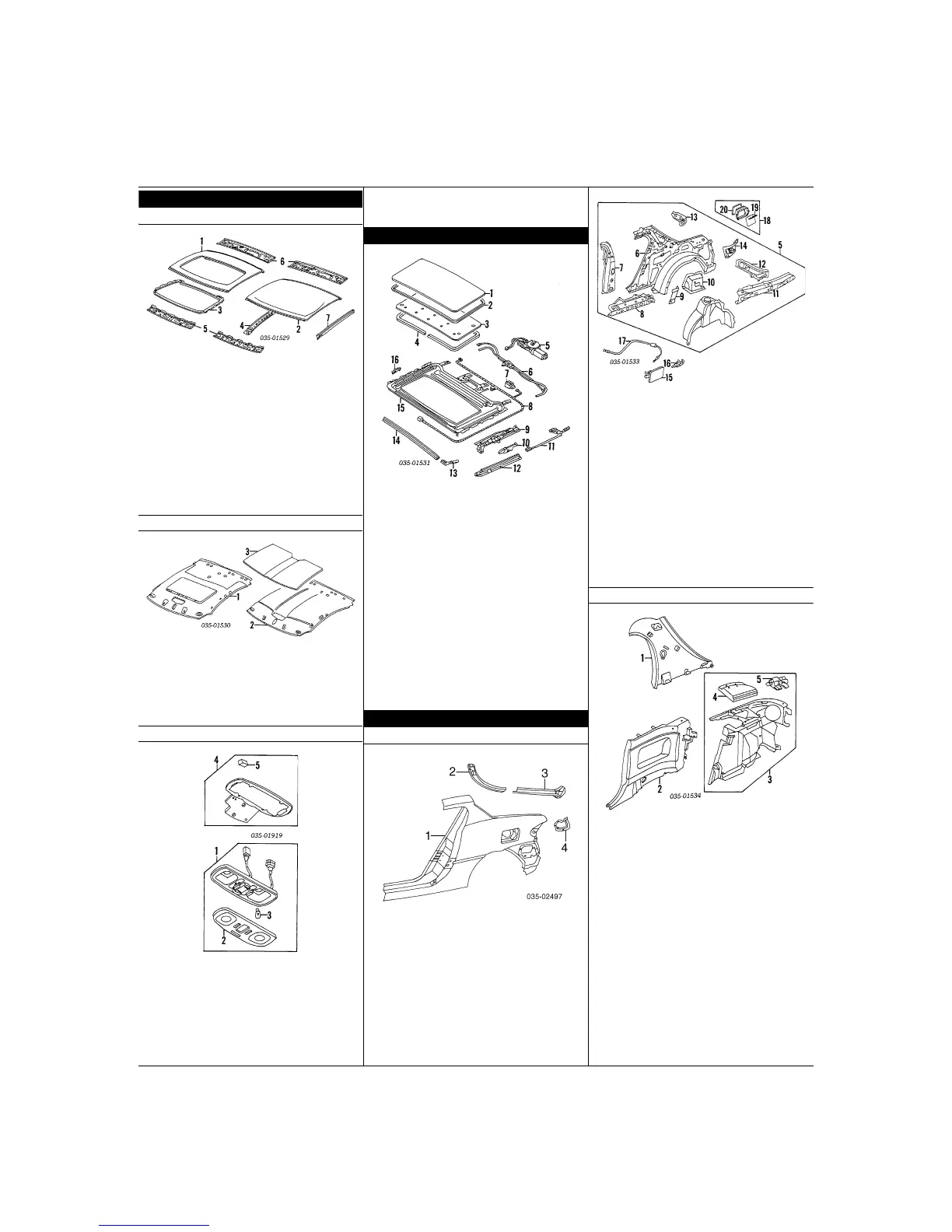

ROOF
SHEET METAL
Panel, Roof
1 w/Sunroof EA05-70-601G
2 w/o Sunroof EA01-70-601F
Reinforcement, Roof
3 w/Sunroof EA05-70-630
4 w/o Sunroof EA01-70-661A
5
Panel, Front Header
EA01-70-640
6
Panel, Rear Header
EA01-70-700C
7
Moulding, Roof
1992-93¶ R EA01-50-9H0G-PZ
L EA01-50-9L0G-PZ
1994-96 R EA02-50-9H0G
L EA02-50-9L0H
¶Black listed, Order by Application
J4 Passion Rose; PZ Brilliant Black;
SQ Blaze Red; UF Clear White;
Z1 Bluish Green Metallic; 4R Passion
Yellow Mica; 6C Mighty Gray;
6M Elegant Beige; 6V Raspberry Metallic
INTERIOR TRIM
Headliner¶
1 w/Sunroof 92-93 EA05-68-030E-08
94-96 EA21-68-030E-08
2 w/o Sunroof 92-93 EA01-68-030E-08
94-96 EA17-68-030E-08
3
Insulator, Roof¶
EA01-68-021
Holder, Sun Visor¶
R/L H260-69-261-06
Hook, Hanger¶
EA01-69-531A-06
¶Gray listed, Order by Application
06 Gray; 28 Taupe
OVERHEAD CONSOLE
1
Console Assy, Overhead (a)
w/Sunroof EA05-69-970C-06
w/o Sunroof EA01-69-970C-06
(a) Gray listed, Order by Application
06 Gray; 28 Taupe
2
Lens¶
w/Sunroof EA05-69-973
w/o Sunroof EA01-69-973
3
Bulb¶
0000-11-0194
¶Included w/Overhead Console Assy
4
Bracket Assy, Console
w/Sunroof EA21-69-98X
w/o Sunroof E016-69-981
5
Cushion, Brkt¶ (2)
92-93 GA2L-69-977A
94-95 EA21-69-977
¶Included w/Console Bracket Assy
SUNROOF
1
Panel, Sliding
EA05-69-810A
2
Weatherstrip
To 11-1-91 FB03-69-895C
From 11-1-91 EA05-69-825
3
Trim, Sliding Panel¶
EA05-69-960-08
4
Welt, Trim¶
EA05-69-981A-06
¶Gray listed, Order by Application
06 Gray; 08 Gray; 29 Taupe;
34 Taupe
5
Motor, Sunroof
EA05-69-848
6
Drive Unit, Sunroof
EA05-69-861
7
Relay, Motor
92-93 J005-69-873
94 EA05-69-873
8
Harness, Sunroof
EA05-69-872
9
Slide, Sunroof
R/L E002-69-868-9
10
Guide, Sunroof
92-93 R E002-69-864A
L E002-69-865A
94-96 R/L EA05-69-864-5
11
Rail, Closing
R/L FB03-69-865-6
12
Rail, Guide
92-93 R E002-69-851D
L E002-69-852D
94-96 R/L EA05-69-851-2
13
Link, Deflector
R FB03-69-846B
L FB03-69-847B
14
Deflector
FB03-69-845
15
Frame Assy, Sunroof
EA05-69-840
16
Bracket, Side¶ (2/Side)
R/L FB03-69-849
¶Included w/Sunroof Frame Assy
QUARTER PANEL
SHEET METAL
1
Panel, Outer
R EAY1-70-40X
L EAY1-71-40X
2
Rail, Upper
R EA01-70-442
L EA01-71-442
3
Rail, Lower
R EA01-70-44XB
L EA01-71-44XB
4
Panel, Corner
R EA01-70-481B
L EA01-71-481B
Illustration Located in Next Column
5
Panel Assy, Inner
R EA01-70-100A
L EA01-71-100B
6
Reinf, Inner¶
R EA01-70-11XE
L EA01-71-11XF
7
Pillar, Inner¶
R EAY1-70-140
L EAY1-71-140
8
Reinf, Side¶
R EA01-70-130A
L EA01-71-130A
9
Brace, Wheelhouse¶
R B455-70-152
L B455-71-152
10
Reinf, Susp Housing¶
R EA01-70-121A
L EA01-71-121A
11
Reinf, Lateral¶
R EA01-70-A4X
L EA01-71-A4X
12
Reinf, Upper¶
R EA01-70-13YB
L EA01-71-13YB
13
Brace, Stay¶
R EA01-70-17Y
L EA01-71-17Y
14
Reinf, Corner Panel¶
R EA01-70-11Y
L EA01-71-11Y
¶Included w/Inner Panel Assy
15
Lid, Filler
EA01-42-410
16
Opener, Lid
EA01-56-890D
17
Cable, Opener
BR94-56-880
18
Vent Assy, Pressure Release
R/L E016-51-920G
19
Retainer, Flap¶
R/L E016-51-924
20
Gasket¶
R/L E016-51-922
¶Included w/Pressure Release Vent Assy
INTERIOR TRIM
1
Panel, Upper Trim¶
1992-93 R EA01-68-190C-06
L EA01-68-210C-06
1994-96 R EA17-68-190C-06
L EA17-68-210C-06
¶Gray listed, Order by Application
06 Gray; 28 Taupe
2
Panel, Lower Trim (a)
1992-93
4 Cyl R E016-68-520E-02
L E016-68-550E-02
6 Cyl R EA03-68-520E-02
L EA03-68-550E-02
1994-96 R E041-68-520B-02
L E041-68-550-02
3
Panel Assy, Rear Trim (a)
R EA01-68-850G-02
L EA01-68-870G-02
4
Tray, Side (a) (b)
R EA01-68-J21-02
L EA01-68-J26-02
5
Hinge, Tray (a) (b)
R EA01-68-J22B-02
L EA01-68-J27B-02
(a) Black listed, Order by Application
(b) Included w/Rear Trim Panel Assy
