MAZDA MX3 1992-96
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
70
madpl1_g01_
Page 70—April 22, 2004—13:29:49—Version Manufacturer
FRONT DRIVE AXLE Cont’d
1992-93 R F035-22-520
L F035-22-620A
1994
Man Trans R/L F065-22-520
Auto Trans R F015-22-520
L F015-22-620B
5
Boot Kit, Inner¶ (a)
4 Cyl 92-93 R/L F061-22-540-9U
94-96 R/L F061-22-540-9U
6 Cyl
1992-93 R/L F037-22-540-9U
1994
Man Trans R/L F037-22-540-9U
Auto Trans R/L F015-22-540
(a) Included w/Inner Joint Set
6
Damper¶
4 Cyl 92-93 L F002-25-411B
¶Included w/Axle Shaft Assy
7
Shaft Assy, Intermediate
4 Cyl
Man Trans F055-25-700B
Auto Trans F056-25-700C
6 Cyl
1992-93 G562-25-700B
1994
Man Trans GA09-25-700C
Auto Trans FA01-25-700A
8
Seal, Inner¶
4 Cyl G560-25-744
6 Cyl 92-93 G560-25-744
94 G569-25-744
9
Bearing¶
4 Cyl 9960-68-2064
6 Cyl 92-93 9960-68-2064
94 569-25-155
10
Brkt, Intermediate Shaft¶
4 Cyl
Man Trans F055-25-741A
Auto Trans F056-25-741A
6 Cyl 92-93 G564-25-741B
94 G569-25-741B
11
Seal, Outer¶
4 Cyl G560-25-742
6 Cyl 92-93 G560-25-742
94 G569-25-742
¶Included w/Intermediate Shaft Assy

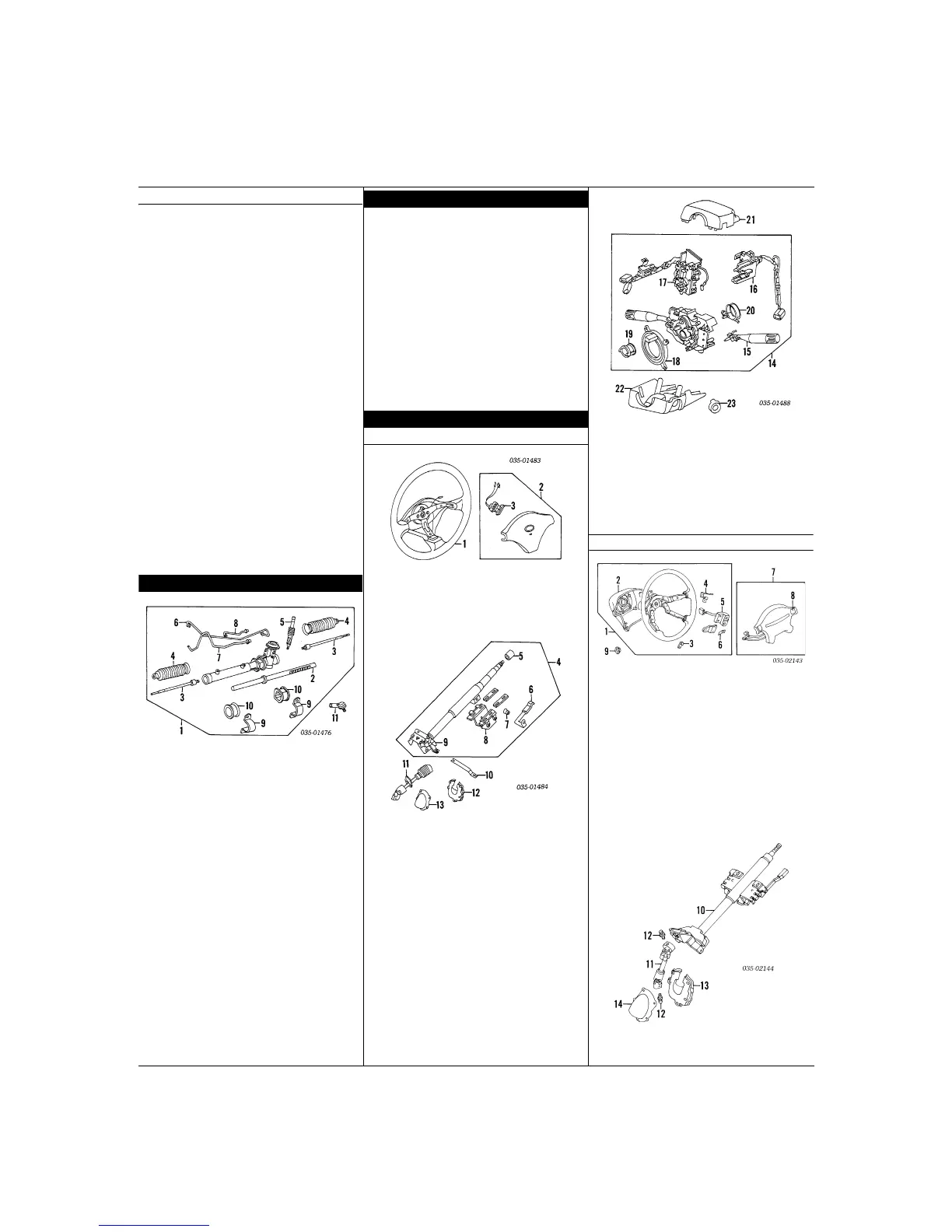

FRONT STEERING LINKAGE/GEAR
1
Gear Assy
4 Cyl EA01-32-110R-0J
6 Cyl EA04-32-110R-0E
2
Rack, Steering¶
4 Cyl BR71-32-119
6 Cyl E018-32-119
3
Rod, Inner Tie¶
4 Cyl R E016-32-25X
L E016-32-24X
6 Cyl R/L E018-32-250A
4
Boot, Dust¶
4 Cyl R/L B456-32-125
6 Cyl R/L E018-32-125
5
Pinion¶
4 Cyl
To 4-93 BR71-32-380
From 4-93 BR72-32-380
6 Cyl EA04-32-380
6
Pipe, Pressure¶
4 Cyl BR71-32-451
6 Cyl EA04-32-45X
7
Pipe, Return¶
4 Cyl BR71-32-451
6 Cyl EA04-32-45YA
8
Pipe, Crossover¶
4 Cyl BR71-32-481
6 Cyl 92-93 EA04-32-480
94 EA04-32-480A
9
Bracket, Gear Mount¶
4 Cyl R/L B456-32-134-3
6 Cyl R E018-32-133A
L E018-32-134
10
Bushing, Gear Mount¶
4 Cyl R B595-32-123
L B456-32-124
6 Cyl R E018-32-123A
L E018-32-124
¶Included w/Gear Assy
11
End, Tie Rod
R/L 8AB2-32-280
STEERING PUMP
Pump Assy, Steering
4 Cyl B456-32-600G
6 Cyl EA03-32-600D
Pulley, Pump¶
4 Cyl-Serviced w/Strg Pump Assy
6 Cyl E018-32-620
¶Included w/Steering Pump Assy
Reservoir, Pump
4 Cyl BR71-32-690D
6 Cyl EA03-32-690A
Bracket, Pump Mount
4 Cyl B25D-32-680
6 Cyl EA03-32-660
Support, Pump
4 Cyl B456-32-614
6 Cyl EA03-32-609
Hose, Pressure
4 Cyl BR71-32-49YC
6 Cyl EA04-32-490E
Hose, Return
4 Cyl EA01-32-684A
6 Cyl G563-32-684
Tube, Cooling
4 Cyl EA01-32-5L0B
6 Cyl EA03-32-5L0B
STEERING WHEEL/COLUMN
1992-93
1
Wheel, Steering
w/Cruise Control EA02-32-980A
w/o Cruise Control EA01-32-980A
2
Pad Assy, Horn
w/Cruise Control EA02-32-800A
w/o Cruise Control EA01-32-800
3
Switch, Cruise Control¶
BR70-66-3D1C
¶Included w/Horn Pad Assy
4
Column Assy
w/Tilt BR71-32-100G
w/o Tilt BR70-32-100E
5
Bushing (Tilt Column)¶
B001-32-071
6
Lever (Tilt Column)¶
B456-32-171
7
Retainer (Tilt Column)¶
B456-32-172
8
Bracket, Upper (Tilt Column)¶
BS07-32-175A
9
Bracket, Lower (Tilt Column)¶
BR71-32-140
¶Included w/Column Assy
10
Bracket, Support (Tilt Column)
BR71-32-104A
11
Shaft, Lower
EA01-32-090B
12
Cover, Lever
EA01-32-215A
13
Retainer, Cover
BR70-32-210E
Illustration Located in Next Column
14
Switch Assy, Combination
Base Model EA01-66-120
GS Model
w/Cruise Control EA04-66-120
w/o Cruise Control EA02-66-120
15
Lever, Wiper Switch¶
Base Model EA01-66-128
GS Model EA02-66-128
16
Switch, Wiper¶
EA25-66-135
17
Switch, Lamp¶
EA01-66-122
18
Ring, Switch¶
EA04-66-SP0
19
Cam, Turn Signal¶
w/Cruise Control EA04-66-126
w/o Cruise Control BR70-66-126
20
Clamp¶
BR70-66-124
¶Included w/Combination Switch Assy
21
Cover, Upper
EA01-60-220A
22
Cover, Lower
EA01-60-230A
23
Grommet, Key Cylinder
LA01-60-261
Lock Assy, Ignition
Man Trans EA01-76-290A
Auto Trans EA02-76-290A
Switch, Ignition¶
B455-66-151A
¶Included w/Ignition Lock Assy
1994-96
1
Wheel Assy, Steering
USA
w/Cruise Control BC1E-32-980
w/o Cruise Control BC1D-32-980G
Canada
w/Cruise Control
w/Air Bag N.A.
w/o Air Bag N.A.
w/o Cruise Control
w/Air Bag N.A.
w/o Air Bag N.A.
2
Cover, Wheel¶
BC1D-32-049
3
Bracket, Upper¶
BC1D-32-750
4
Bracket, Lower¶
9927-60-806
5
Switch, Cruise Control¶
BC1E-66-3D1A
6
Clip, Switch¶
2667-15-303A
¶Included w/Steering Wheel Assy
7
Module, Air Bag-See Air Bag System Section
Clockspring-Serviced w/Combination Switch
8
Switch, Horn-See Air Bag System Section
9
Cap
BC1D-32-9L1
10
Column
USA EA70-32-100B
Canada
To Next Page
