MAZDA MX3 1992-96
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
69
madpl1_g01_
Page 69—April 22, 2004—13:29:48—Version Manufacturer

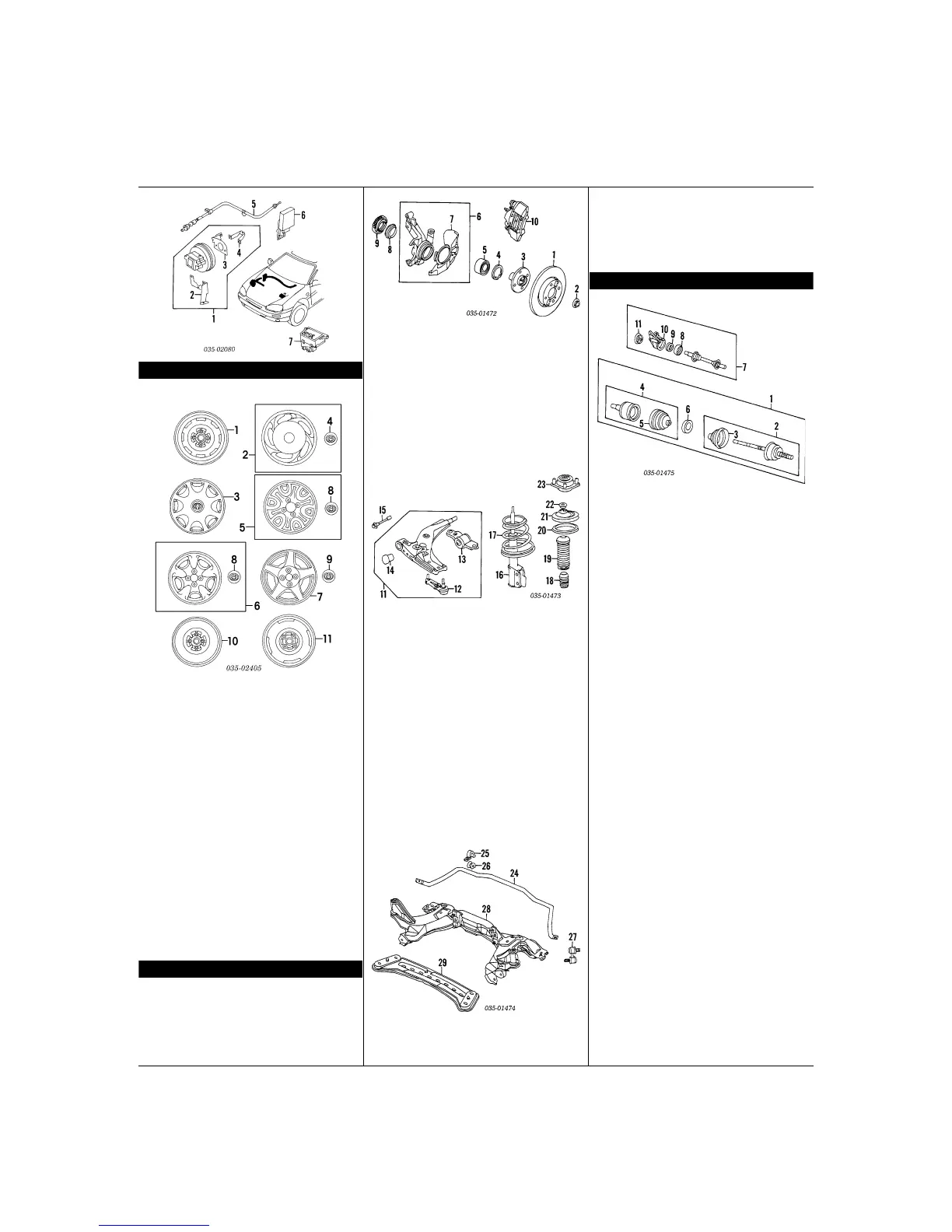

WHEEL
1
Wheel, Steel
14x5-1/2JJ" 9965-A9-554
Cover Assy, Wheel
2 1992-93
To 2-1-92 EA25-37-170A
From 2-1-92 EA01-37-170
3 1994-96 EA70-37-170
4
Emblem¶ (a)
EA25-37-172B
¶Included w/Wheel Cover Assy
(a) Order by Application
Wheel Assy, Aluminum
514x5JJ"
To 2-1-92 8BE3-37-600
From 2-1-92 8BE5-37-600
15x6JJ"
6 1992-93
To 2-1-92 8BE4-37-600
From 2-1-92
GS, Base Model 8BE6-37-600
GS Special Edition 8BE9-37-600
7 1994 9965-B2-605
Emblem
8 1992-93¶ (a) EA30-37-192B
9 1994-96 EA02-37-192
¶Included w/Aluminum Wheel Assy
(a) Order by Application
Wheel, Spare
10 14x4TX" 9965-18-4040
11 15x4TX" 9965-23-4050
Stem, Valve¶
9963-60-4130
¶Order by Application
Nut, Lug
Steel Wheels 0603-26-161A
Alloy Wheels B002-37-160A
FRONT SUSPENSION
Illustration Located in Next Column
1
Rotor, Brake
R/L BB7E-33-25XD
2
Nut, Lock
R/L GJ21-33-042B
3
Hub
R/L B01A-33-060A
4
Ring, Bearing Snap
R/L B21M-33-048
5
Bearing, Wheel
R/L B455-33-047D-MV
6
Knuckle Assy
w/ABS R EA07-33-020E
L EA07-33-030E
w/o ABS R EA03-33-020E
L EA03-33-030E
7
Shield, Splash¶
R B01A-33-261B
L B01A-33-271B
¶Included w/Knuckle Assy
8
Seal, Wheel Bearing
R/L G304-33-065
9
Rotor, ABS
4 Cyl 92-93 R/L B613-33-471B
94-96 R/L B603-33-471
6 Cyl R/L B613-33-471B
Sensor, ABS-See Anti-Lock Brake System Section
10
Caliper, Brake
R BRY4-33-98ZR
L BRY4-33-99ZR
11
Arm Assy, Lower Control
R E016-34-300H
L E016-34-350H
12
Ball Joint¶
92-93 R/L E016-34-550
94-96 R/L BTDA-34-550
13
Bushing, Mounting¶
To 6-94 R EA01-34-46XA
L EA01-34-46YA
From 6-94 R BC1F-34-46X
L BC1F-34-46Y
14
Bushing, Lower Arm¶
R/L EA01-34-470
¶Included w/Lower Control Arm Assy
15
Bolt, Lower Arm
R/L B455-34-113
16
Strut¶
4 Cyl R E026-34-700D
L E026-34-900D
6 Cyl
w/ABS R E026-34-700D
L E026-34-900D
w/o ABS R E026-34-700D
L E026-34-900D
17
Spring, Coil¶
R/L EA06-34-011C
¶Order by Application
18
Bumper, Stopper
To 8-94 R/L B481-34-111A
From 8-94 R/L B455-34-111B
19
Cover, Lever
R/L B481-34-015
20
Seat, Spring Lower
R/L B455-34-012
21
Seat, Spring Upper
R/L B455-34-340A
22
Bushing, Mounting
R/L B455-34-38XB
23
Insulator, Mounting
R/L B455-34-380D
24
Bar, Stabilizer
4 Cyl E016-34-151
6 Cyl EA03-34-151B
25
Bracket, Stabilizer
To 6-94 R/L B461-34-155A
From 6-94 R/L BC1D-34-155B
26
Bushing, Stabilizer
4 Cyl R/L B459-34-156A
6 Cyl R/L EA03-34-156
27
Link, Stabilizer
R/L EA03-34-170A
28
Crossmember, Suspension
4 Cyl EA01-34-800G
6 Cyl EA03-34-800H
29
Reinf, Crossmember
6 Cyl B01C-34-H90
FRONT DRIVE AXLE
1
Shaft Assy, Axle
4 Cyl
1992-93 R FZ25-25-400A
L F025-25-600G
1994-96
Right
w/ABS
Man Trans FA10-25-50X
Auto Trans FA07-25-50X
w/o ABS
Man Trans F063-25-500R-0E
Auto Trans F063-25-500R-0E
Left
w/ABS F029-25-60XA
w/o ABS F025-25-600G
6 Cyl
1992-93
w/ABS R F035-25-50X
L F035-25-600A
w/o ABS R F036-25-500
L F036-25-600B
1994
Man Trans
w/ABS R GA07-25-50XA
L F035-25-60XA
w/o ABS R GA06-25-500A
L F036-25-600B
Auto Trans R FF01-25-500A
L F016-25-600B
2
Joint Set, Outer¶
4 Cyl
1992-93 R F025-22-510B
L F025-22-610B
1994-96
Right
w/ABS
Man Trans FA10-22-510
Auto Trans FA07-22-510
w/o ABS
Man Trans FA09-22-510C
Auto Trans F063-22-510C
Left
w/ABS F029-22-610B
w/o ABS F025-22-610B
6 Cyl
1992-93
w/ABS R F035-22-510A
L F035-22-610A
w/o ABS R F036-22-510A
L F036-22-610A
1994
Man Trans
w/ABS R GA07-22-510A
L F035-22-610A
w/o ABS R GA06-22-510A
L F036-22-610A
Auto Trans R FF01-22-510A
L F016-22-510A
3
Boot Kit, Outer¶ (a)
4 Cyl
1992-93 R/L BS10-V9-050-9U
1994-96 R/L BS10-V9-050-9U
6 Cyl
1992-93 R/L BS40-V9-050-9U
1994
Man Trans R/L BS40-V9-050-9U
Auto Trans R/L BS40-V9-050-9U
(a) Included w/Outer Joint Set
4
Joint Set, Inner¶
4 Cyl 92-93 R/L FZ02-22-520A
94-96 R F061-22-520
L FZ02-22-520A
6 Cyl
To Next Page
