MAZDA MX3 1992-96
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
68
madpl1_g01_
Page 68—April 22, 2004—13:29:46—Version Manufacturer

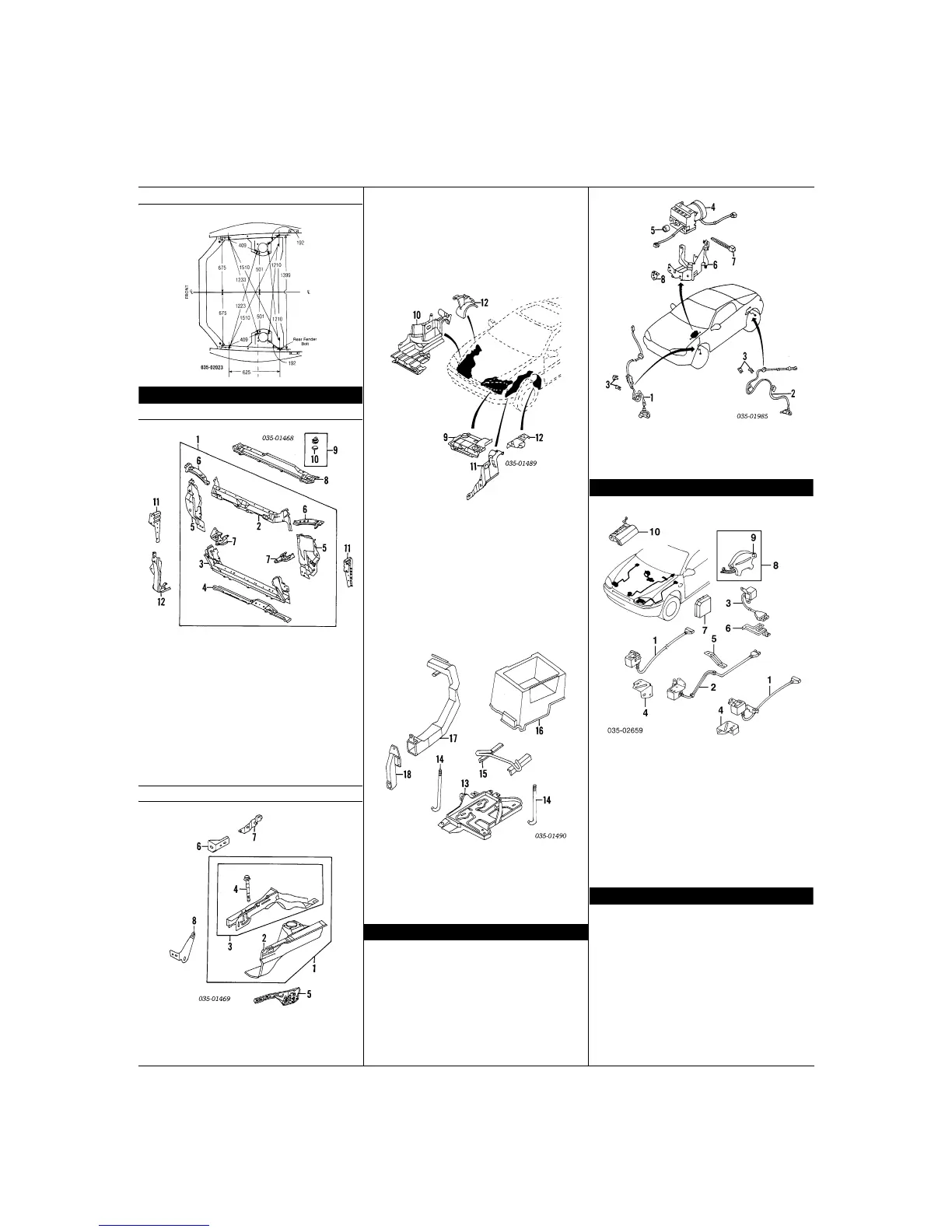

UNDERHOOD DIMENSIONS Cont’d
FRONT INNER STRUCTURE
FRONT
1
Support Assy, Radiator
E040-53-100
2
Bar, Upper Tie¶
E040-53-150
3
Bar, Lower Tie¶
EA01-53-160A
4
Crossmember, Lower¶
EA01-53-170A
5
Panel, Side¶
R E040-53-120
L E040-54-120
6
Extension, Upper¶
R EA01-53-130B
L EA01-54-130B
7
Bracket, Lower¶
R EA01-53-17Y
L EA01-54-17Y
¶Included w/Radiator Support Assy
8
Member, Upper
E040-56-17Y
9
Mount, Radiator
EA01-56-180B
10
Insulator, Mount-Serviced w/Rad Mount Assy
11
Bracket, Side
92-93 R EA01-53-32ZA
L EA01-54-325A
94-96 R E040-53-32Z
L E040-54-32Z
12
Support, Latch
EA01-53-35XB
SIDE
1
Apron Assy
R EA01-53-200
L EA01-54-200
2
Panel, Apron¶
R EA01-53-210C
L EA01-54-210C
3
Rail Assy, Front¶
R EA01-53-300A
L EA01-54-300
4
Bolt, Rail Mtg¶ (a)
92-93 R/L B455-53-319
94-96 R/L B456-53-319
¶Included w/Apron Assy
(a) Included w/Front Rail Assy
5
Reinf, Apron
R B481-53-281D
L B481-54-281D
6
Bracket, Front
R EA01-53-335
L EA01-54-335
7
Bracket, ABS
B603-54-39ZB
8
Hook, Tie-Down
R EA01-53-36XA
L EA01-54-36XA
9
Cover, Under
EA01-56-121A
10
Shield, Eng Front Splash
EA01-56-310A
11
Shield, Eng Rear Splash
4 Cyl B455-56-321B
6 Cyl E018-56-321
12
Extension, Splash Shield
Right
4 Cyl BC1D-56-114
6 Cyl EA07-56-114A
Left
w/ABS B603-56-115
w/o ABS B455-56-115
Mudguard¶
R E016-51-840A-PZ
L E016-51-850A-PZ
¶Black listed, Order by Application
D2 Creek Blue MC; PT Chaste White; PZ Brilliant Black;
SQ Blaze Red; 29 Sparkle Green M; 3L Silver Stone Metallic
13
Tray, Battery
Man Trans EA01-56-040A
Auto Trans EA02-56-040B
14
Bolt, Battery Hold
R B180-56-034A
L B455-56-034
15
Hold-Down, Battery
B465-56-03XA
16
Box, Battery
PN41-18-591A
17
Duct, Cooling
K801-18-596
18
Inlet, Duct
K806-18-596A
ABS
Illustration Located in Next Column
1
Sensor, Front ABS
R E042-43-70XA
L E042-43-73XA
2
Sensor, Rear ABS
R B603-43-72YJ
L E042-43-71Y
3
Clip, Sensor Harness
(4/Side) R/L B530-43-636
4
Hydraulic Unit, ABS
B603-43-7A0E
5
Mount, Hydraulic Unit
92-93 B603-43-7A6
94-96 GA2G-43-7A6
6
Brkt, Mounting
B603-43-310F
7
Band, Wire
B603-43-CG1
8
Retainer, Bracket
E020-41-35X
Box, ABS Cont
92-93 EA01-67-650A
94-96 EA70-67-650B
AIR BAG SYSTEM
1
Sensor, Front
R EA70-57-K2XE
L EA70-57-K2YD
2
Sensor, Center
EA70-57-K1XB
3
Sensor, Inner
EA70-57-K40
4
Bracket, Front Sensor
USA R EA90-57-KX0C
L EA90-57-KY0C
Canada-Serviced w/Front Sensor
5
Bracket, Center Sensor
EA70-57-KX3A
6
Bracket, Inner Sensor
EA70-57-KX1
7
Module Unit, Diagnostic
EA70-67-7F0A
8
Module Assy, Driver Air Bag
EA70-57-K00D
9
Switch, Horn¶
BC1M-57-K0Z
¶Included w/Driver Air Bag Module Assy
10
Module, Pass Air Bag
EA70-K7X-02
Clockspring¶-See Steering Wheel/Column Section
¶Serviced w/Combination Switch
CRUISE CONTROL SYSTEM
Illustration Located in Next Column
1
Actuator Assy, Cruise
EA01-66-310A
2
Bracket, Actuator¶
EA01-66-3A1
3
Bracket, Cable¶
EA01-66-3A2A
4
Guide, Cable¶
BR70-66-3A8A
¶Included w/Cruise Actuator Assy
5
Cable
4 Cyl EA76-66-311
6 Cyl BR70-66-311E
6
Control, Cruise
EA01-66-320A
7
Block, Main Fuse
4 Cyl EA01-66-760
6 Cyl EA03-66-760
To Next Page
