MAZDA MX3 1992-96
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
72
madpl1_g01_
Page 72—April 22, 2004—13:29:52—Version Manufacturer
EMISSION SYSTEM Cont’d
1994-96
Man Trans ZPB9-18-881R
Auto Trans ZPC0-18-881R
6 Cyl 92-93 K801-18-881R
94 ZPC3-18-881R
¶Remanufactured Part. Contact Dealer for Core Charge & Exchange
Information
ELECTRICAL
ALTERNATOR
Alternator Assy¶
4 Cyl 92-93 B66S-18-300R-00
94-96 Z505-18-300R-00
6 Cyl KL11-18-300R-00
¶Remanufactured Part. Contact Dealer for Core Charge & Exchange
Information
Pulley, Alternator¶
4 Cyl B3C7-18-W10
6 Cyl K801-18-W11
¶Included w/Alternator Assy
Bracket, Alternator Mount
4 Cyl-Serviced w/Eng Upper Bracket
6 Cyl KL05-18-371B
Bracket, Alternator Adjust
4 Cyl BP01-18-361
6 Cyl KL01-18-360
Belt, Drive
4 Cyl B6BF-18-381-9U
6 Cyl K805-18-381B
BATTERY
Battery¶
0000-80-0035-WB
¶Order by Application
HORN
Horn
FB03-66-790A
IGNITION/FUEL
Coil, Ignition
B6S7-18-10XA
Module, Control¶
4 Cyl EA01-67-580
6 Cyl EA02-67-580
¶Order by Application

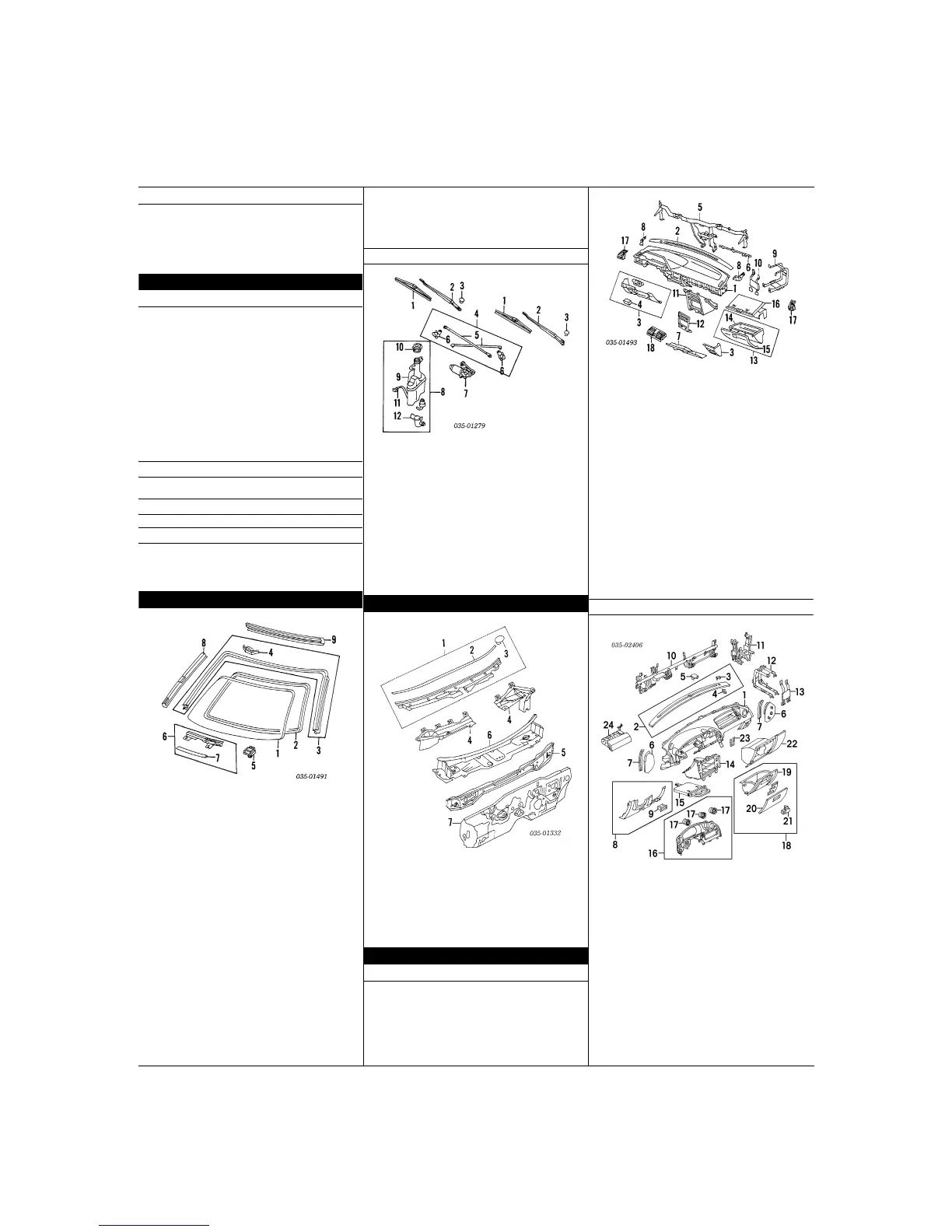

WINDSHIELD
1
Glass, Windshield
Mazda
Base Model EA01-63-901A
GS Model EA02-63-901A
2
Dam, Windshield
3120mm B481-50-894
3880mm J001-50-899A
4500mm GA7B-50-895
3
Moulding Assy, Surround
E040-50-601B
4
Clip, Moulding¶
R GA7B-50-6A6
L GA7B-50-6A7
¶Included w/Surround Moulding Assy
5
Spacer
R/L B455-50-891A
6
Retainer Assy, Glass
R EA01-50-G3X
L EA01-50-G3Y
7
Seal, Retainer¶-Serviced w/Glass Retainer Assy
¶Included w/Glass Retainer Assy
8
Protector, Moulding Side
R/L GA2A-50-6B2
9
Protector, Moulding Upper
To 8-1-91 GA2A-50-6B1
From 8-1-91 E016-50-6B1
Moulding, Inside Garnish
1992-93¶ R EA01-68-160A-06
L EA01-68-170A-06
1994-96 R EA17-68-160-06
L EA17-68-170-06
¶Gray listed, Order by Application
06 Gray; 28 Taupe
Mirror, Rear View
EA01-69-220
Cover, Mirror
M001-69-225A-00
Visor, Sun¶
w/Sunroof 92-93 R EA05-69-270C-07
L EA05-69-320C-07
94-96 R EA21-69-270C-07
L EA72-69-320-07
w/o Sunroof 92-93 R EA01-69-270C-07
L EA01-69-320C-07
94-96 R EA17-69-270C-07
L EA70-69-320-07
¶Gray listed, Order by Application
07 Gray; 28 Taupe
WIPER SYSTEM
1
Blade, Wiper
R NC11-67-330-9U
L BJ0E-67-330-9U
2
Arm, Wiper
R EA02-67-321
L EA01-67-321
3
Cap, Wiper Arm
R/L LA01-67-395C
4
Link Assy, Wiper
EA01-67-360B
5
Arm, Wiper Link¶
R BS34-67-362
L BS34-67-361
6
Pivot, Wiper¶
R EA02-67-363A
L BR71-67-364
¶Included w/Wiper Link Assy
7
Motor, Wiper
EA25-67-340
8
Tank Assy, Washer
B455-67-480A
9
Tank, Washer¶
B455-67-481A
10
Cap, Tank¶
B455-67-483
11
Pump, Washer¶
S084-76-672
12
Switch, Level¶-Not Serviced
¶Included w/Washer Tank Assy
Nozzle, Washer
R/L GA6B-67-510
COWL & DASH
1
Grille Assy, Cowl
EA01-50-790C
2
Protector, Grille¶
EA01-50-794A
3
Cap¶ (3)
M001-50-795B
¶Included w/Cowl Grille Assy
4
Plate, Baffle
R BS34-56-191A
L BS34-56-192A
5
Panel, Cowl Front
B481-70-62YC
6
Panel, Dash Upper
92-93 EA01-53-510D
94-96 EA70-53-510
7
Panel, Dash Lower
92-93 EA01-53-400
94-96 EA70-53-400B
INSTRUMENT PANEL
1992-93
Illustration Located in Next Column
1
Panel, Instrument¶
BS34-60-350H-02
2
Garnish, Upper
EA01-60-720A-02
3
Pad Assy, Lower
EA01-64-280-02
4
Louver, Lower Pad¶ (a)
FB01-64-850
¶Black listed, Order by Application
02 Black; 26 Taupe
(a) Included w/Lower Pad Assy
5
Crossmember, Inst Panel
EA01-60-420E
6
Reinforcement, Inst Panel
BR70-60-430
7
Cover, Under Dash
BR70-64-520A
8
Bracket, Inst Panel
R BR70-60-56X
L BR70-60-58X
9
Frame, Upper
BR70-60-610
10
Frame, Lower
BR70-60-620
11
Panel, Center Lower¶
EA01-64-270A-02
¶Black listed, Order by Application
02 Black; 26 Taupe
12
Panel, Finish
EA01-55-210A
13
Glove Box Assy¶
BR70-64-030A-02
¶Black listed, Order by Application
02 Black; 26 Taupe
14
Glove Box (a)
BR70-64-161A
15
Lid, Glove Box (a)
BR70-64-041-02
(a) Included w/Glove Box Assy
16
Cover, Glove Box
BR70-64-110
17
Grille, Vent Side¶
R B481-64-730A-00
L B481-64-830A-00
18
Grille, Vent Center¶
B481-64-930B-00
¶Black listed, Order by Application
00 Black; 26 Taupe
1994-96
1
Panel, Instrument
USA EA70-60-350E
Canada
w/Air Bag N.A.
w/o Air Bag N.A.
2
Garnish Assy, Upper
EA01-60-720A-02
3
Cover, Hole¶
B455-60-731-02
4
Spring¶ (11)
H260-64-343
¶Included w/Upper Garnish Assy
5
Cover, Center Hole
EA01-55-574-02
6
Panel, Side
R EA70-64-950B
L EA70-64-960B
7
Cover, Side Panel
R B481-64-912A
L B481-64-922A
8
Pad Assy, Lower
EA71-64-280
9
Louver, Lower Pad¶
BC1D-64-293A
¶Included w/Lower Pad Assy
10
Crossmember, Inst Panel
USA EA70-60-420B
Canada
w/Air Bag N.A.
w/o Air Bag N.A.
11
Bracket, Right Side
EA70-60-450B
12
Frame, Upper
BR70-60-610
To Next Page
