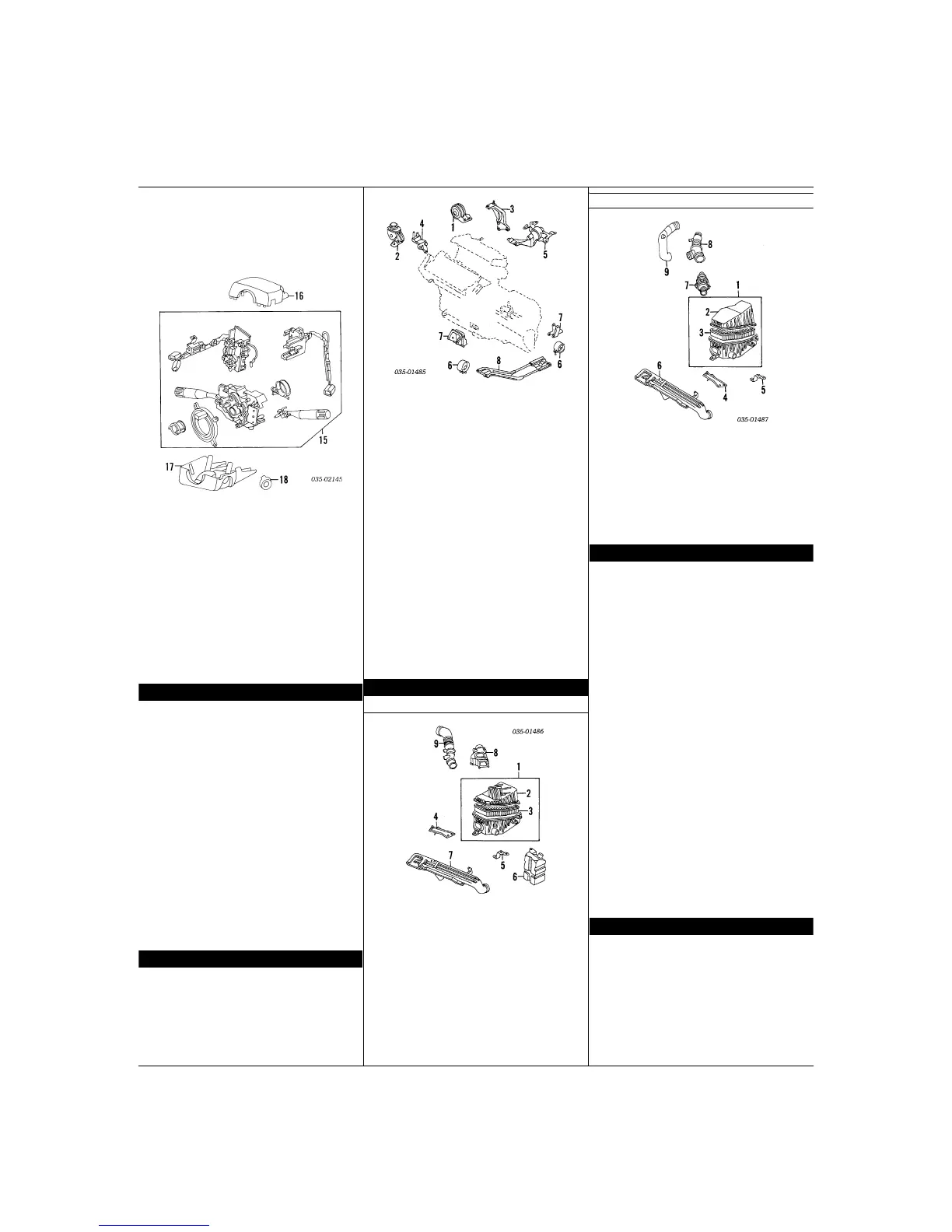

MAZDA MX3 1992-96
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
71
madpl1_g01_
Page 71—April 22, 2004—13:29:51—Version Manufacturer
w/Air Bag N.A.
w/o Air Bag N.A.
11
Shaft, Lower
USA EA70-32-090
Canada
w/Air Bag N.A.
w/o Air Bag N.A.
12
Bolt, Shaft (2)
B455-32-099A
13
Cover, Lever
EA01-32-215A
14
Retainer, Cover
BR70-32-210E
15
Switch, Combination
Base Model EA71-66-120B
GS Model EA70-66-120B
16
Cover, Upper
BC1D-60-221A
17
Cover, Lower
BC1D-60-230A
18
Grommet, Key Cylinder
LA01-60-261
Lock Assy, Ignition
USA
Man Trans EA70-76-290C
Auto Trans EA71-76-290C
Canada
Man Trans
w/Air Bag N.A.
w/o Air Bag N.A.
Auto Trans
w/Air Bag N.A.
w/o Air Bag N.A.
Switch, Ignition¶
USA FD01-66-151A
Canada
w/Air Bag N.A.
w/o Air Bag N.A.
¶Included w/Ignition Lock Assy
ENGINE/TRANS
Pulley, Crankshaft
4 Cyl 92-93 B587-11-401A
94-96 B6BF-11-401A
6 Cyl K801-11-400B
Cover, Timing
4 Cyl
1992-93
Upper (Assy) B630-10-510B
Lower (Assy) B630-10-500D
1994-96
Upper B6BF-10-511A
Center B6BF-10-521
Lower B660-10-501E
6 Cyl R KL01-10-500E
L KL01-10-510C
Seal, Timing Cover
4 Cyl
Upper
1992-93 (a) B630-10-512A
1994-96 B6BF-10-540B
Lower
1992-93 (b) B630-10-502B
1994-96-Serviced w/Lower Timing Cover Assy
6 Cyl KL01-10-530F
(a) Included w/Upper Timing Cover Assy
(b) Included w/Lower Timing Cover Assy
Pan, Eng Oil
4 Cyl 92-93 B366-10-400A
94-96 B6BF-10-400A
6 Cyl KL01-10-400
Sealant, Eng Oil Pan
8527-77-739
ENGINE/TRANS MOUNTS
Illustration Located in Next Column
Mount, Eng Upper
14 Cyl
1992-93 BR70-39-060B
1994-96
Man Trans B456-39-040C
Auto Trans EA76-39-060
2 6 Cyl EA03-39-060A
Bracket, Eng Upper
3 4 Cyl 92-93 B461-39-030C
94-96 BC1D-39-030D
4 6 Cyl EA03-39-030
5
Mount, Trans Upper
4 Cyl
Man Trans B596-39-100B
Auto Trans B599-39-100A
6 Cyl
Man Trans EA03-39-100B
Auto Trans 92-93 EA04-39-100C
94 EA71-39-100A
6
Mount, Eng Lower
4 Cyl
1992-93 R B456-39-040C
L B455-39-050B
1994-96
Man Trans R B456-39-040C
L B455-39-050B
Auto Trans R EA77-39-040A
L EA77-39-050
6 Cyl R EA03-39-040
L EA03-39-050
7
Bracket, Eng Lower
Man Trans
4 Cyl R B455-39-010B
L B455-39-020A
6 Cyl R BR74-39-010C
L EA03-39-020A
Auto Trans R B458-39-010F
L EA03-39-020A
8
Member, Eng Mounting
4 Cyl B455-39-800D
6 Cyl EA03-39-800C
AIR CLEANER
4 CYL
1
Cleaner Assy, Air
92-93 B66S-13-320
94-96 B6CK-13-320
2
Cover, Air Cleaner¶
92-93 B66S-13-Z01
94-96 B6CK-13-Z01
3
Element, Air Cleaner¶
K801-13-Z40-9U
¶Included w/Air Cleaner Assy
4
Bracket, Front
K801-20-210
5
Bracket, Rear
K801-20-220
6
Resonator
K801-13-19XB
7
Duct, Air Intake¶
92-93 K801-13-200C
94-96 K834-13-200B
¶Add'l Parts &/or Dealer Contact Required
8
Meter, Air Flow
92-93 B6S7-13-210R-0A
94-96 B6BF-13-215
9
Hose, Air Flow Meter
92-93 B66S-13-220
94-96 B6BF-13-220C
6 CYL
1
Cleaner Assy, Air
92-93 K801-13-320C
94 K834-13-320
2
Cover, Air Cleaner¶
92-93 K801-13-Z01
94 K834-13-Z01
3
Element, Air Cleaner¶
K801-13-Z40-9U
¶Included w/Air Cleaner Assy
4
Bracket, Front
K801-20-210
5
Bracket, Rear
K801-20-220
6
Duct, Air Intake
92-93 K801-13-200C
94 K834-13-200B
7
Meter, Air Flow
JE50-13-210R-00
8
Hose, Air Flow Meter
K801-13-220D
9
Duct, Resonator
92-93 K801-13-18XA
94 K834-13-18X
EXHAUST
Manifold, Exhaust
4 Cyl 92-93 B67K-13-450A
94-96 B6CK-13-451A
6 Cyl R KL01-13-4F0B
L K802-13-450C
Shield, Heat
4 Cyl 92-93 B67K-13-390B
94-96 B6CK-13-390D
6 Cyl
1992-93 R KL02-13-390A
L KL02-13-390A
1994
w/Calif Emission R KL50-13-3K0A
L KL50-13-390A
w/o Calif Emission R KL02-13-390A
L KL02-13-390A
Pipe, Front Exhaust
4 Cyl 92-93 BP04-40-500B
94-96 B6H7-40-500C
6 Cyl
1992-93 K801-40-500B
1994
w/Calif Emission K817-40-500
w/o Calif Emission K801-40-500B
Converter, Catalytic
4 Cyl
1992-93 B69T-20-600A
1994-96
w/Calif Emission B6DE-20-600B
w/o Calif Emission B6DC-20-600C
6 Cyl
1992-93 K802-20-600
1994
w/Calif Emission K834-20-600
w/o Calif Emission K802-20-600
Resonator
4 Cyl 92-93 B685-40-300B
94-96 B6G3-40-300C
6 Cyl K804-40-300D
Muffler
4 Cyl 92-93 B6E5-40-100A
94-96 B6G2-40-100A
6 Cyl
Man Trans K801-40-100D
Auto Trans K801-40-100D
EMISSION SYSTEM
Canister, Vapor
BP01-13-970
Bracket, Vapor Canister
B6S7-13-961
Valve, EGR
4 Cyl B6BF-20-300
6 Cyl K801-20-300A
Solenoid, EGR Control¶
4 Cyl B6BF-18-74X
6 Cyl 92-93 K801-18-740
94 K801-20-300A
¶Add'l Parts &/or Dealer Contact Required
Control Unit, EFI¶
4 Cyl
1992-93
Man Trans B66S-18-881R
Auto Trans B66T-18-881R
To Next Page
