Frame, Lower
BR70-60-620
14
Panel, Center Lower
EA70-64-270B
15
Holder, Cup
BC1D-64-39XC
16
Hood Assy, Meter
EA70-55-420A
17
Grille, Ventilator¶ (3)
EA71-64-930
¶Included w/Meter Hood Assy
18
Glove Box Assy
EA70-64-030E-02
19
Glove Box¶
EA70-64-030E-02
20
Lid, Glove Box¶
EA70-64-041A
21
Lock, Glove Box¶
BC1D-64-090C-02
¶Included w/Glove Box Assy
22
Cover, Glove Box
EA70-64-260C
23
Striker, Glove Box
BC1D-64-101
24
Module, Air Bag-See Air Bag System Section

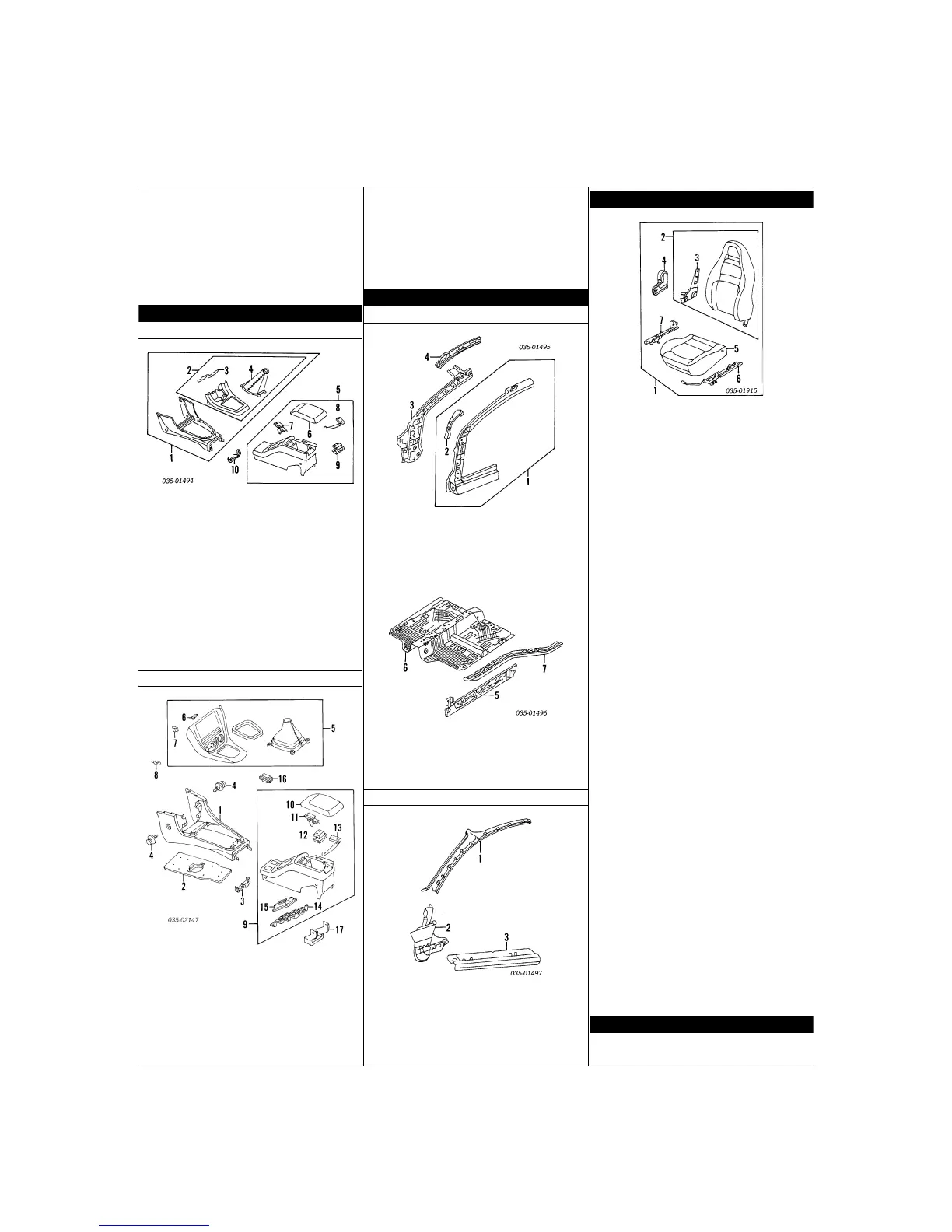

CENTER CONSOLE
1992-93
1
Console Assy, Front¶
Man Trans EA01-64-320A-02
Auto Trans B482-64-320E-02
¶Black listed, Order by Application
02 Black; 26 Taupe
2
Panel Assy, Center (a)
Man Trans EA01-55-220A
Auto Trans B482-55-220E
3
Plate (a) (b) (2)
FC01-55-257
4
Boot, Shift (a) (b)
Man Trans EA01-64-330A
(a) Included w/Front Console Assy
(b) Included w/Center Panel Assy
5
Console Assy, Rear (a)
EA01-64-420E-02
6
Lid, Console¶ (a)
EA01-64-450B-02
7
Lock, Console¶ (a)
EA01-64-45YB-00
8
Limiter, Lid¶ (a)
EA25-64-45ZC
9
Hinge, Lid¶ (a)
EA01-64-45XB-00
¶Included w/Rear Console Assy
(a) Black listed, Order by Application
00 Black; 26 Taupe
10
Bracket, Console
B455-64-326
1994-96
1
Console, Front
EA70-64-320A
2
Insulator, Console
Man Trans B455-68-643B
3
Bracket, Front Console
B455-64-326
4
Fastener, Front Console
R/L GJ21-68-885B-02
5
Panel Assy, Center
Man Trans EA70-55-210A
Auto Trans EA71-55-210A
Spring, Center Panel¶
6 Type A J001-55-219
7Type B
Man Trans (6) GA2A-64-343B
Auto Trans (8) GA2A-64-343B
¶Included w/Center Panel Assy
8
Bulb, Center Panel
0000-11-0074
9
Console Assy, Rear
EA25-64-420C-02
10
Lid, Console¶
EA01-64-450B-02
11
Lock, Console Lid¶
EA01-64-45YB-00
12
Hinge, Lid¶
EA01-64-45XB-00
13
Stopper, Lid¶
EA25-64-45ZC-00
14
Plate, Lid¶
EA25-64-433
15
Boot, Rear Console¶
EA25-64-432
¶Included w/Rear Console Assy
16
Cover, Hole
G188-55-225A
17
Bracket, Rear Console
EA25-64-426
ROCKER/PILLARS/FLOOR
SHEET METAL
1
Pillar Assy, Outer Hinge
R EAY1-70-210A
L EAY1-71-210A
2
Brace, Pillar¶
R EA01-70-290
L EA01-71-290
¶Included w/Outer Hinge Pillar Assy
3
Pillar, Inner Hinge
R EAY1-70-24X
L EAY1-71-24X
4
Rail, Roof-See Roof Section
Antenna
0000-81-930B-CR
5
Panel, Inner Rocker
R EA01-53-950B
L EA01-54-950B
6
Pan, Front Floor
92-93 BR70-53-600D
94-96 EA70-53-600
7
Rail, Front
92-93 R BR70-53-660C
L BR70-54-660B
94-96 R EA01-53-660
L EA01-54-660
INTERIOR TRIM
1
Mldg, Inside Garnish-See Windshield Section
2
Panel, Side Kick
R EA01-68-371A-02
L EA01-68-391A-02
3
Plate, Scuff
R/L EA01-68-710A-02
FRONT SEAT
1
Seat Assy¶
USA
4 Cyl 92-93 R EA01-57-100J-02
L EA01-57-150G-02
94-95 R EA70-57-100B-02
L EA70-57-150B-02
6 Cyl
1992-93 R EA03-57-100H-02
L EA03-57-150F-02
1994 R EA71-57-100B
L EA71-57-150B
Canada
1992-93
Base Model R/L N.A.
GS Model R/L N.A.
2
Back Assy, Seat¶ (b)
USA
4 Cyl 92-93 R EA01-88-130C-02
L EA01-88-180C-02
94-95 R EA71-88-130-02
L EA71-88-180-02
6 Cyl R EA70-88-130-02
L EA70-88-180-02
Canada
1992-93
Base Model R/L N.A.
GS Model R/L N.A.
1994
4 Cyl R EA71-88-130-02
L EA71-88-180-02
6 Cyl R EA70-88-130-02
L EA70-88-180-02
1995-96 R EA71-88-130-02
L EA71-88-180-02
¶Black/Blue listed, Order by Application
02 Black/Blue; 26 Dark Taupe
3
Adjuster, Recline (a) (b)
1992-93 R EA01-88-101
L BR70-88-151
1994-96 R EA70-88-101
L EA70-88-155
(a) Included w/Seat Back Assy
4
Cover, Adjuster¶ (b)
R BR70-88-127B-02
L BR70-88-177B-02
5
Cushion Assy, Seat¶ (b)
USA
4 Cyl 92-93 R EA01-88-110A-02
L EA01-88-160A-02
94-95 R EA71-88-110-02
L EA71-88-160-02
6 Cyl 92-93 R EA03-88-110-02
L EA03-88-160-02
94 R EA70-88-110-02
L EA70-88-160-02
Canada
1992-93
Base Model R/L N.A.
GS Model R/L N.A.
1994
4 Cyl R EA71-88-110-02
L EA71-88-160-02
6 Cyl R EA70-88-110-02
L EA70-88-160-02
1995-96 R EA71-88-110-02
L EA71-88-160-02
¶Blue/Black listed, Order by Application
02 Blue/Black; 26 Dark Taupe
6
Adjuster, Outer Slide (b)
1992-93 R EA01-88-152
L EA03-88-103
1994-96 R E040-88-152
L EA71-88-103
7
Adjuster, Inner Slide (b)
1992-93 R EA01-88-153
L EA03-88-102
1994-96 R EA70-88-153
L EA71-88-102
(b) Included w/Seat Assy
