MAZDA MX3 1992-96
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
67
madpl1_g01_
Page 67—April 22, 2004—13:29:45—Version Manufacturer

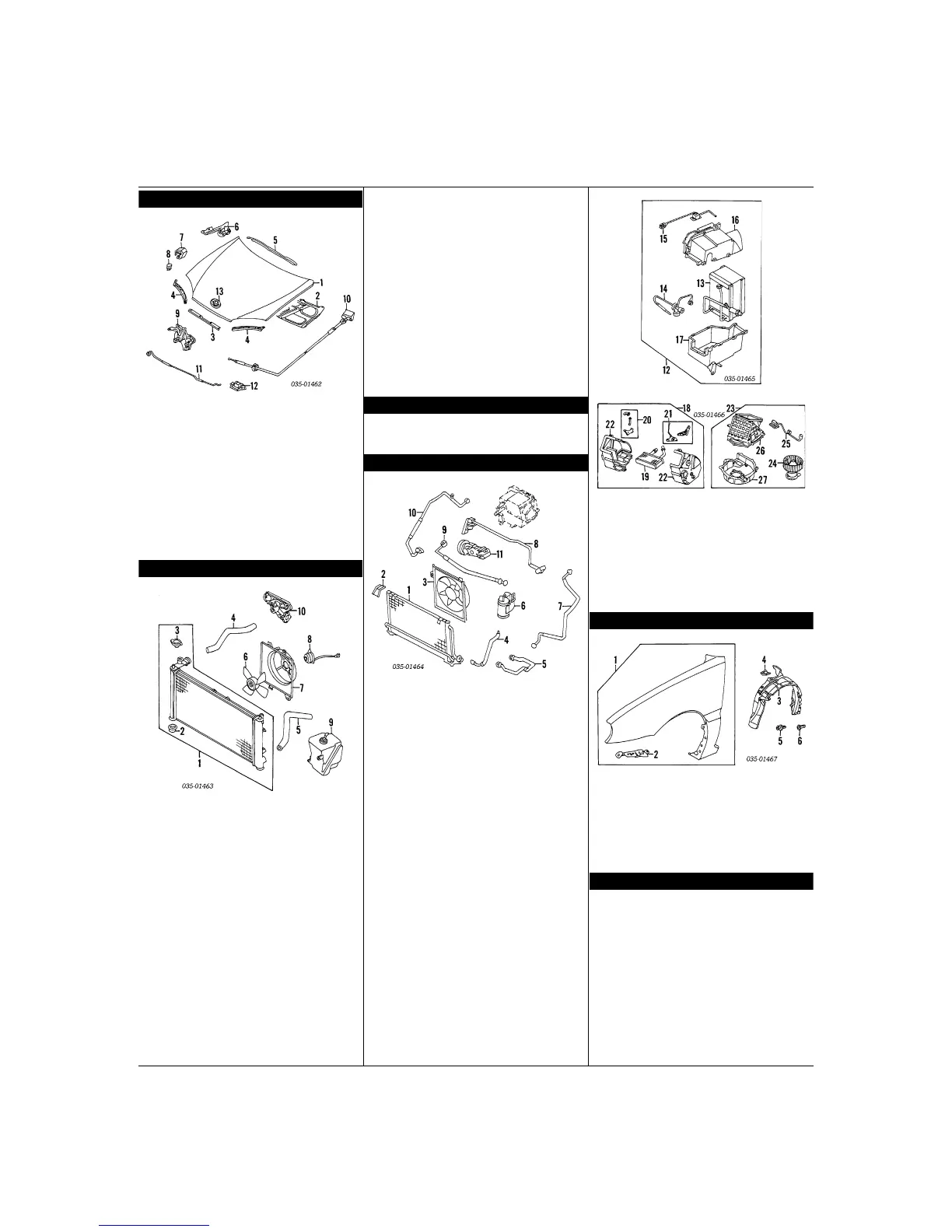

HOOD
1
Panel, Hood
EAY1-52-310B
2
Insulator
EA03-68-601C
3
Seal, Front
EA01-56-750
4
Deflector
R EA01-56-730B
L EA01-56-740B
5
Seal, Rear
B481-56-760
6
Hinge
R EA01-52-410B
L EA01-52-420B
7
Cushion
R/L EA01-56-78XC
Spacer, Rear
R EA01-56-76XA
L EA01-56-76ZA
8
Bumper, Rubber
R/L LA01-56-786A
9
Latch
EA01-56-620D
10
Cable, Release
EA01-56-720A
11
Rod, Prop
EA01-56-650
12
Holder, Rod
G144-52-518C
13
Emblem Assy
BB1H-51-730
Emblem¶
BB1H-51-731
Clip, Emblem¶ (2)
LA01-51-958
¶Included w/Emblem Assy
COOLING
1
Radiator Assy
4 Cyl
Man Trans 92-93 B69J-15-200
94-96 B6DC-15-200
Auto Trans 92-93 B66T-15-200C
94-96 B6DD-15-200B
6 Cyl
Man Trans K801-15-200D
Auto Trans 92-93 K802-15-200E
94 K835-15-200
2
Mount, Radiator¶
4 Cyl
1992-93
Man Trans R/L K804-15-202
Auto Trans R/L K802-15-202
1994-96 R/L B6DD-YV-SK1
6 Cyl R/L K801-15-202
3
Cap, Radiator¶
4 Cyl D316-15-205
6 Cyl 92-93 KF01-15-205
94 KL61-15-205
¶Included w/Radiator Assy
4
Hose, Rad Upper
4 Cyl B66S-15-186
6 Cyl K801-15-18X
5
Hose, Rad Lower
4 Cyl B66S-15-185
6 Cyl 92-93 K805-15-18Y
94 K834-15-185
6
Blade, Fan
4 Cyl
Man Trans E358-15-140
Auto Trans FEH5-15-140
6 Cyl
Man Trans K801-15-140
Auto Trans K802-15-140
7
Shroud, Fan
4 Cyl
Man Trans B66S-15-210
Auto Trans B66T-15-210
6 Cyl K801-15-210
8
Motor, Fan
4 Cyl
Man Trans B66S-15-150
Auto Trans B66T-15-150
6 Cyl K801-15-150
9
Tank Assy, Coolant
K801-15-350A
Cap, Tank¶
K801-15-355
¶Included w/Coolant Tank Assy
10
Pump, Water
4 Cyl 92-93 B3C7-15-010A
94-96 8ABB-15-010A
6 Cyl 92-93 8AK2-15-010
94 8AK2-15-010
Pulley, Water Pump
4 Cyl B3C7-15-131
6 Cyl 92-93 KL01-15-131
94 KL47-15-131
Belt, Drive-See Electrical Section
A/C REFRIGERANT CAPACITIES
A/C R-12 Refrigerant Capacity
1992-93: 28 Ozs (1.75 Lbs)
A/C R-134a Refrigerant Capacity
1994-96: 26.5 Ozs (1.65 Lbs)
A/C /HEATER
1
Condenser
EA01-61-480A
2
Bracket, Condenser
R/L EA01-61-47Y
3
Fan, Condenser
4 Cyl EA01-61-710A
6 Cyl EA03-61-710A
4
Pipe, Receiver/Drier
EA70-61-465
5
Pipe, Condenser
EA70-61-464
6
Receiver/Drier
EA70-61-500
7
Tube, Receiver/Drier
92-93 EA70-61-466
94-96 EA70-61-466
8
Tube, Evaporator
92-93 EA01-61-467A
94-96 EA70-61-467
9
Hose, Pressure
4 Cyl 92-93 EA76-61-461
94-96 EA76-61-461
6 Cyl 92-93 EA03-61-461A
94 EA70-61-461
10
Hose, Suction
4 Cyl 92-93 EA01-61-462A
94-96 EA76-61-462
6 Cyl 92-93 EA03-61-462A
94 EA70-61-462
11
Compressor
4 Cyl 92-93 EA01-61-450
94-96 EA76-61-450C
6 Cyl 92-93 EA03-61-450
94 EA70-61-450C
Illustration Located in Next Column
12
Evaporator Assy
92-93 BR70-61-520B
94-96 EA70-61-520
13
Core, Evaporator¶
BR70-61-J10A
14
Valve, Expansion¶
92-93 BR70-61-J14
94-96 BC1M-61-J14
15
Thermostat¶
BR70-61-J20
16
Case, Evaporator Upper¶
BR70-61-J01
17
Case, Evaporator Lower¶
BR70-61-J02
¶Included w/Evaporator Assy
18
Heater Assy
4 Cyl 92-93 EA01-61-130A
94-96 EA76-61-130
6 Cyl 92-93 EA03-61-130A
94 EA70-61-130
19
Core, Heater¶
4 Cyl BR70-61-A10
6 Cyl EA29-61-A10
20
Linkage, Temp¶
BR70-61-A20
21
Linkage, Mode¶
BR70-61-A30
22
Case, Heater¶
R/L EA01-61-A01-2
¶Included w/Heater Assy
23
Blower Assy
92-93 EA77-61-140
94 EA70-61-140
24
Fan & Motor, Blower (a)
BR70-61-B10
25
Resistor (a)
BR70-61-B15
26
Case, Blower Upper (a)
BR70-61-B01
27
Case, Blower Lower (a)
BR70-61-B02
(a) Included w/Blower Assy
FRONT FENDER
1
Fender Assy
R EAY1-52-100
L EAY1-52-200
2
Brkt, Lamp¶
R EA01-52-241
L EA01-52-251
¶Included w/Fender Assy
3
Shield, Splash
R EA01-56-131B
L EA01-56-141B
4
Clip, Shield (3/Side)
R/L B455-56-135
5
Rivet, Shield (2/Side)
R/L B455-56-143
6
Grommet (2/Side)
R/L B455-56-145
Emblem
"GS" R/L EA29-51-761-60
UNDERHOOD DIMENSIONS
Illustration Located in Next Column
