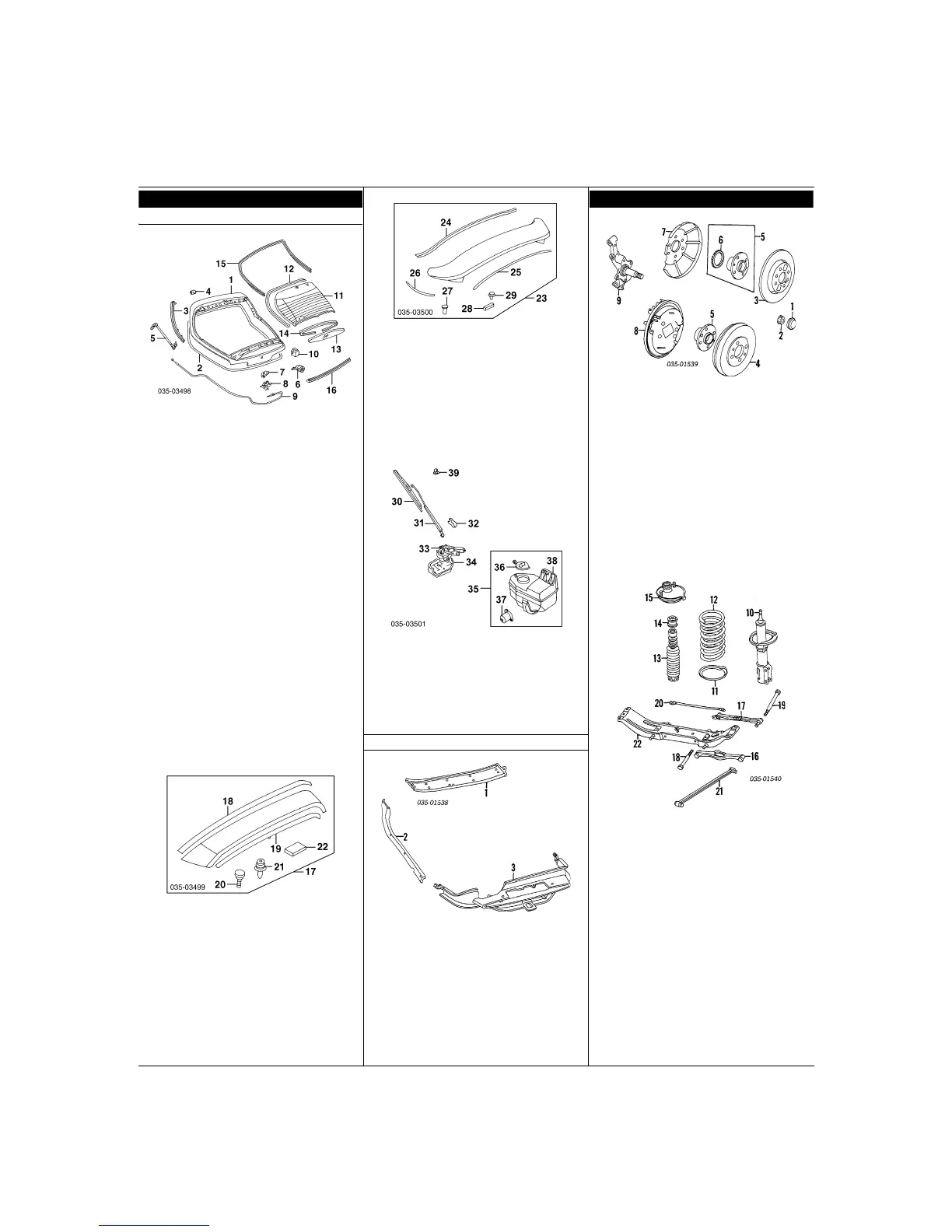

LIFTGATE
SHEET METAL
1
Shell, Liftgate
w/Rear Wiper EAY2-62-020A
w/o Rear Wiper EAY1-62-020A
2
Weatherstrip, Liftgate
EA01-62-761C
3
Seal, Liftgate
R EA01-62-870A
L EA01-63-870A
4
Hinge
R/L EA01-62-210C
5
Stay, Liftgate
USA
4 Cyl
w/Rear Wiper R 8BE1-62-620B
L 8BE1-63-620B
w/o Rear Wiper R/L 8BE4-62-620B
6 Cyl
w/Rear Wiper R 8BE2-62-620B
L 8BE2-63-620B
w/o Rear Wiper R 8BE3-62-620B
L 8BE3-63-620B
Canada
4 Cyl R/L N.A.
6 Cyl R/L N.A.
6
Cylinder w/Keys
EA01-76-260A
7
Striker
EA01-62-361A
8
Latch
EA01-62-310C
9
Cable, Release
EA02-56-870
10
Guide
R EA01-62-681B
L EA01-63-681B
11
Glass, Liftgate Upper
Mazda
w/Rear Wiper EB21-63-930
w/o Rear Wiper EA01-63-930D
12
Dam, Upper Glass
92-93 E016-50-899A
94-95 E016-50-899A
13
Glass, Liftgate Lower
Mazda EA01-63-960C
14
Dam, Lower Glass
GA7B-50-894
Emblem
"MAZDA" EA25-51-711
"MX-3" 92-93 EA25-51-721
94-96 EA25-51-721A
"V6" E018-51-771A
"Precidia"
Canada N.A.
15
Moulding, Upper Reveal
EA01-50-611D
16
Moulding, Lower Reveal
EA01-50-612D
17
Garnish Assy, Liftgate
EA01-50-810B
Protector, Garnish¶
18 Upper EA01-50-813B
19 Lower EA01-50-814
20
Bolt, Garnish¶ (8)
EA01-50-854B
21
Clip, Garnish¶
G043-50-742
22
Cushion, Garnish¶ (4)
EA01-50-818
¶Included w/Liftgate Garnish Assy
Illustration Located in Next Column
23
Spoiler Assy, Rear¶
EA02-V4-920
¶Black listed, Order by Application
D2 Creek Blue MC; J4 Passion Rose;
PT Chaste White; PZ Brilliant Black;
SQ Blaze Red; UF Clear White;
Z1 Bluish Green Metallic; 3L Silver Stone Metallic
4R Passion Yellow Mica; 6C Mighty Gray;
6M Elegant Beige; 6V Raspberry Metallic
29 Sparkle Green M
24
Protector, Upper (a)
EA03-51-966B
25
Protector, Lower (a)
EA03-51-967
26
Protector, Side (a)
R/L EA03-51-968
27
Fastener, Spoiler (a)
GJ21-51-964
28
Cushion (a)
Inner R/L EA03-51-972A
Outer R/L EA03-51-982A
29
Bolt, Spoiler (6)
9983-30-508
(a) Included w/Rear Spoiler Assy
30
Blade, Wiper
EA05-67-330A
31
Arm, Wiper
EA01-67-421A
32
Cover, Arm
B093-76-641
33
Motor, Wiper
EA01-67-450B
34
Cover, Motor¶
EA01-67-459A-02
¶Black listed, Order by Application
35
Tank Assy, Washer
B467-67-480C
36
Cap, Tank¶
UB39-51-815
37
Pump, Washer¶
8532-76-672
38
Tank, Washer¶
B467-67-481C
¶Included w/Washer Tank Assy
39
Nozzle, Washer
EA02-67-510
INTERIOR TRIM
1
Panel, Trim Upper¶
E040-68-930C-00
2
Panel, Trim Side¶
R EA01-68-940E-02
L EA01-68-950E-02
3
Panel, Trim Lower¶
USA
w/Rear Wiper E018-68-960C-02
w/o Rear Wiper EA01-68-960C-02
Canada N.A.
¶Black listed, Order by Application
REAR SUSPENSION
1
Cap, Dust
R/L B455-26-071
2
Nut, Axle
R/L GJ21-33-042B
3
Rotor, Brake
R/L BB4C-26-251C
4
Drum, Brake
R/L D102-26-251
5
Hub Assy
w/ABS R/L B603-26-15XA
w/o ABS R/L B455-26-15XA
6
Ring, Sensor¶
R/L B603-26-471A
¶Included w/Hub Assy
Caliper, Brake
w/Pads R EAY6-26-98ZR
L EAY6-26-99ZR
w/o Pads R/L EAY6-26-98ZR
7
Shield, Splash
R/L B613-26-261A
8
Plate, Backing
R B596-26-280B
L BC1D-26-290A
9
Spindle
4 Cyl R B455-26-111D
L B455-26-115D
6 Cyl
w/ABS R B603-26-111
L B603-26-115B
w/o ABS R B461-26-111B
L B461-26-115B
10
Strut¶
4 Cyl
w/ABS R E026-28-700B
L E026-28-900B
w/o ABS R EA02-28-700B-9U
L EA02-28-900B-9U
6 Cyl
w/ABS R E026-28-700B
L E026-28-900B
w/o ABS R EA02-28-700B-9U
L EA02-28-900B-9U
¶Order by Application
11
Seat, Spring
R/L B455-28-0A3
12
Spring, Coil¶
R/L EA01-28-011
¶Order by Application
13
Boot, Dust
R/L B455-28-111A
14
Stopper, Rubber
R/L B455-28-340A
15
Insulator, Mounting
4 Cyl R/L B595-28-390A
6 Cyl R/L B595-28-390A
16
Link, Front Lateral
R E016-28-620B
L E016-28-630B
17
Link, Rear Lateral
R/L EA01-28-600
Bolt, Lateral Link
18 Front R/L B528-28-112A
19 Rear R/L B455-28-113
20
Rod, Strut
6 Cyl E018-28-671A
21
Link, Trailing
4 Cyl R BR74-28-200A
L BR74-28-250
To Next Page
