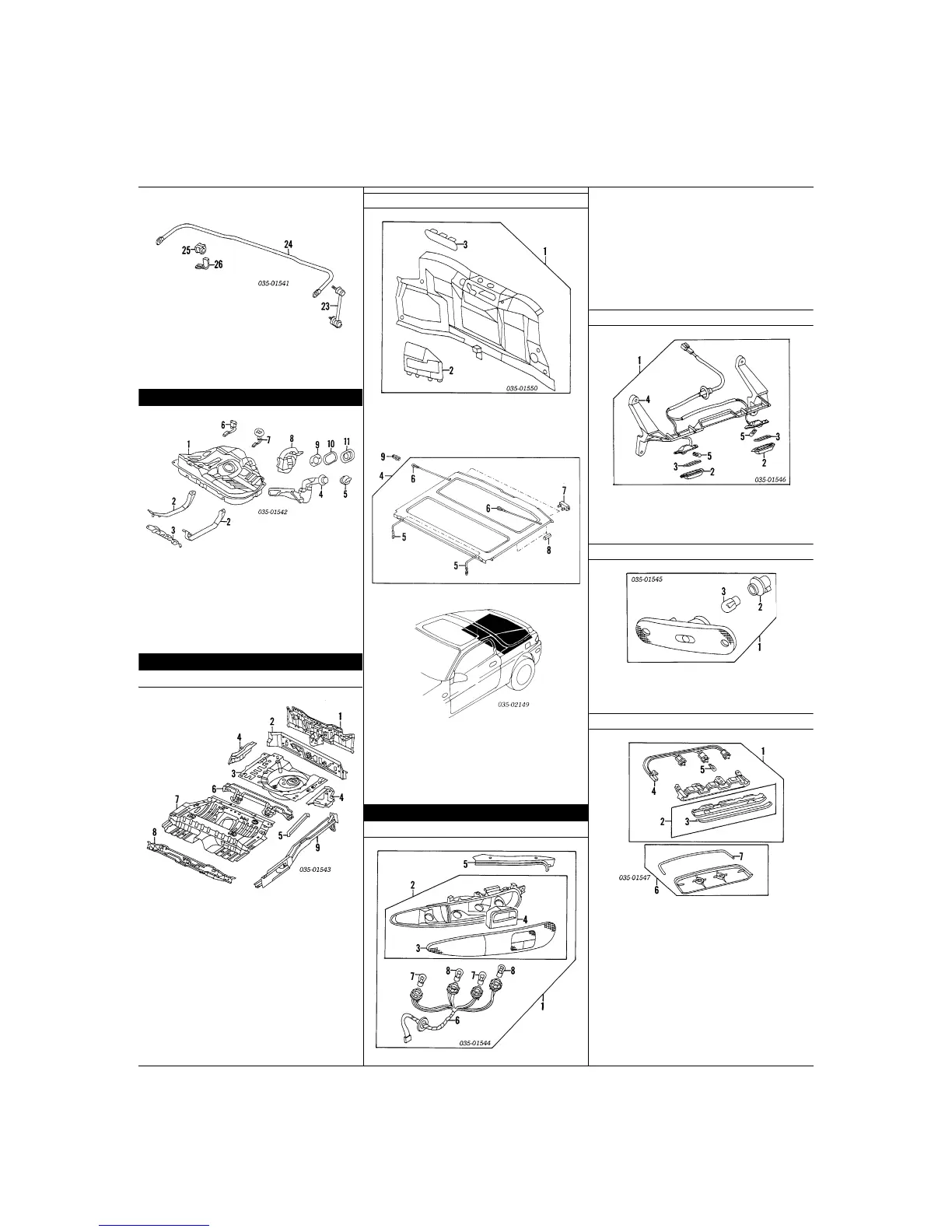

MAZDA MX3 1992-96
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
77
madpl1_g01_
Page 77—April 22, 2004—13:30:00—Version Manufacturer
6 Cyl R EA01-28-200
L EA01-28-250
22
Crossmember
E016-28-400A
23
Link, Stabilizer Bar
R/L EA01-28-170B
24
Bar, Stabilizer
4 Cyl EA01-28-151C
6 Cyl EA03-28-151C
25
Bushing, Bar
R/L BW0A-28-156A
26
Bracket, Bushing
R/L E016-28-15YB
FUEL TANK
1
Tank, Fuel
BR93-42-110B
2
Band, Tank Mtg
R B467-42-710F
L BR93-42-720B
3
Insulator, Tank
B455-42-751A
4
Pipe, Filler
EA01-42-210
5
Cap, Filler
GN60-42-250
6
Gauge, Fuel Tank
B475-60-960A
7
Pump, Fuel
B3E7-13-35ZB
8
Protector, Pipe
B467-42-291A
9
Gasket, Pipe
BF71-42-243
10
Seal, Pipe
B455-42-244
11
Cover, Lever
B455-42-242A
REAR BODY
SHEET METAL
1
Panel, Rear Body
EA01-70-750C
2
Panel, Lower
B467-53-940D
3
Pan, Rear Floor
BR93-53-730C
4
Extension, Floor Pan
R B467-53-740F
L B467-54-741C
5
Reinforcement, Side
R B455-53-715A
L B455-54-715A
6
Crossmember, Rear
B467-53-930D
7
Pan, Center Floor
BR93-53-720D
8
Crossmember, Center
B455-53-900F
9
Rail, Frame
R EA01-53-810G
L EA01-54-810F
INTERIOR TRIM
1
Panel Assy, Trim (a)
EA01-68-89XB-02
2
Cover, Jack¶ (a)
B467-68-8S0A-02
3
Cover, Center¶ (a)
B499-68-893-02
¶Included w/Trim Panel Assy
(a) Black listed, Order by Application
4
Cover Assy, Luggage Compartment¶
EA01-68-310C-02
¶Black listed, Order by Application
02 Black; 26 Dark Taupe
5
Strap, Front (a)
R/L B467-68-315
6
Strap, Rear (a)
R/L EA02-68-315
7
Rubber, Cushion (a)
R/L B060-68-318
8
Pad, Cover (a) (2/Side)
R/L B060-68-318
(a) Included w/Luggage Compartment Cover Assy
9
Hanger, Strap
R/L E016-68-301
REAR LAMPS
COMBINATION LAMP
1
Lamp Assy, Combination
R 8BE6-51-150
L 8BE6-51-160
2
Lens & Body Assy¶
R E016-51-170C
L E016-51-180C
3
Lens¶ (a)
R E016-51-151C
L E016-51-161C
4
Housing¶ (a)
R EA01-51-176
L EA01-51-186
(a) Included w/Lens & Body Assy
5
Bezel¶
R EA01-51-174A
L EA01-51-184A
6
Socket & Wire¶
R/L EA01-51-155
7
Bulb, Single Element¶
R/L 0000-11-0194
8
Bulb, Dual Element¶
R/L 0000-11-1157
¶Included w/Combination Lamp Assy
LICENSE LAMP
1
Lamp Assy, License
8BE1-51-270
2
Lens¶
R/L G225-51-274B
3
Gasket¶
R/L G225-51-273
4
Bracket, Lamp¶
R/L EA01-51-261A
5
Bulb¶
R/L 0000-11-0194
¶Included w/License Lamp Assy
SIDE MARKER LAMP
1
Lamp Assy, Side Marker
R EA01-51-5H0
L EA01-51-5J0
2
Socket¶
R/L BW3N-51-584
3
Bulb¶
R/L 0000-11-0194
¶Included w/Side Marker Lamp Assy
HIGH MOUNT STOP LAMP
1
Lamp Assy, Stop
E016-51-580C
2
Lens Assy¶
E016-51-58XB
3
Bezel, Lens¶ (a)
E016-51-589A
(a) Included w/Lens Assy
4
Socket & Wire¶
E016-51-584
5
Bulb¶ (3)
0000-11-0921
¶Included w/Stop Lamp Assy
6
Cover Assy, Lamp (a)
E016-51-58YB-02
(a) Black listed, Order by Application
02 Black; 26 Taupe
7
Gasket¶
E016-51-582B
¶Included w/Lamp Cover Assy
