Status LED information

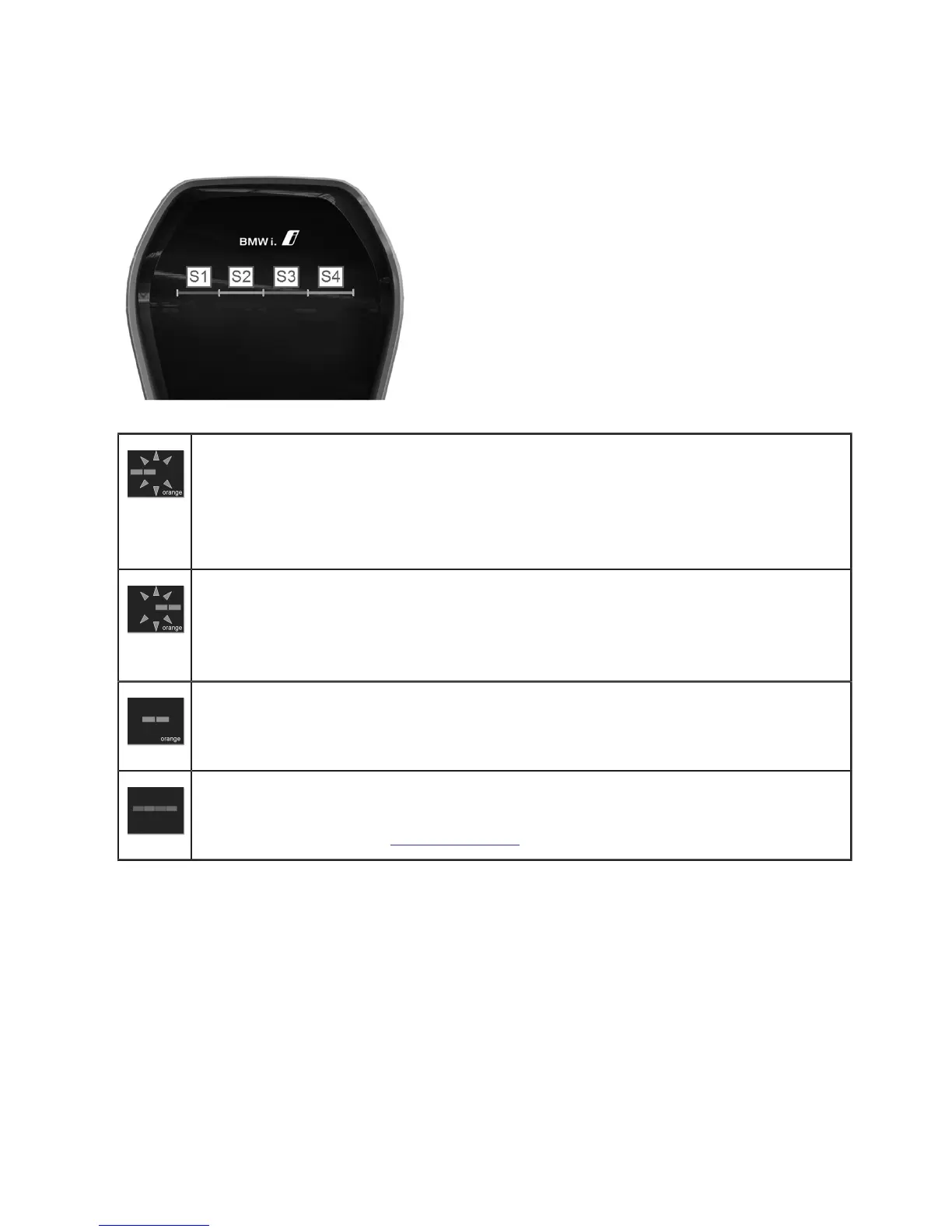

Status LED segments
The status LED provides information on the
current state of the Wallbox. It consists of
4 segments, S1 to S4, which may be lit or flash in
various colours together or individually.
The status LED will only be visible when the
power supply is active and will be hidden when
the Wallbox has not been authorised.
Unless otherwise stated, all 4 segments will be lit
together.
Limited charging current due to domestic connection monitoring
If the "domestic connection monitoring" function is used, segments S1 and S2 of the
status LED will flash in orange if the connection to the energy meter is lost.
The charging current will be reduced to 10 A until the connection to the energy meter is
restored.
Temperature cut-out
If the maximum temperature limit of the Wallbox is exceeded, the charging process will be
temporarily stopped, and segments S3 and S4 of the status LED will flash in orange.
After the cooling phase the charging process will restart automatically.
Commissioning mode
When commissioning mode is active, segments S2 and S3 of the status LED will be lit in
orange.
Faults
If faults occur, they will be indicated by the status LED and special colour codes. For
further details, see section "Troubleshooting".
