Installing the terminal panel cover
Note
Check whether an up to date version of the software is available before you install the terminal
panel cover. For further information, see section SOFTWARE UPDATE.
Note
The Wallbox must not be permanently commissioned if this cover is missing or damaged.
Alternative covers must not be used.

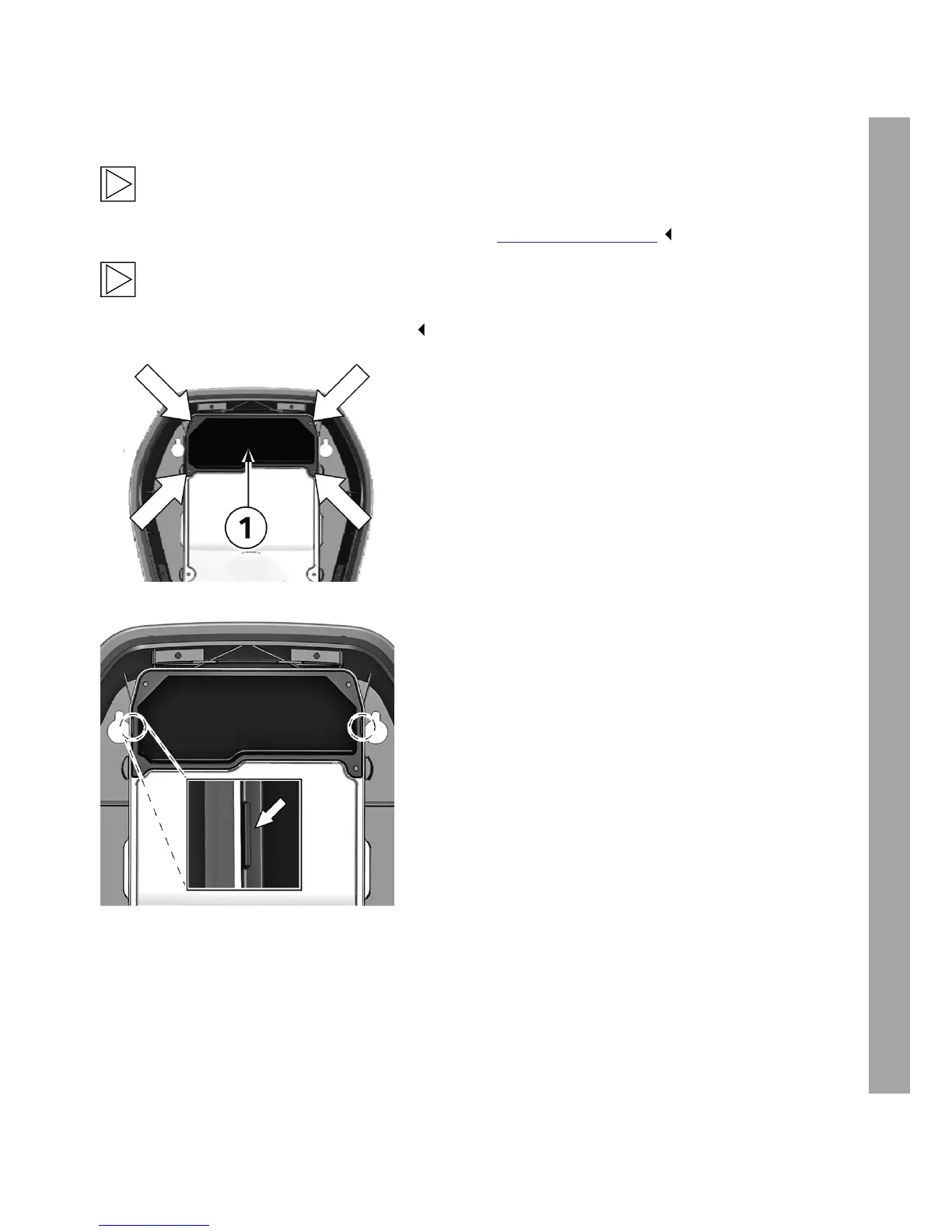

Fastening screws
1. Insert the terminal panel cover 1 again.
2. Install the terminal panel cover again using the
four screws.
Housing marking
1. Tighten the four screws until the housing
markings on the right and left of the terminal
panel cover are flush with the housing.
2. The terminal panel cover must correctly seal
the housing.
Increased force is required for the self-tapping
screws: 3.5Nm.
