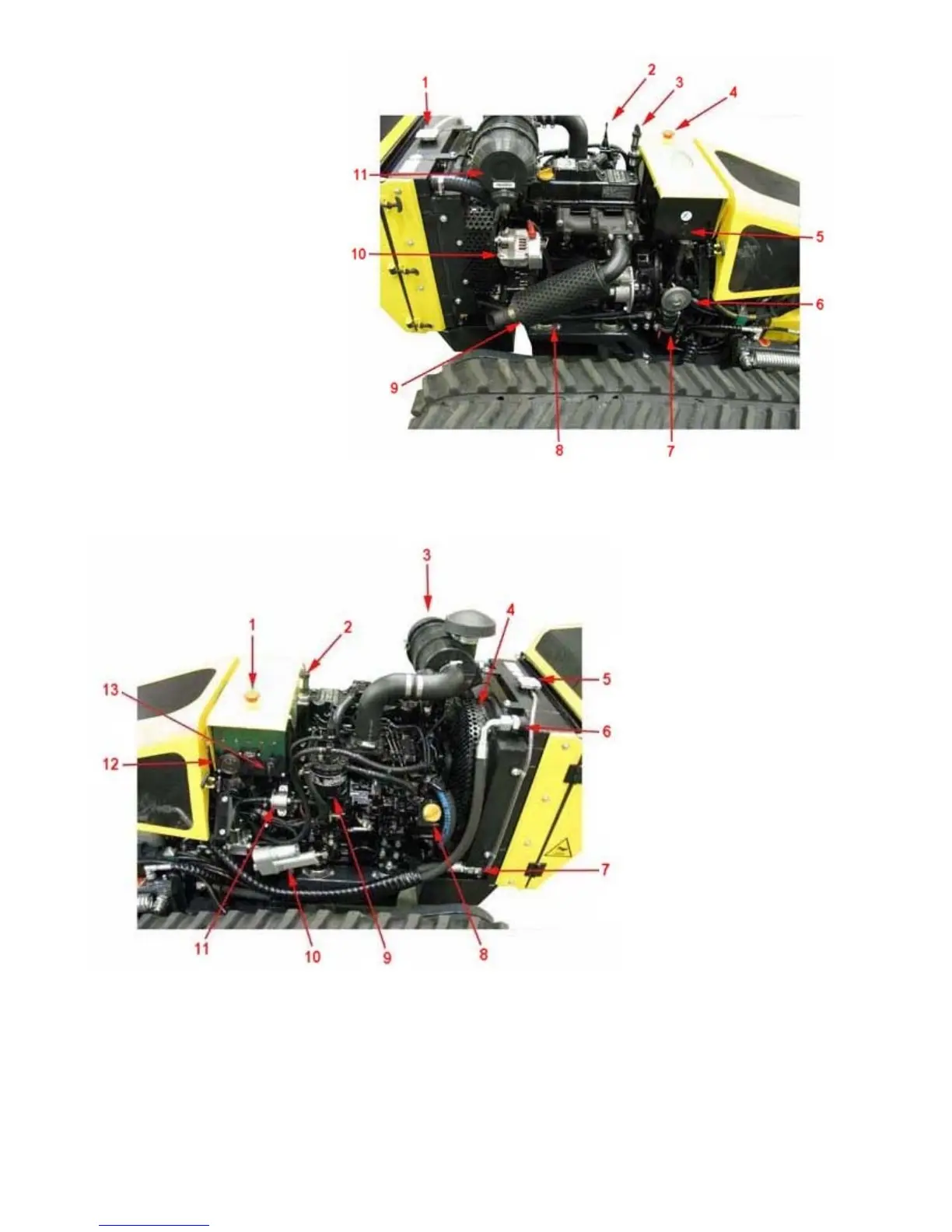

Engine Right Side View ►
1. Radiator Filler
2. Radio Control Antenna
3. Warning Beacon Mount
4. Emergency Stop Switch
5. Electric Plug for Services (12V)
6. Horn
7. Electric Compressor
(Self-Cleaning Radiator Fan)
8. Ant-vibration Engine Support
9. Exhaust Pipe
10. Alternator (12V)
11. Air Filter
◄ Engine Left Side View
1. Emergency Stop Switch
2. Warning Beacon Mount
3. Air Filter
4. Radiator Fan Guard
5. Radiator Filler
6. Oil Cooler Input
7. Oil Cooler Output
8. Engine Oil Filler Plug
9. Secondary Fuel Filter
10. Electric Actuator
11. Electric Pump
12. Temperature Gauge
(Engine Coolant)
13. Ignition Key
