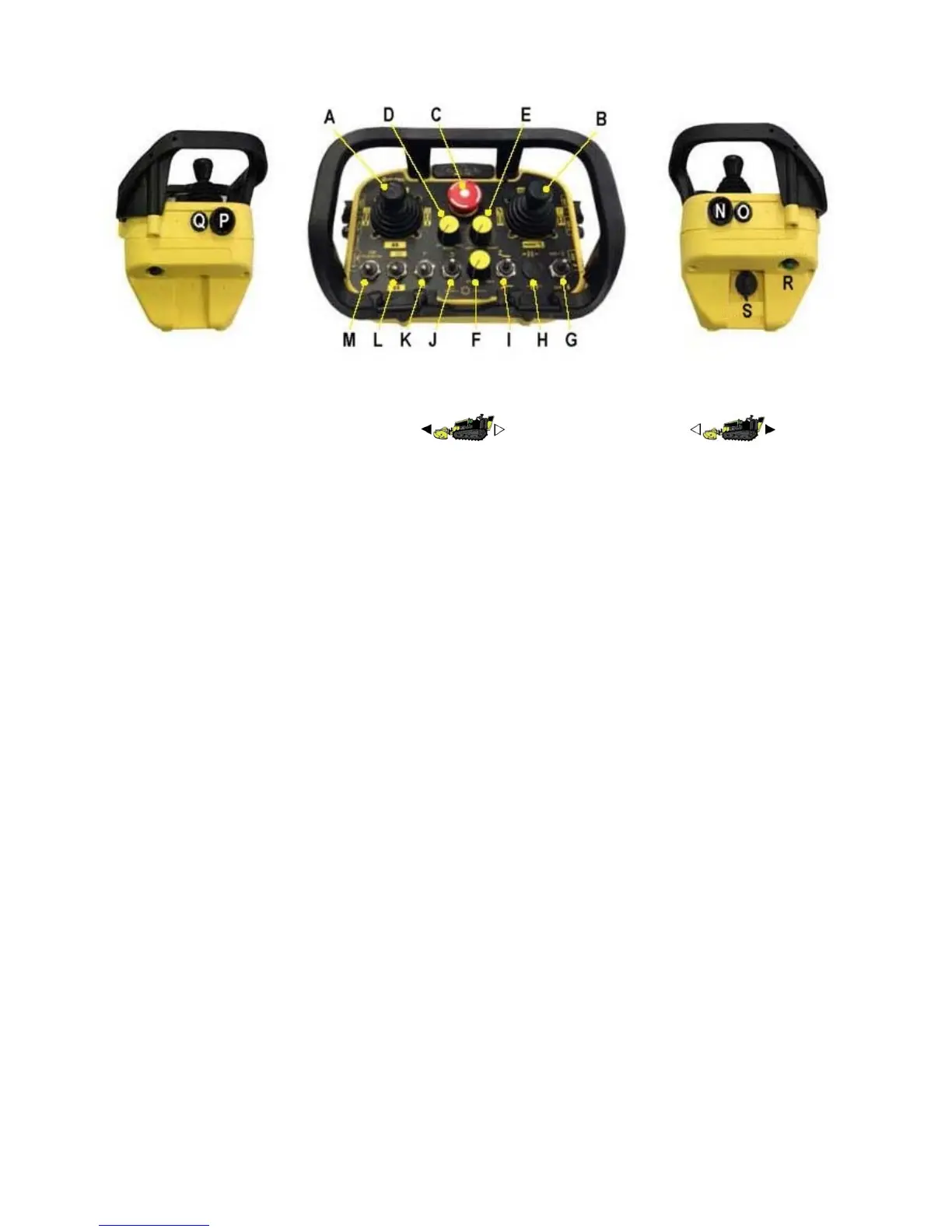

Radio Control Unit – Control Locations & Functions
A. Left Joystick
▲ ▲
Drive (Forward) O Default O Drive Swap Mode
Drive (Reverse) switch L activated
B. Right Joystick
Steering (Left / Right) ◄O►
Flail Head (Up / Down)
C. Power ON / Emergency Stop Button
D. Speed Control
E. Steering Bias
F. Flail Head Pump Control (Rotor Speed)
G. Auxiliary #1
H. Auxiliary #2
I. Front Hood
J. Rotor Direction Selector
K. Gear Selector
L. Direction Swap
M. Fan Reverse Control (Radiator Self-Clean)
N. Engine Stop
O. Engine Start
P. Engine Revs (+)
Q. Engine Revs (-)
R. Connection / Horn
S. S-Key (Codified Key)
To Next Page
