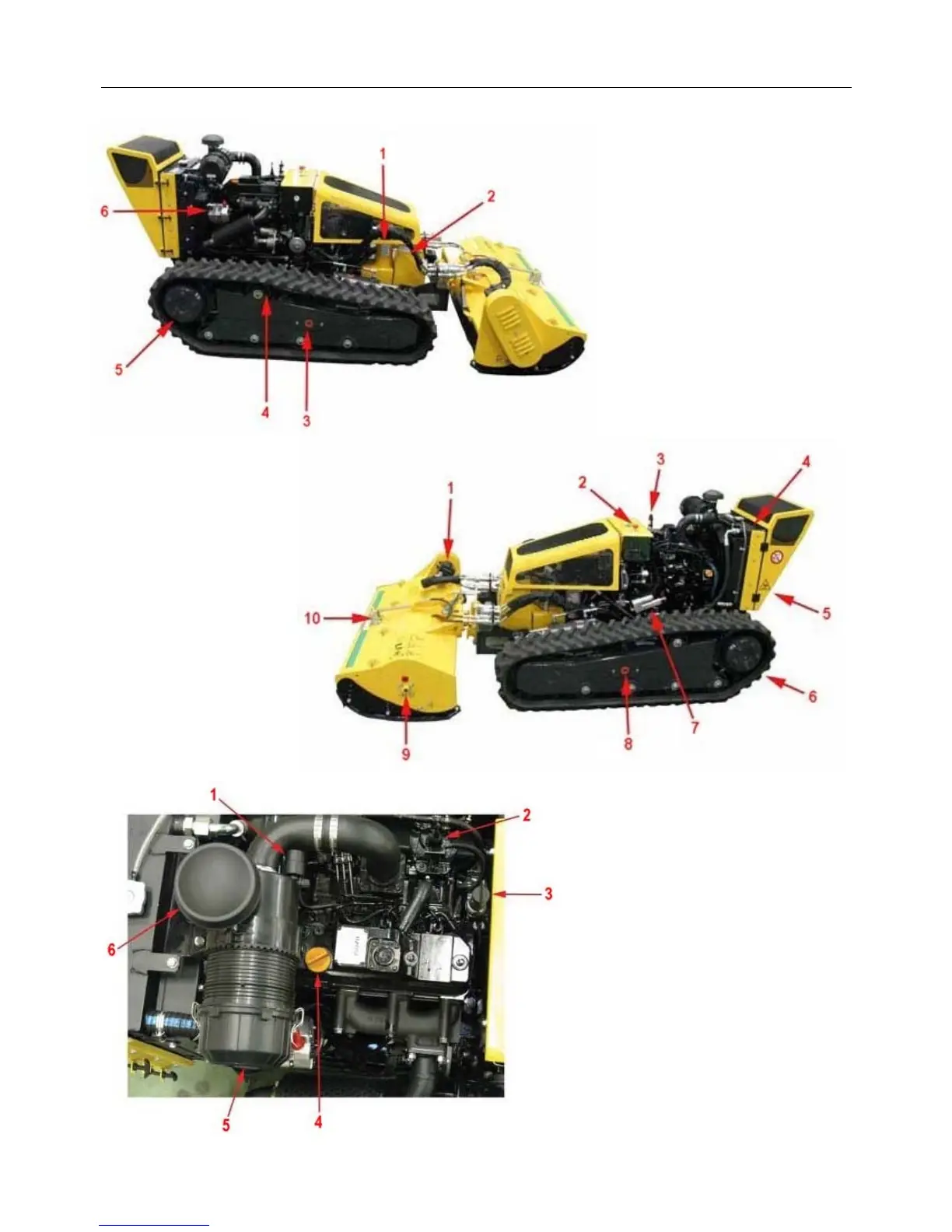

MACHINE OVERVIEW – Component Identification
Right Side View
1. Oil Tank
2. Diesel Fuel Tank
3. Track Tensioner Access
4. Track Roller
5. Drive Wheel
6. Alternator (12V)
Left Side View
1. Hydraulic Motor
2. Electrics
3. Warning Beacon Mount
4. Water / Oil Radiator
5. Conveyor & Radiator Guard
6. Rubber Tracks
7. Electric Actuator
8. Track Tensioner Access
9. Lubrication Point
10. Hydraulic Ram (Front Hood)
Engine Top View
1. Air Filter Clogging Sensor
2. Radio Control Antenna
3. Warning Beacon Mount
4. Engine Oil Filler Plug
5. Air Filter
6. Air Filter Breather
