23

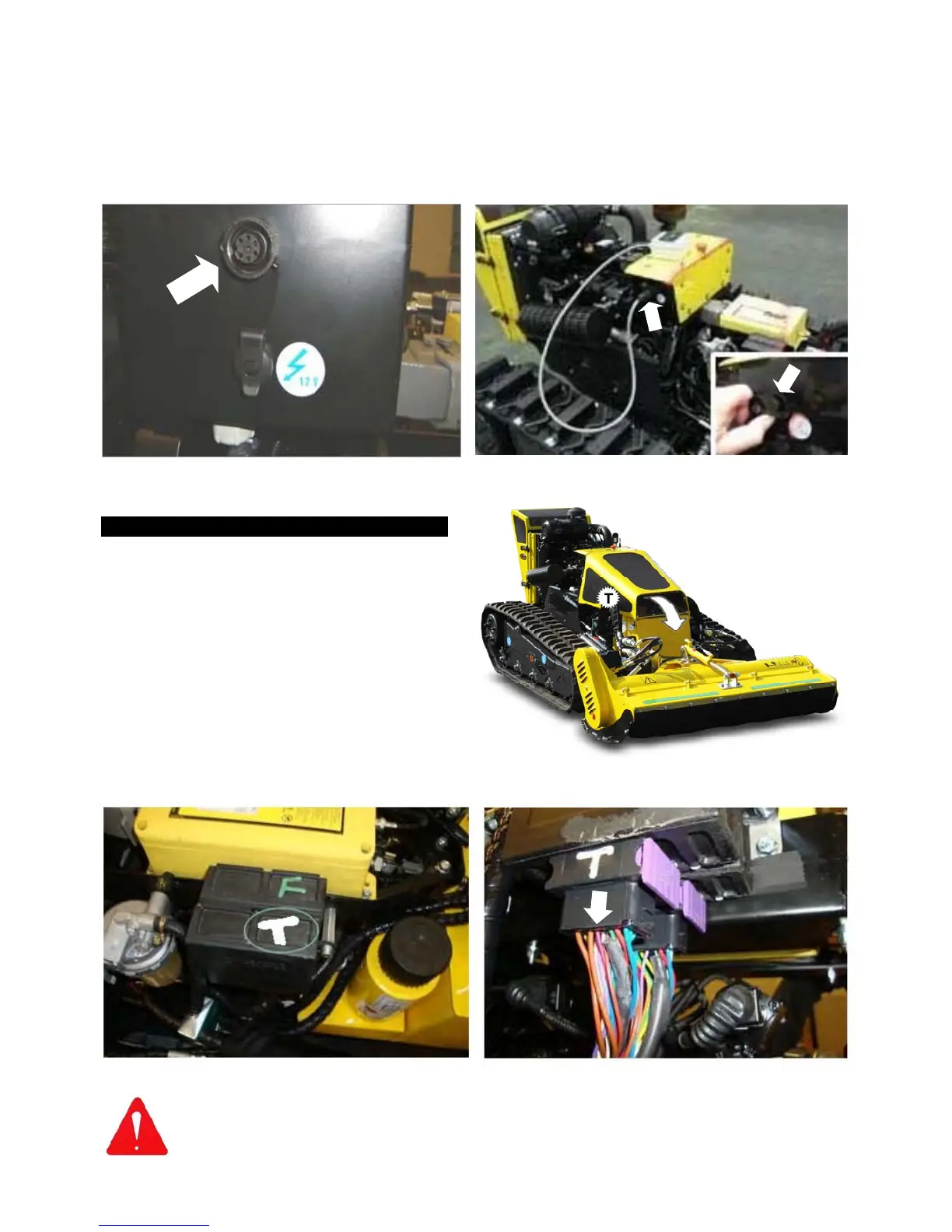

Location of Brake Control Module (T)
Converting the Machine for use with the Manual Control Unit
The method of adapting the machine for use with the manual control unit requires attachment of
the Control Unit and deactivation of the Brake Control Module; the procedures are as follows;
Control Unit Attachment
Connect the manual c ontrol unit to its connection poi nt on the elec tronic ignition box, this point
is located on the right hand side of the machine as shown in the photos below.
Deactivating the Brake Control Module
Machine builds prior to Serial No. 011400323 only
Under nor mal operating condit ions when
using the remote control, movement of the
joystick sends a s ignal to the brake system
instructing it to release the brakes.
When using the manual contr ol unit the
brake controller must be bypass ed to allow
the brakes to release, this is achieved by
disconnecting the wiri ng loom from the
brake control module.
The brake control modul e is loc ated under
the bonnet on the right hand side of the
machine – indicated ‘T ’ in the photographs
opposite and below.
Note: Failure to disconnect the Brake Control Module will result in the engine
stalling when attempting to transport the machine in Manual Control Mode.
Location of connection point for the Manual Control Unit Remove dust cover and plug unit into the connection point
Brake Control Module identification (indicated ‘T’) Disconnect the wiring loom plug from the Brake Control
Module to allow machine operation with Manual Control
