Hydraulic oil tank filler location
Hydraulic Oil Replacement and Filter Change
Hydraulic Oil Tank Capacity: 18 Litres
Complete System Capacity: 28 Litres
The procedure for changing the hydraulic oil and filter is as follows;
Remove the protection plate from the underside of the hydraulic oil tank.
Note: Removal of the plate allows access to both the hydraulic tank drain plug and the fuel
tank drain plug – identify the correct plug before continuing to the next step.
Remove drain plug and release the oil into a suitable container.
When the oil has drained completely, replace drain plug and refit protection plate.
Unscrew and remove the hydraulic oil filter, this is located under the bonnet on the left hand
side of the machine – the filter can be removed by using either a filter wrench or a
hexagonal 19mm spanner.
Fit new hydraulic oil filter and tighten securely – take care not to over tighten.
Note: Always replace filters at the intervals stated in the maintenance schedule using quality
original filters as specified and supplied by the manufacturer.
Refill the hydraulic oil tank with ‘PANOLIN HLP SYNTH 46’
hydraulic oil – check using the dipstick until the level is
correct.
Start engine and allow it to run for 2 minutes.
Stop engine and re-check oil level on the dipstick, top up if the
level has dropped.
Check all components and covers are tightly secured before
using the machine.

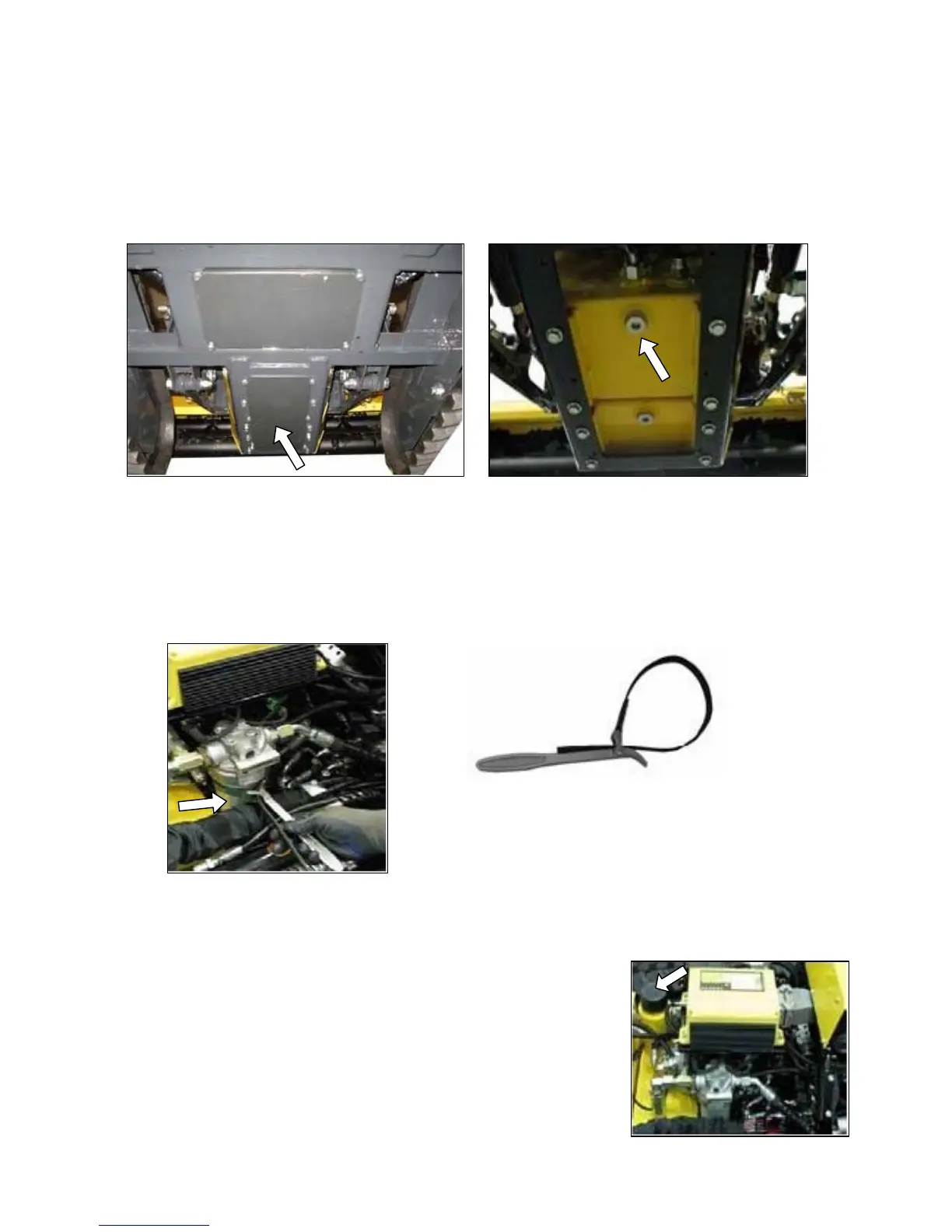

Filter Wrench ►
◄ Hydraulic oil filter location
Tank protection plate Hydraulic oil tank drain plug
