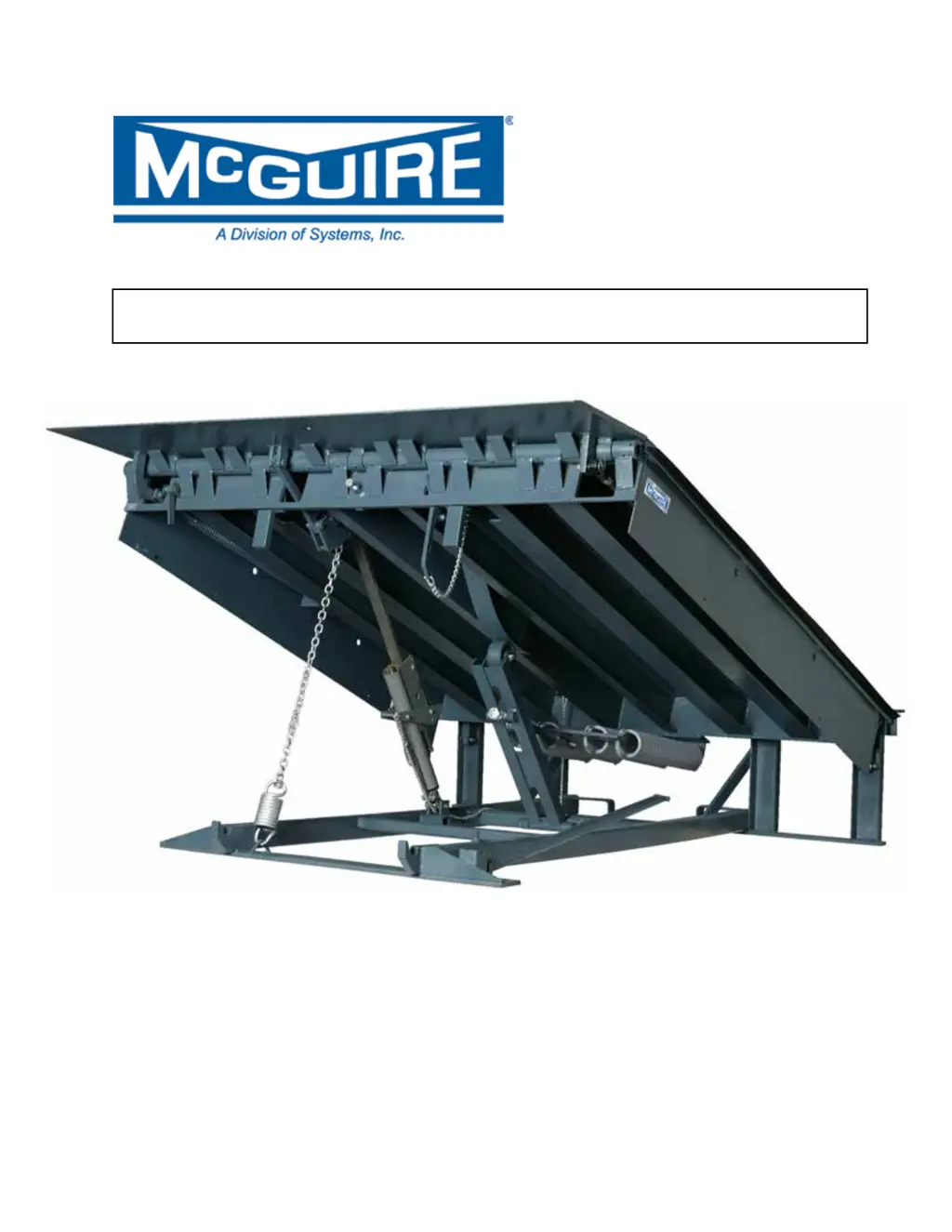

MP-Series
Dock Leveler
Owner’s/User’s Manual
Printed in U.S.A.
Copyright ©
2016
Manual No. 4111-0019
May 2015
July 2016
MCGUIRE • Division of Systems, Inc. • W194 N11481 McCormick Drive • Germantown, WI 53022
800.624.8473 • fax: 262.255.9399 • www.wbmcguire.com • techservices@docksystemsinc.com

Table of Contents

Questions and Answers

  • P
    Patrick GonzalezAug 1, 2025
    Why does the platform of my McGuire Lifting Systems rise slowly?
    • V
      Virginia ScottAug 1, 2025
      If the platform of your McGuire Lifting System rises slowly or doesn't reach its full height, start by removing any heavy objects, as the dock leveler is designed to lift only its own weight. Then, check for any obstructions that might be causing the dock leveler to bind, including the weather seal if equipped. Also, inspect the hold-down mechanism, cleaning it if necessary. Finally, the main spring tension might be insufficient, so you may need to increase it.
  • W
    williamsparksAug 5, 2025
    How to troubleshoot a McGuire MP platform that doesn't rise?
    • X
      xcarpenterAug 5, 2025
      If the platform of your McGuire Lifting System doesn't rise, first make sure there are no heavy objects on it, as it's designed to lift only its own weight. Then, check the release chain to ensure it's connected; if it's broken, replace it. Finally, inspect the dock leveler for any obstructions that might be causing it to bind, including the weather seal if equipped. If you find no obstructions, further assistance may be needed.
  • S
    scottmackAug 10, 2025
    What to do if the lip of my McGuire MP platform does not fully extend?
    • M
      Maureen MartinezAug 10, 2025
      If the platform of your McGuire Lifting System rises fully but the lip doesn't fully extend, start by checking the lip assist chain; connect it if it's disconnected, or replace it if broken. Also, the main spring tension might be insufficient, requiring an increase. Finally, you might need to increase the lip assist spring compression.
  • C
    Chad HernandezAug 13, 2025
    What causes a McGuire MP Lifting Systems platform to not stay down?
    • C
      Charles AndrewsAug 14, 2025
      If the platform of your McGuire Lifting System doesn't stay down, check for an entangled release chain and remove the cause. Inspect and clean the ratchet bar and ratchet pawl teeth, but do NOT lubricate them. Replace any broken or damaged ratchet assembly teeth, also without lubrication. Replace any disconnected or broken hold-down pivot pins. Clean and inspect the hold-down mechanism.
  • R
    Rita CarlsonAug 18, 2025
    Why does the lip fold too fast on my McGuire Lifting Systems?
    • Y
      yhuffmanAug 18, 2025
      If the lip of your McGuire Lifting System folds too fast during normal walk-down, you may need to increase the lip assist spring compression. Also, inspect the shock absorber and connect or replace the gas strut if it's disconnected, worn, or broken.
  • R
    robertgarzaAug 22, 2025
    What to do if McGuire MP platform doesn't lower when walked on?
    • T
      Tim LeeAug 22, 2025
      If the platform of your McGuire Lifting System doesn't lower when an operator walks onto it, the main spring tension may be excessive and require reduction. Also, the hold-down mechanism might be damaged or worn, so clean and inspect it.
  • M
    Michelle TrujilloAug 27, 2025
    Why doesn't the lip fold on my McGuire MP Lifting Systems after the truck leaves?
    • M
      markbrownAug 27, 2025
      If the lip of your McGuire Lifting System doesn't fold after the truck departs, inject grease into all of the lip hinge grease fittings. Also, the lip assist force might be excessive and require a decrease in lip assist spring compression.

Summary

Safety

Recognize Safety Information

Explains safety symbols and hazard level indicators (DANGER, WARNING, CAUTION).

General Operational Safety Precautions

General safety rules for operating the dock leveler and maintaining a safe work area.

Operational Safety Precautions

Specific safety measures and warnings for operating the dock leveler.

Maintenance Safety Precautions

Safety procedures and warnings specifically for maintenance activities.

Safety Decals

Illustrates and explains various safety decals found on the dock leveler.

Owners;Users Responsibilities

Introduction

General Information

Provides a general overview and congratulations on the purchase of the dock leveler.

Dock Leveler Stock Specifications

Lists available sizes, weight capacities, and options for the MP-Series dock levelers.

Component Identification

Identifies and labels various parts of the dock leveler with numbered references.

Installation

Prepare Pit

Details the steps and measurements required to prepare the installation pit.

Prepare Dock Leveler

Explains how to prepare the dock leveler for installation, including lifting brackets.

Install Dock Leveler

Illustrates the process of installing the dock leveler into the prepared pit, including shimming.

Operation

Theory

Explains the mechanical principles and operation of the MP-series dock leveler.

Operating Instructions

Provides general safety warnings and instructions for operating the dock leveler.

Ramp Loading;Unloading Instructions

Details the step-by-step procedure for ramp loading and unloading operations.

End Loading;Unloading Instructions

Explains the procedure for end loading and unloading operations.

Maintenance

Service Dock Leveler Safely

Outlines critical safety precautions for servicing the dock leveler, including lockout/tagout.

Periodic Maintenance

Lists components and procedures for regular, scheduled maintenance tasks.

Adjustments

Adjust Lift Arm Spring and Lip Assist Spring Tension

Guides users on how to adjust the tension of lift and lip assist springs.

Adjust Lip Stop Bolt

Explains the procedure for adjusting the lip stop bolt for proper lip positioning.

Troubleshooting

Troubleshooting

Provides common symptoms and their possible causes and solutions for dock leveler issues.

Parts

Hold-Down Pawl and Ratchet

Lists the part number for the Hold-Down Pawl and Ratchet Assembly.

Frame Components

Illustrates and lists various components related to the dock leveler frame.

Platform Components

Illustrates and lists various components related to the dock leveler platform.

Toe Guard;Weather Seal-Optional

Lists optional toe guard and weather seal parts for different configurations.

Miscellaneous

Customer Information

Provides fields to record dock leveler and owner information for reference.

Standard Product Warranty

Product Specific Warranty MP Series Leveler

Outlines the extended warranty specific to the MP Series leveler.
