Turn to page 11 for front pick up.
DO NOT remove the shipping bands (B) around
the platform lip and leveler frame at this time. The
shipping bands are needed to hold the leveler
together during the installation process.
NOTICE
DO NOT overtighten the lifting bracket hardware.
Overtightening can damage the weather seal, if
equipped.
10
Manual No. 4111-0019
May 2015
July 2016
INSTALLATION
McGuire dock levelers are designed with installation
in mind. Each unit is shipped with lifting brackets (A)
fastened to the platform side joists.
Prepare Dock Leveler

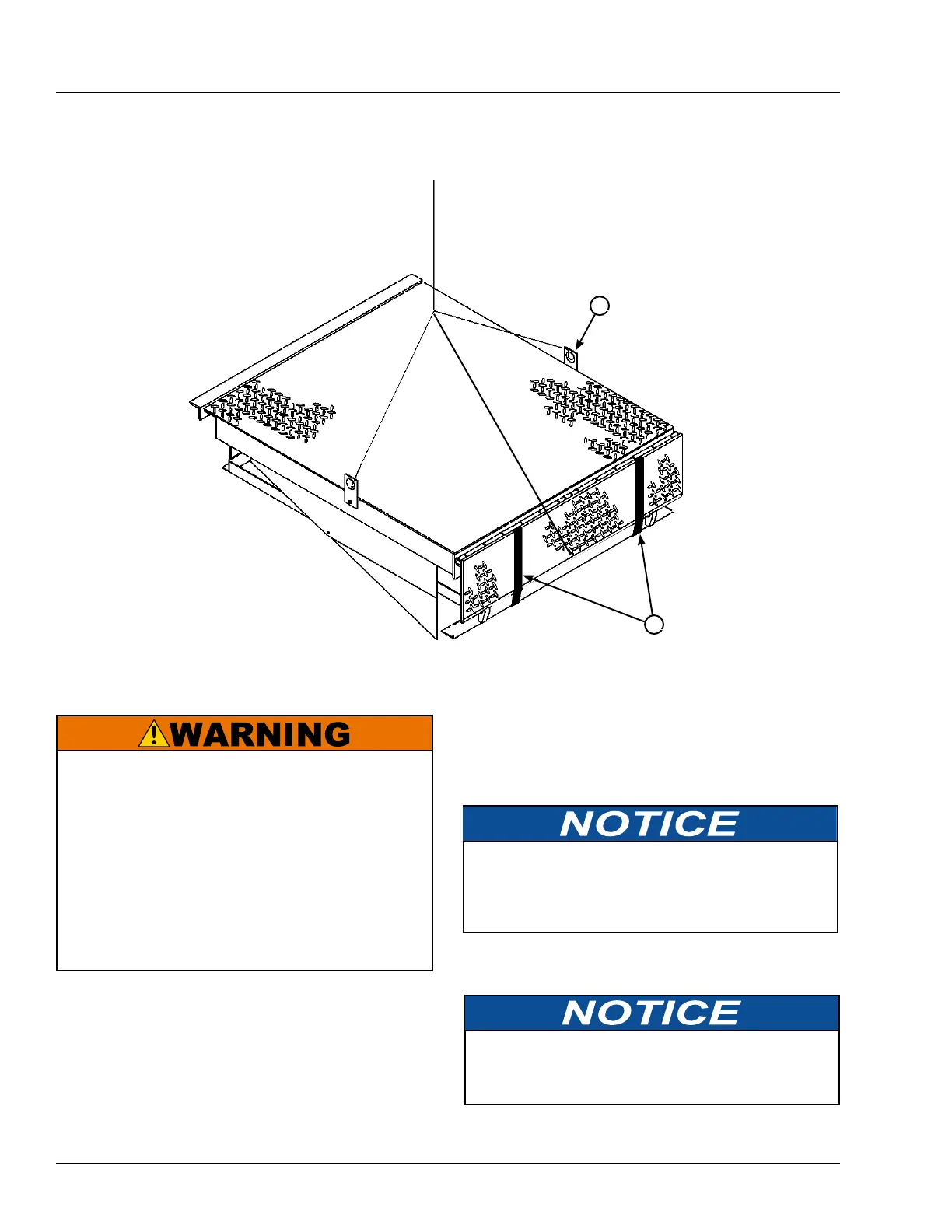

A— Lifting Bracket (2 used) B — Shipping Bands
The dock leveler is heavy. Use a lifting device and
chains with the appropriate lifting capacity and
reach.
Always use the lifting brackets provided with the
unit whenever lowering or lifting a dock leveler into
or out of a pit.
Failure to follow these instructions could result in
death or serious injury.
NOTE: A third sling may be used to
install the unit as needed.
A
B
To Next Page
