McGuire MP Series - Install Dock Leveler

12
Manual No. 4111-0019
May 2015
July 2016
INSTALLATION

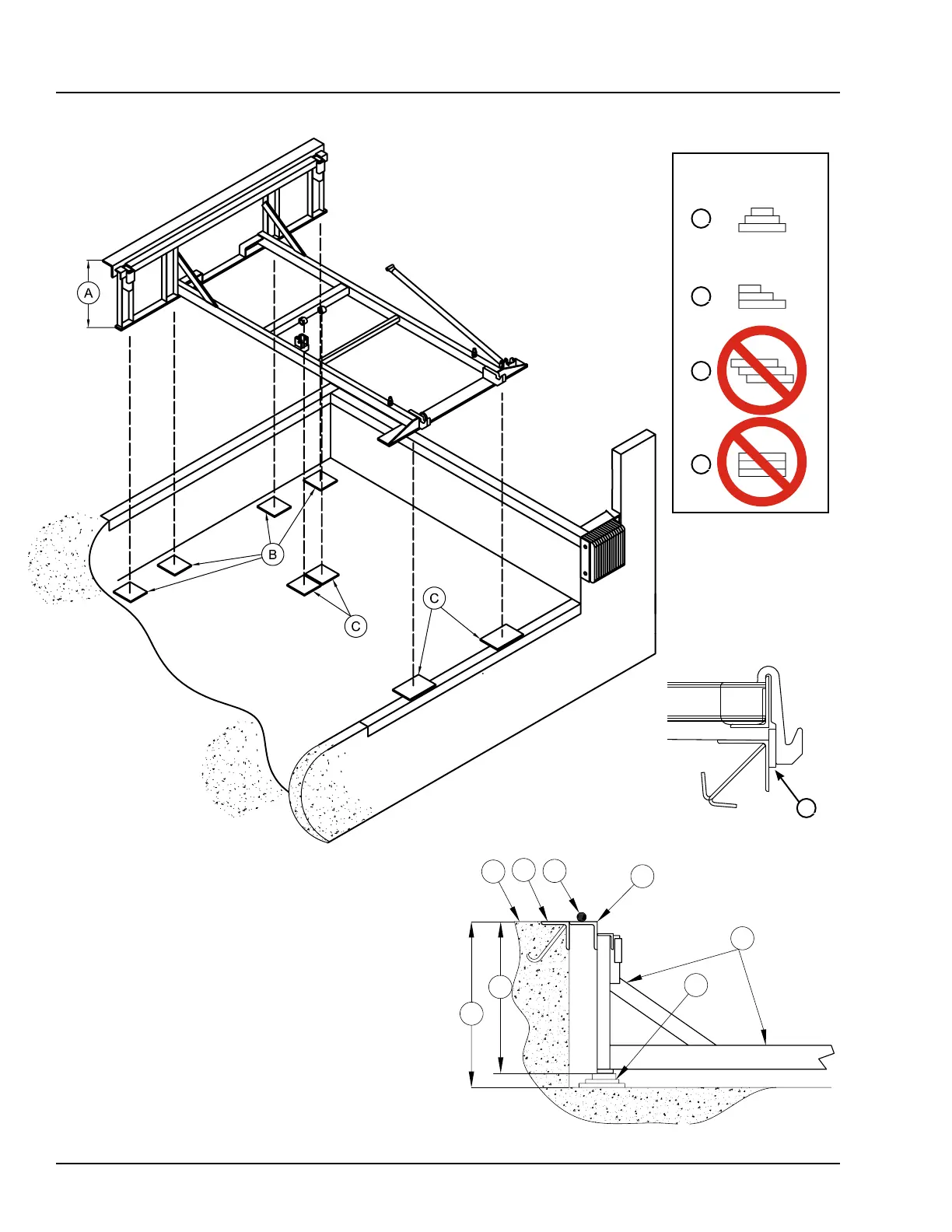

A— Distance (Leveler Frame
Height)
B— Shim Locations (Under
Rear Vertical Supports,
4-5 Places TYP)
C— Shim Locations (Under
Lip Keepers, Lifter Arm
and Prop)
D— Dock Floor
E— Rear Pit Curb Angle
F— String
G— Rear Hinge Frame Angle
H— Distance (Dock Floor-to-
Pit Floor)
J— Distance (Top of Shim
Stack-to-Dock Floor)
K— Shim Stack
L— Dock Leveler Frame
M — Pyramid (Preferred)
N— Stepped (Acceptable)
P— Offset (Not Acceptable)
Q — Straight (Not Acceptable)
R — Shim between lip keeper
curb angle when required.
Install Dock Leveler
D E F
G
L
K
J
H
R
M
N
P
Q
Shim
Stacking Methods
