MAINTENANCE
Periodic Maintenance

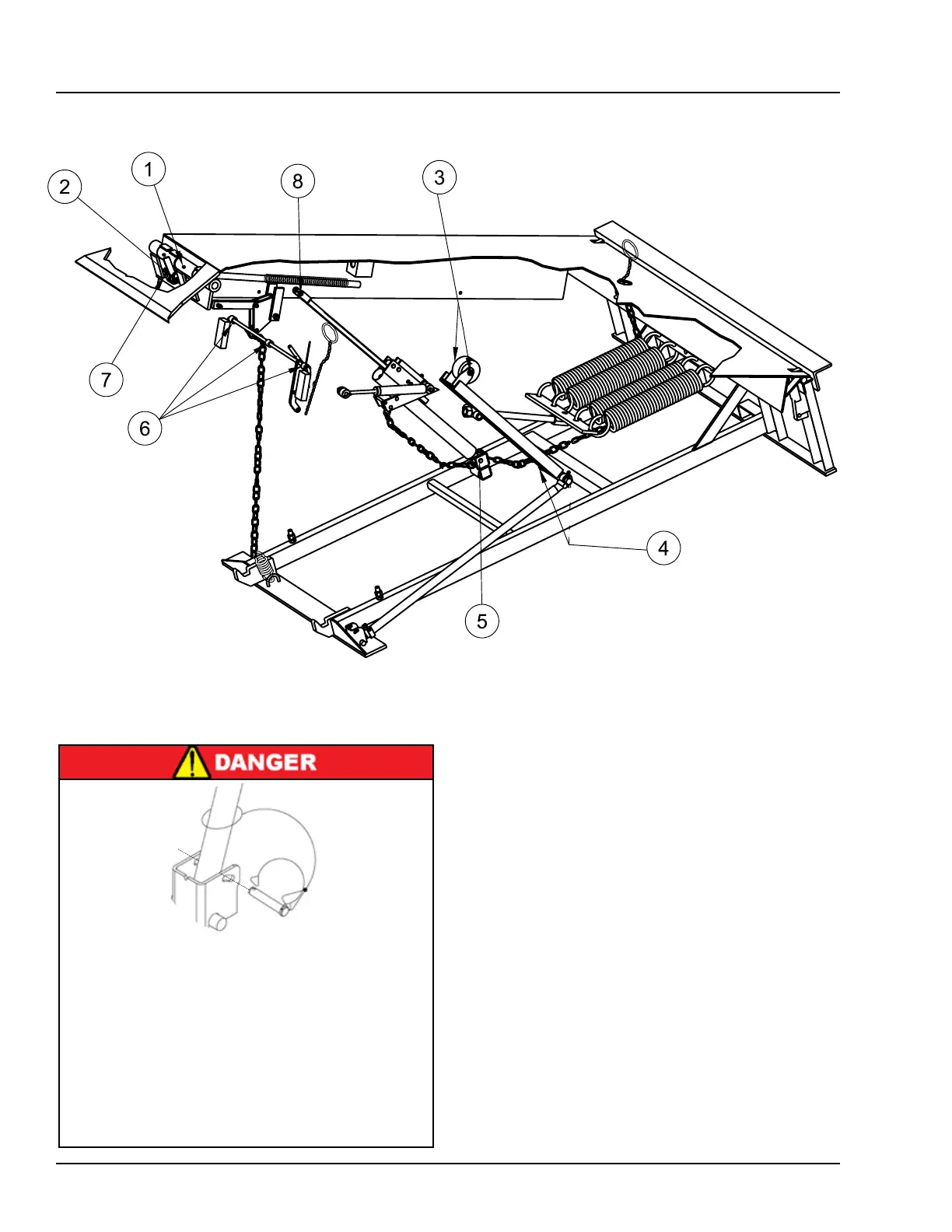

1 — Lip Hinge Grease Fittings
2 — Lip Maintenance Prop Pivot
3 — Lift Arm Roller Bushing
4 — Lift Arm Pivot
5 — Hold-Down Pivot/Pulley
6— Safety Leg Linkage Pivots
7 — Lip Lift Assist Pin
8 — Hold Down-to-Platform Pin
A maintenance prop permanently attached and
hinged to the unit with means for lock out/tag out
requirements (per OSHA 1910.147) is included with
each pit style dock leveler. In addition, it is recom-
mended and good safety practice to use an addi-
tional means to support the dock platform and lip
anytime when physically working in front of or under
the dock leveler. This additional means may include,
but not limited to a boom truck, fork truck, stabilizing
bar or equivalent. Failure to follow these instructions
will result in death or serious injury.
